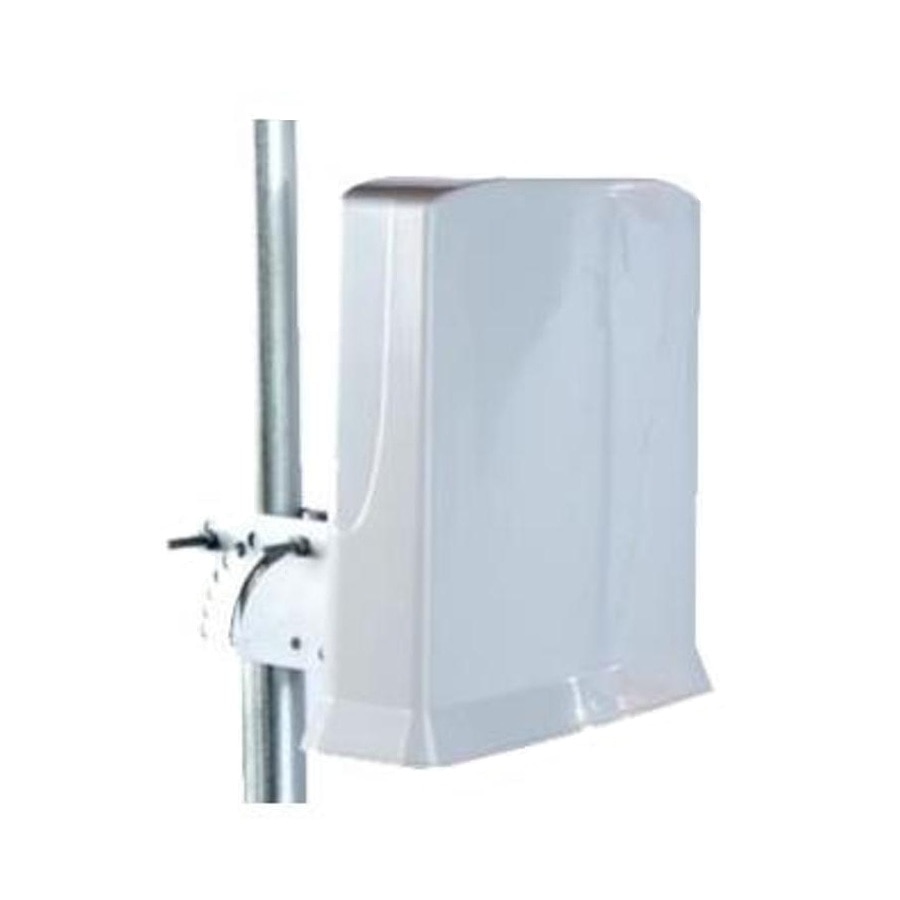

ARC Wireless Pilot 2.3-2.5GHz 16dBi ARC-IP2416S01

(0)No Reviews yet
  • SKU: ARC-IP2416S01
  • Manufacturer: Arc Wireless
  • Data Sheet: Download

Out of Stock

 Open chat or call us for stock status

Product Information

ARC Pilot 2.3-2.5GHz 16dBi ARC-IP2416S01

Features

  • Transparent cable access cover for LED viewing
  • Cost effective Integrated Plastic Enclosure Solution
  • IP-65 rated
  • Patent pending non-gasket design
  • Desktop or pole mount options
  • Low profile and rugged design for outdoor use
  • US Engineered
  • Manufactured under strict US quality control procedures

Specifications

Specifications ARC-IP2416S01

Electrical Specifications

Frequency Range2.3-2.5 GHz
Gain (Typ)16.0 dBi typical
PolarizationSingle linear, vertical
3dB Beamwidth Vertical/ Horizontal26 deg/26 deg
VSWR≤1.5:1 typical, 1.7:1 max
Front-to-Back Ratio≤30 dB
Cross Polarization≤20 dB
Power Rating6 watts
Impedance50 ohms
Lightning ProtectionDC Ground
Connector TypeR/A SMA Jack

Physical/Environmental Specifications

Length x Width x Depth11.12 in x 4.05 in x 10.49 in (28.2 cm x 10.3 cm x 26.6 cm)
Radio Area Dimensions8.62 in x 9.30 in x 1.16 in (21.9 cm x 23.6 cm x 2.95 cm)
Weight3.2 lbs (1.5 kg)
GroundplaneAluminum
RadomeUV stabilized ABS plastic, gray
Wind Survivability125mph (201kph)
Wind Load.77 ft2 (0.072 m2 )
Operating Temperature-49°F to 149°F (-45°C to 65°C)
Pole Mount Diameter1.3 in—2.0 in (3.3 cm—5.1 cm)
