- SKU: ES-48-750W
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
- Availability: 1 In Stock

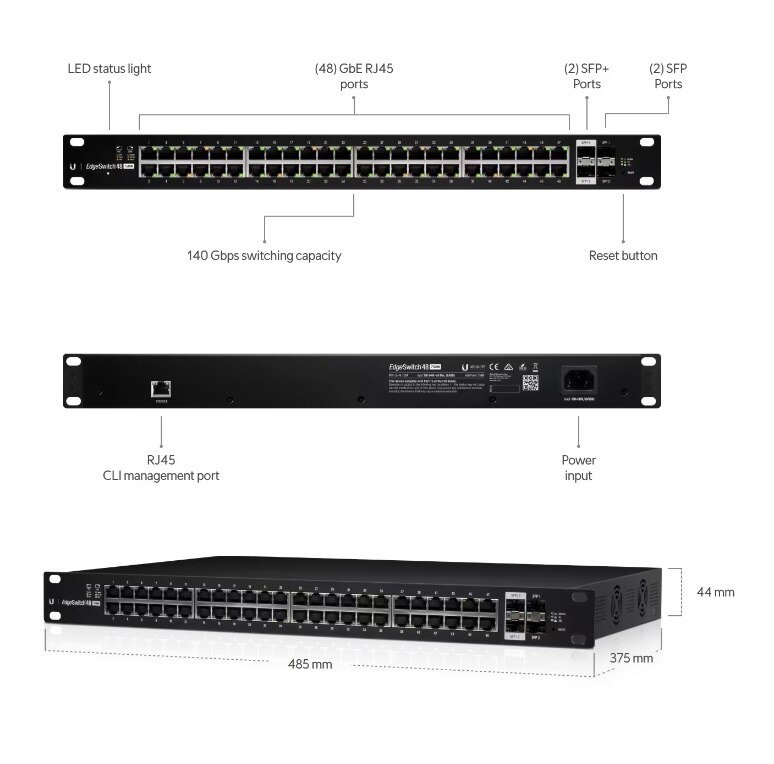

|Dimensions||485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75")|
|Weight||6.5 kg (14.3 lb)|
|Total Non-Blocking Throughput||70 Gbps|
|Switching Capacity||140 Gbps|
|Forwarding Rate||104.16 Mpps|
|Max. Power Consumption||Includes PoE Output 750W, Excludes PoE Output 64W|
|Power Method||100-240VAC/50-60 Hz, Universal Input|
|Power Supply||AC/DC, Internal, 750WDC|
|LEDs Per Port||SFP+/SFP Data Ports-Speed/Link/Activity|
|Networking Interfaces||(48) 10/100/1000 Mbps RJ45 Ethernet Ports (2) 1/10 Gbps SFP+ Ethernet Ports (2) 1 Gbps SFP Ethernet Ports|
|Management Interface||(1) RJ45 Serial Port, Ethernet In/Out Band|
|Certifications||CE, FCC, IC|
|Rackmount||Yes, 1U High|
|ESD/EMP Protection||Air: ± 24 kV, Contact: ± 24 kV|
|Operating Temperature||-5 to 40° C (23 to 104° F)|
|Operating Humidity||5 to 95% Noncondensing|
|Shock and Vibration||ETSI300-019-1.4 Standard|

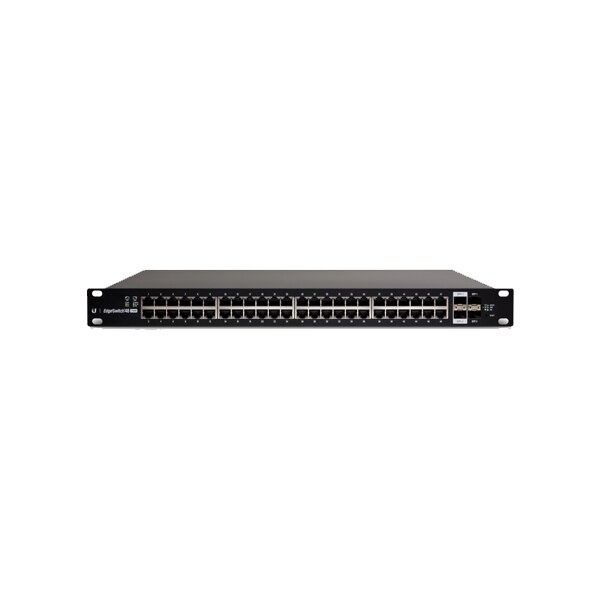

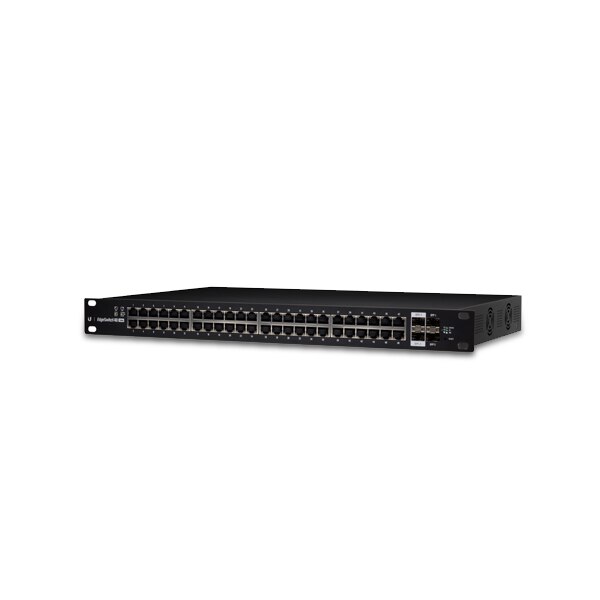

Ubiquiti Networks EdgeSwitch ES-48-750W
Managed PoE+ Gigabit Switches With SFP
Build and expand your network with Ubiquiti Networks® EdgeSwitch™, part of the EdgeMAX® line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.
Powerful Enterprise Switch Models
The EdgeSwitch™ delivers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. Total non-blocking throughput: up to 26 Gbps for 24-port models and up to 70 Gbps for 48-port models.
The EdgeSwitch™ supports an extensive suite of advanced Layer-2 switching features and protocols, and also provides Layer-3 routing capability.
Optical Fiber Backhaul
Two SFP ports support uplinks of up to 1 Gbps. For high-capacity uplinks, each 48-port model includes two SFP+ ports for uplinks of up to 10 Gbps.
Convenient PoE+ Support
The EdgeSwitch™ features auto-sensing IEEE 802.3af/at and 24V passive PoE to power multiple devices on the network.
The comprehensive UI is easy to learn and allows administrators to configure and monitor features in a graphical user interface. For advanced users, a Command-Line Interface (CLI) is available through telnet and SSH.
