ITELITE Radio Antenna 900 MHz 2x10 dBi Dual-Pol
- SKU: SRA0910DP
- Manufacturer: ITElite
- Data Sheet: Download
Product Information

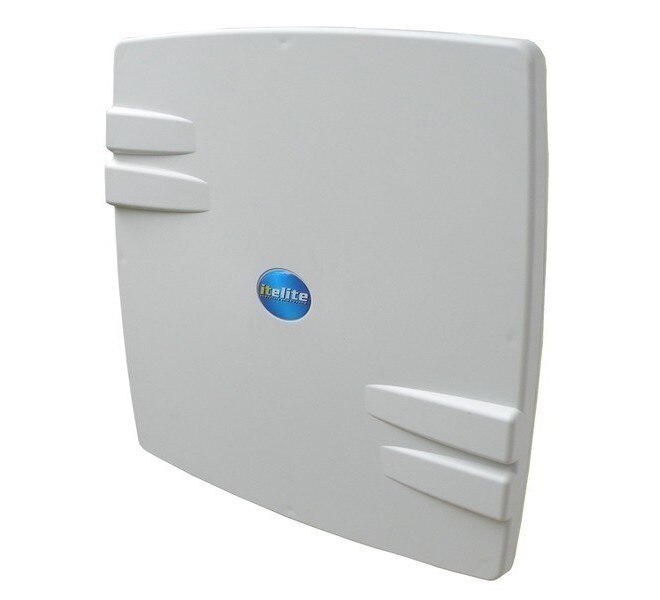

ITELITE SRA0910DP Radio Antenna 900 MHz 2x10 dBi Dual-Pol

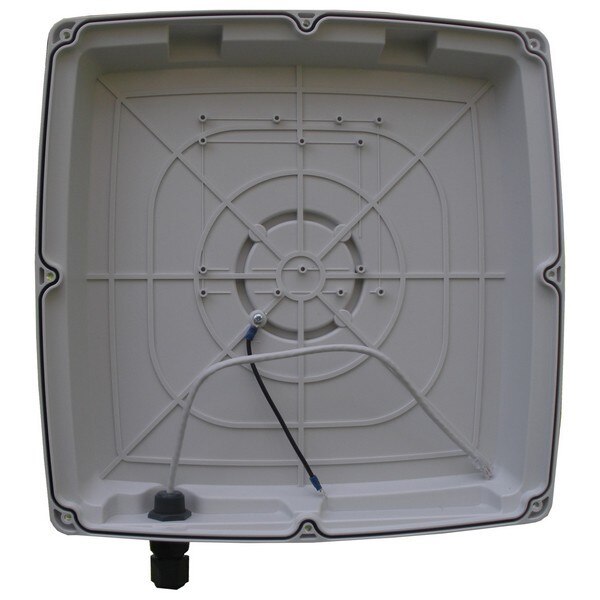

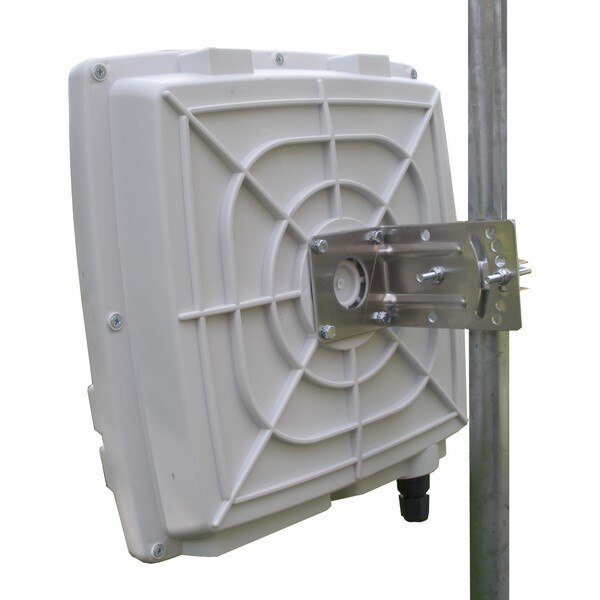

Antenna with multipurpose enclosure working in 900 MHz band with two independent directional panel antennas with 10 dBi gain with vertical and horizontal polarization. The range includes weatherproof outdoor enclosure with panel antenna and enough compartment for RouterBoard or any other electronic equipment. Enclosure is furnished with special RJ-45 waterproof ethernet connector with an easy connection to Internet Network and PoE. Perfectly designed for operation under severe weather conditions. Proper materials allow operation in the salty water environment without corrosion. High quality construction of pole mounting elements guarantee easy elevation and easy tilt down as well as rock-stable operation. It can be used as customer premise equipment and also as a base stations. Inside the enclosure there are suitable posts for all Mikrotik Routerboards, mounting for Ubiquiti Rocket and for other radios.
Specifications
Specifications SRA0910DP
| Electrical Properties | |
| Frequency | 900 - 928 MHz |
| Gain | 2x10dBi |
| Polarization | dual H&V |
| Beamwidth deg horizontal | 55° |
| Beamwidth deg vertical | 60° |
| VSWR | <2 |
| Impedance | 50 ohm |
| Front to back ratio | > 35 dB |
| Port Isolation | > 45 dB |
| Lightning protection: | Microstrip |
| Enclosure Properties | |
| Technology: | UV protected |
| Material: | Grey |
| Min temperature: | -40°C / -40°F |
| Max temperature: | 80°C / 176°F |
| Mechanical Properties | |
| Compatible with: | RB411, RB433 and RB600 series |
| Input Connector | 2xUFL pigtail (or MMCX optional) |

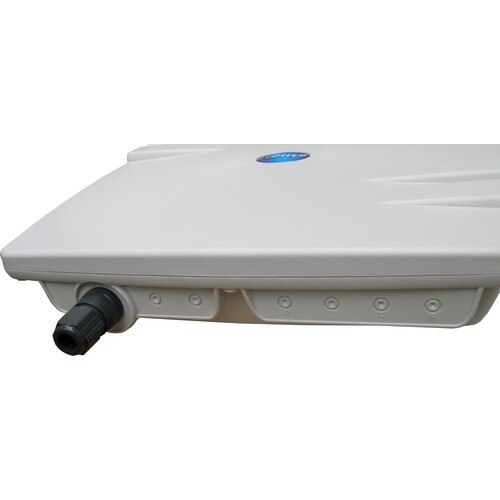

| Enclosure Connector | Waterproof Ethernet Connector RJ45 (or cable gland optional) |
| Outsite Dimensions | 385x385x80mm / |
| Weight | 2.4kg / 5.3lbs |
