ITELITE Radio Antennas 5.1 GHz 23 dBi H/V-Pol

(0)No Reviews yet
  • SKU: SRA50023
  • Manufacturer: ITElite
  • Data Sheet: Download

Out of Stock

Direct Ship Item

Product Information

ITELITE SRA50023 Radio Antennas 5.1 GHz 23 dBi H/V-Pol

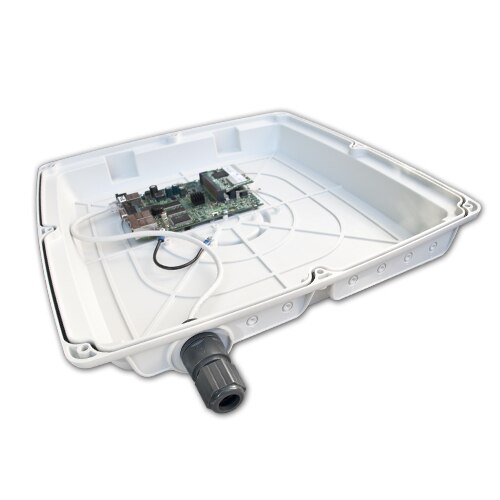

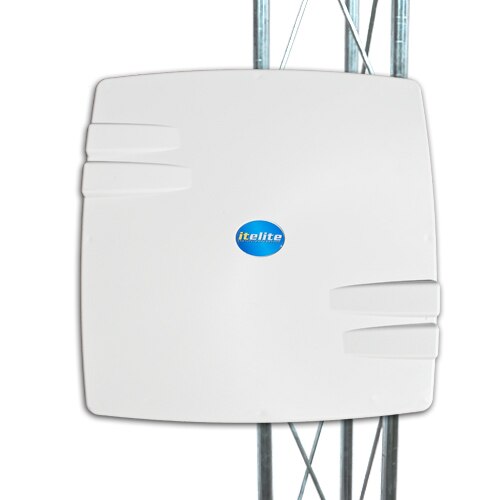

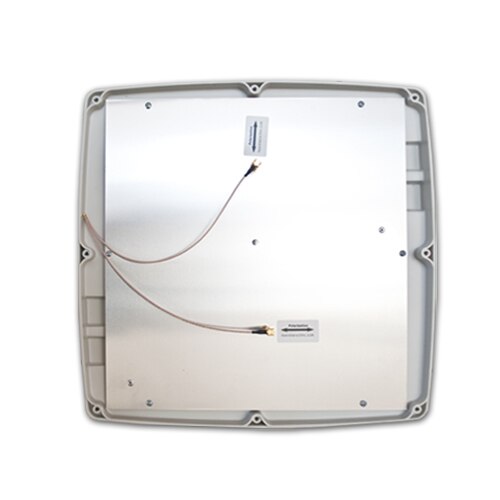

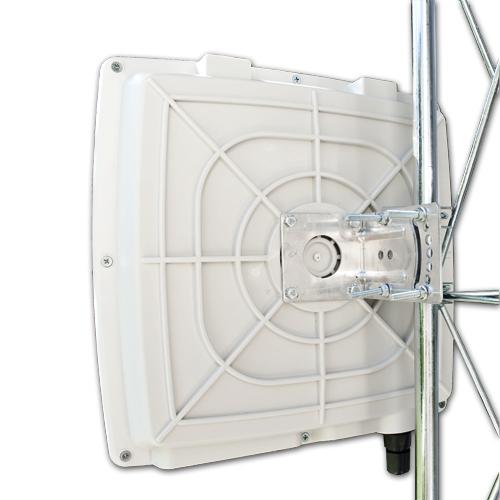

Antenna with integrated enclosure working in 5 GHz band with 23 dBi gain that can be mounted for horizontal or vertical polarization. The range includes weatherproof outdoor enclosure with panel antenna and enough compartment for RouterBoard or any other electronic equipment. Enclosure is furnished with special RJ-45 waterproof ethernet connector with an easy connection to Internet Network and PoE. Perfectly designed for operation under severe weather conditions. Proper materials allow operation in the salty water environment without corrosion. High quality construction of pole mounting elements guarantee easy elevation and easy tilt down as well as rock-stable operation. It can be used as customer premise equipment and also as a base stations. Inside the enclosure there are suitable posts for all Mikrotik Routerboards, mounting for Ubiquiti Rocket and for other radios.

Specifications

Specifications SRA50023

Electrical Properties
Frequency 5.1 - 5.9 GHz
Gain 23dBi
Polarization horizontal or vertical
Beamwidth deg horizontal 10°
Beamwidth deg vertical 10°
VSWR<1.4
Impedance50 ohm
Front to back ratio > 34 dB
Lightning protection: DC ground
Enclosure Properties
Technology: Microstrip
Material:UV protected
Colour:Grey
Min temperature: -40°C / -40°F
Max temperature:80°C / 176°F
Mechanical Properties
Compatible with: RB411 and RB433 series
Input ConnectorUFL, MMCX, RPSMA
Enclosure ConnectorWaterproof Ethernet Connector RJ45 (or cable gland optional)
Outside Dimensions 385x385x80mm /
Weight2.4kg / 5.3lbs
