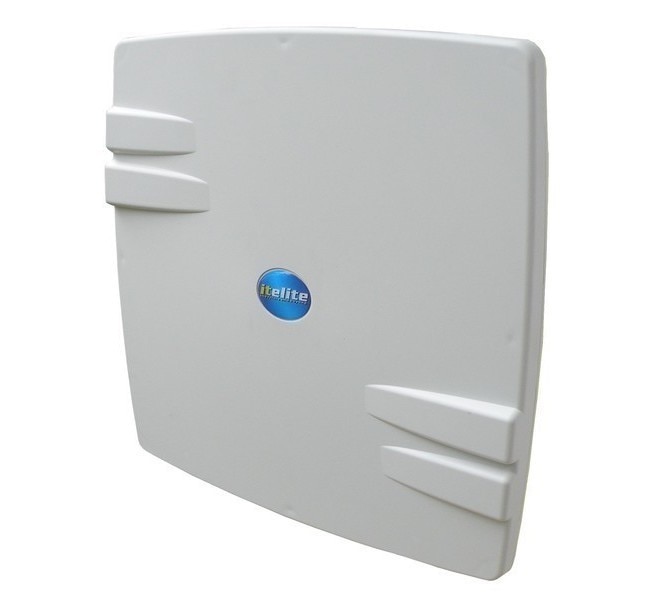

ITELITE Radio Antenna, 5 GHz, 3x19 dBi, 3x3 MIMO
- SKU: SRA5019-3X3
- Manufacturer: ITElite
- Data Sheet: Download
Product Information
Itelite SRA50019_3x3MIMO Radio Antenna, 5 GHz, 3x19 dBi, 3x3 MIMO

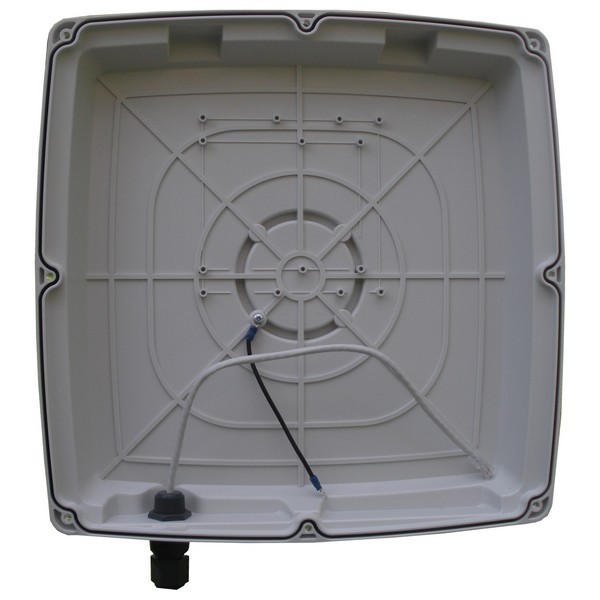

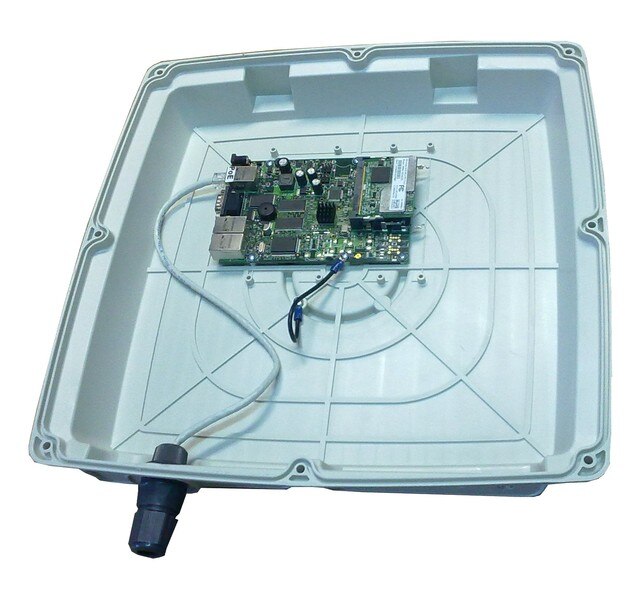

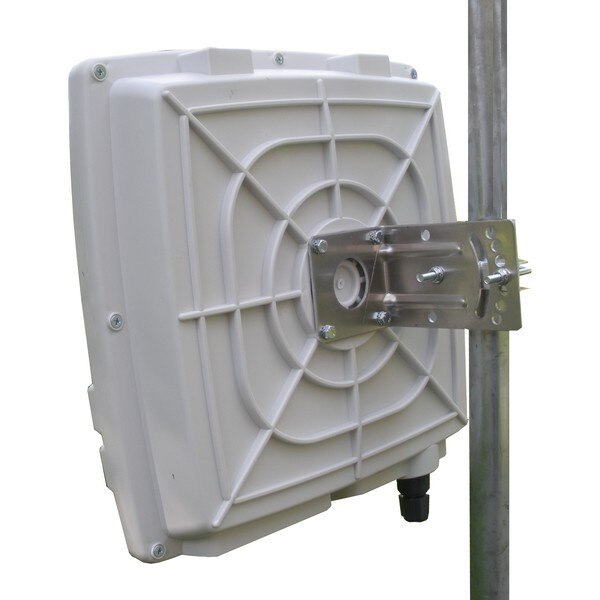

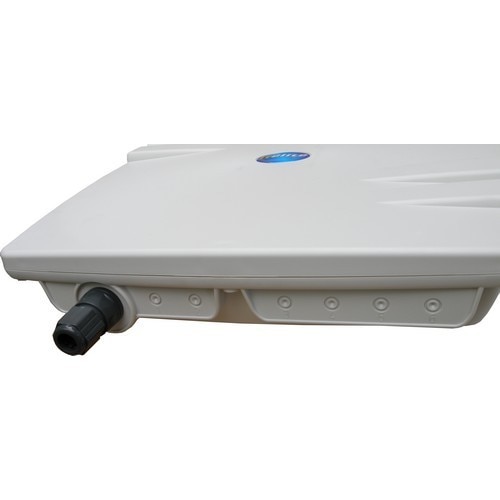

Antenna with multipurpose enclosure working in 5 GHz band with three independent directional panel antennas with 19 dBi gain with vertical and horizontal polarizations. It is the ideal solution for 3x3 MIMO configuration. The range includes weatherproof outdoor enclosure with panel antenna and enough compartment for RouterBoard or any other electronic equipment. Enclosure is furnished with special RJ-45 waterproof ethernet connector with an easy connection to Internet Network and PoE. Perfectly designed for operation under severe weather conditions. Proper materials allow operation in the salty water environment without corrosion. High quality construction of pole mounting elements guarantee easy elevation and easy tilt down as well as rock-stable operation. It can be used as customer premise equipment and also as small base stations. Inside the enclosure are suitable posts for Mikrotik RouterBOARDS 411, 433 and 600 series.
Specifications
Specifications SRA5019-3X3
| Electrical Properties | |
| Frequency | 5.1 - 5.9 GHz |
| Gain | 3x19dBi |
| Polarization | 3x3 MIMO |
| Beamwidth deg horizontal | 20° |
| Beamwidth deg vertical | 20° |
| VSWR | <1.8 |
| Impedance | 50 ohm |
| Front to back ratio | > 35 dB |
| Port Isolation | > 45 dB |
| Lightning protection | DC ground |
| Enclosure Properties | |
| Technology | Microstrip |
| Material | UV protected |
| Colour | Grey |
| Min temperature | -40°C / -40°F |
| Max temperature | 80°C / 176°F |
| Mechanical Properties | |
| Compatible with | RB411, RB433 and RB600 series |
| Input Connector | 4x pigtail UFL, MMCX or RPSMA |
| Enclosure Connector | Waterproof Ethernet Connector RJ45 (or cable gland optional) |
| Outside Dimensions | 385x385x80mm / 15.15x15.15x3.15" |
| Weight | 2.4kg / 5.3lbs |
