KP Performance 3 GHz 18 dBi Dual Pol ±45 Degrees Slant 65 Degree Sector Antenna

(0)No Reviews yet
US$‎290.69 US$‎305.99
  • SKU: KP-3DP65S-45
  • Manufacturer: KP Performance
  • Data Sheet: Download
  • Installation Guide:Download

Out of Stock

99 in stock
Lewisville TX
99 In stock

Product Information

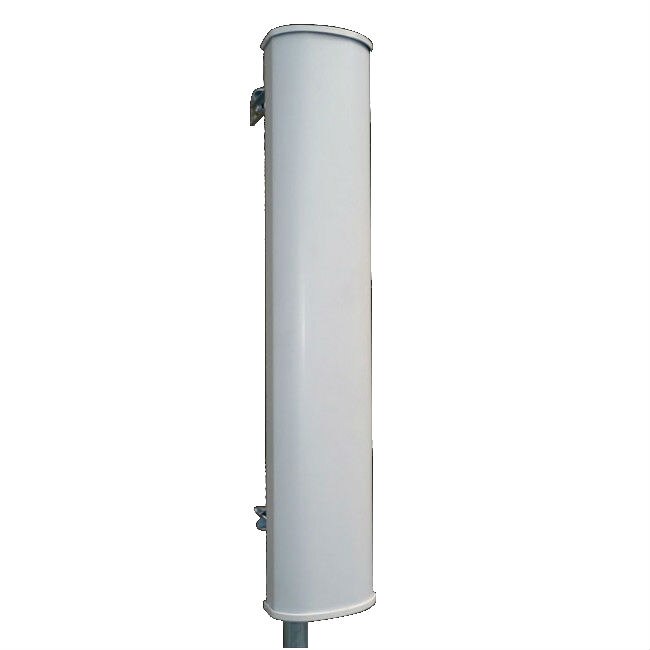

KP Performance KP-3DP65S-45

3 GHz 18 dBi Dual Pol ±45 Degrees Slant 65 Degree Sector Antenna

The KP Performance KP-3DP65S-45 is a 3 GHz ±45 Degree Slant, Dual Pol 18 dBi, 65 Degree Sector Antenna with two type-N connectors. This 3 GHz sector antenna is specifically designed for customers deploying 45 degree slant radios.

These sector antennas come with heavy duty mounting brackets with an easy-attach system and stainless steel hardware. These 3 GHz sectors have an exceptional F/B ratio and designed for channel reusability on towers between sectors.


Features:

  • Functional mounting bracket.
  • Stainless steel hardware.
  • Cost effective Antenna solution with radio casing attached

Specifications

Specifications KP-3DP65S-45

Frequency3300-3800 MHz
Polarization Type± ­45 degree slant
Gain18 dBi
Beamwidth H/V65°/6.5°
Electrical Downtilt3.5° - 4°
Cross Polar Ratio> 25 dB
F/B Ratio> 35 - 40 dB
V/H Port Isolation> 25 dB
Input Power50 W
Return Loss> 14 typ
VSWR< 1.5:1
Input Impedance50 Ohms
Connector TypeType N Female x 2
Operating Temperature-40° to +60° C / +140° F
Length, Product29''
Width, Product7''
Height, Product3.5''
Rated Wind Velocity240N @ 160km/h | 54 lbf @ 100mph
UV ProtectionUV resistant powder coat
Ingress ProtectionIP55 rain and dust resistant
Weight, Product10 lbs
Mounting MethodCarriage bolts
Surface FinishMatte powder coat
