MikroTik RouterBOARD RBcAPL-2nD cAP Lite

2.4Ghz AP CAP lite with RouterOS L4, indoor case

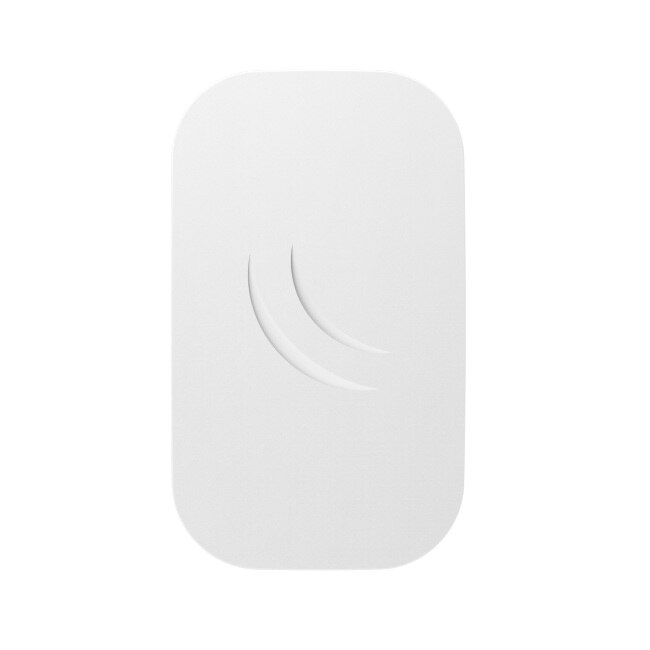

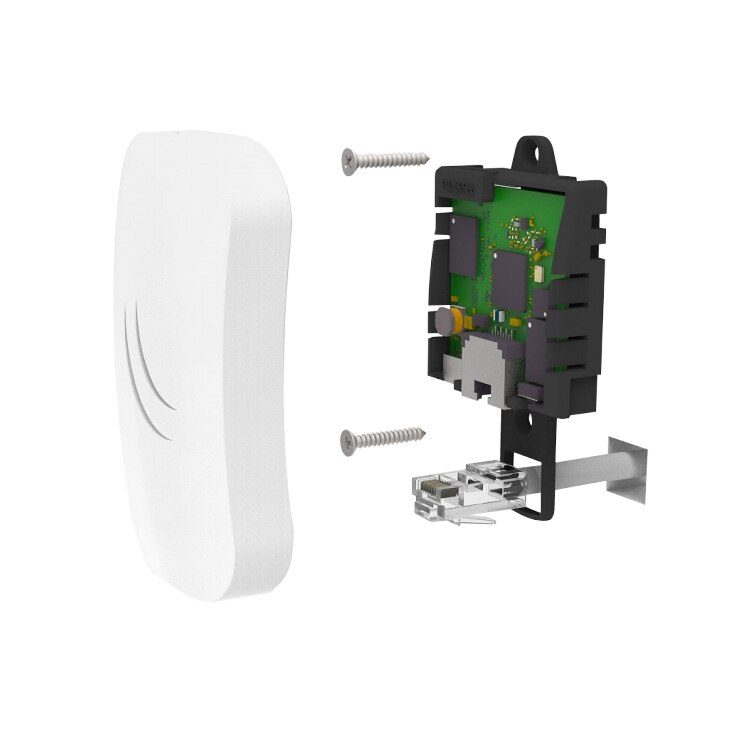

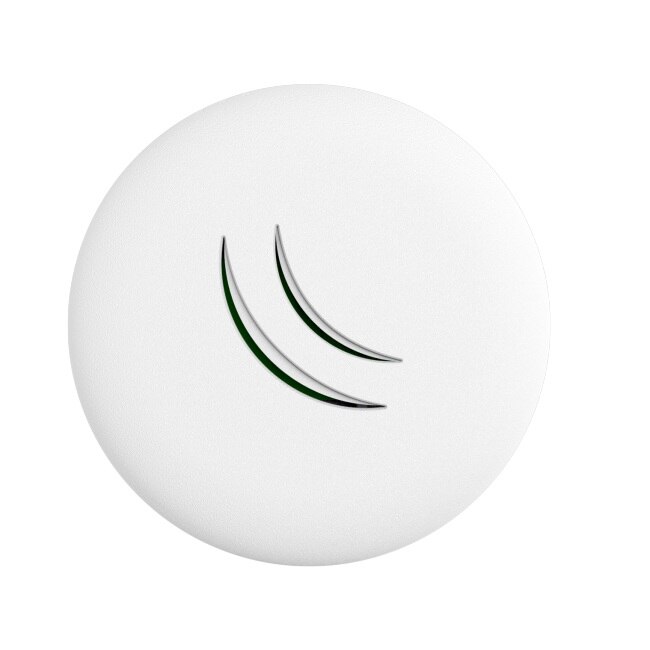

The cAP lite is a tiny access point device, perfect for public locations and hospitality businesses like hotels, airports, shopping malls etc. Included with the product are two different casings, which can easily be swapped out, or, if you really like to fit the design with the environment, we are providing 3D printer friendly design files.

The cAP lite supports 802.11b/g/n and can be powered by power over ethernet. It’s a perfect companion for the MikroTik CAPsMAN (controlled AP system manager), allowing you to control all your AP devices from one central location. The cAP lite can also be used as a stand alone access point with the full potential of RouterOS.

Specifications

Specifications RBcAPL-2nD

Product codeRBcAPL-2nD
CPUQCA9533
CPU nominal frequency650 MHz
CPU core count1
Size of RAM64 MB
10/100 Ethernet ports1
WirelessBuilt-in 2.4 GHz 802.11b/g/n, dual-chain
Antenna gain1.5 dBi
Antenna beam width360°
Wireless chip modelQCA9533
PoE inYes
Supported input voltage5 V - 60 V (jack, 802.3af/at or passive PoE)
Operating temperature-40°C .. +70°C tested
DimensionsWall case: 88 x 52 x 20 mm Ceiling case: ⌀88 mm x 20 mm
License level4
Operating SystemRouterOS
Max Power consumption4 W

Wireless Specifications

RATETx (dBm)Rx (dBm)
1MBit/s22-96
11MBit/s22-89
6MBit/s20-93
54MBit/s18-74
MCS020-93
MCS716-71
