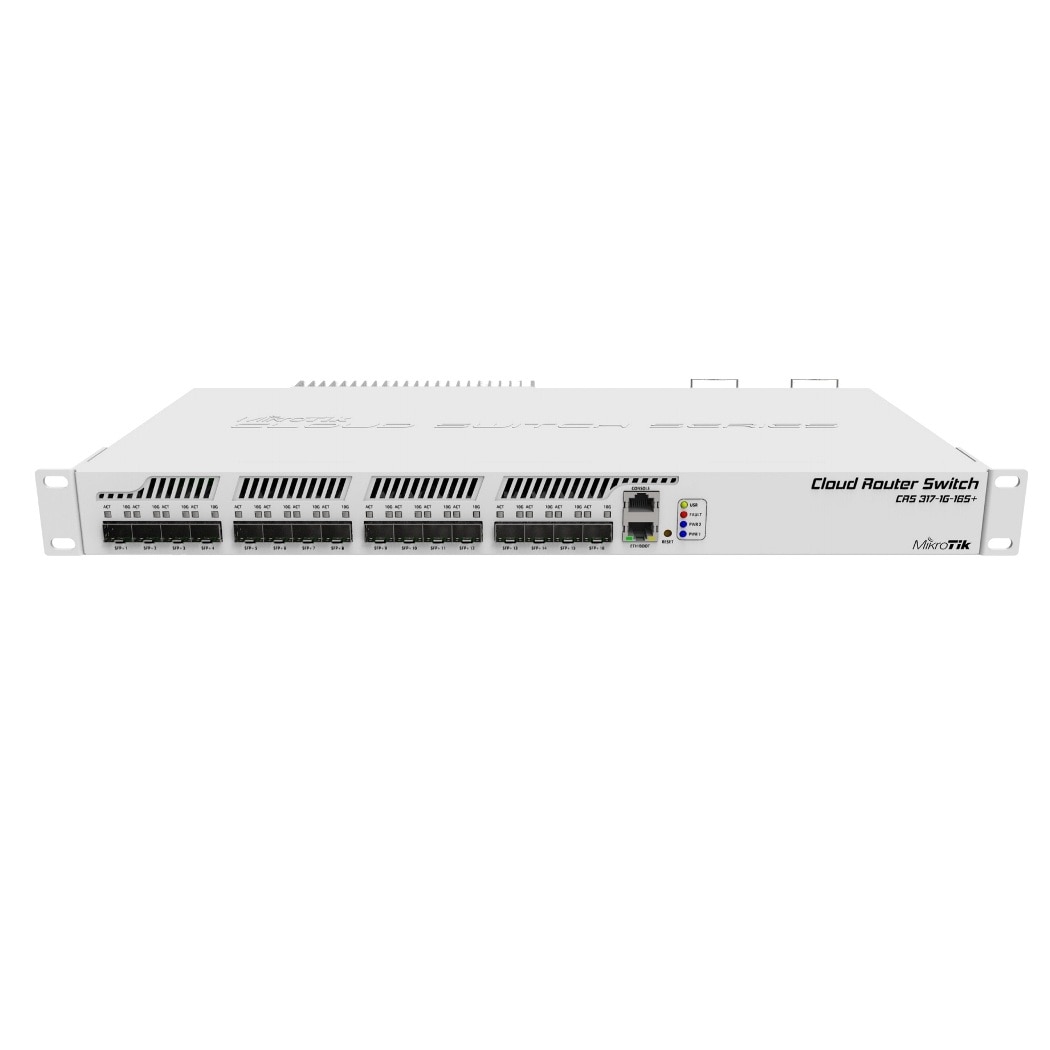

MikroTik RouterBOARD CRS317-1G-16S+RM
MikroTik Cloud Router Switch with 16 x SFP+ cages
The new Cloud Router Switch 317-1G-16S+RM is a rack-mountable manageable switch with Layer3 features. It has 16 SFP+ ports for high performance 10GbE connectivity and a 1GbE copper port for management.
CRS317-1G-16S+RM is powered by a next generation switching chip, giving you wire speed performance for all sixteen 10GbE ports with any Ethernet frame size. New features such as hardware-based Spanning Tree Protocol and Link Aggregation (LACP) provide enhanced protection and true professional performance for your demanding network.

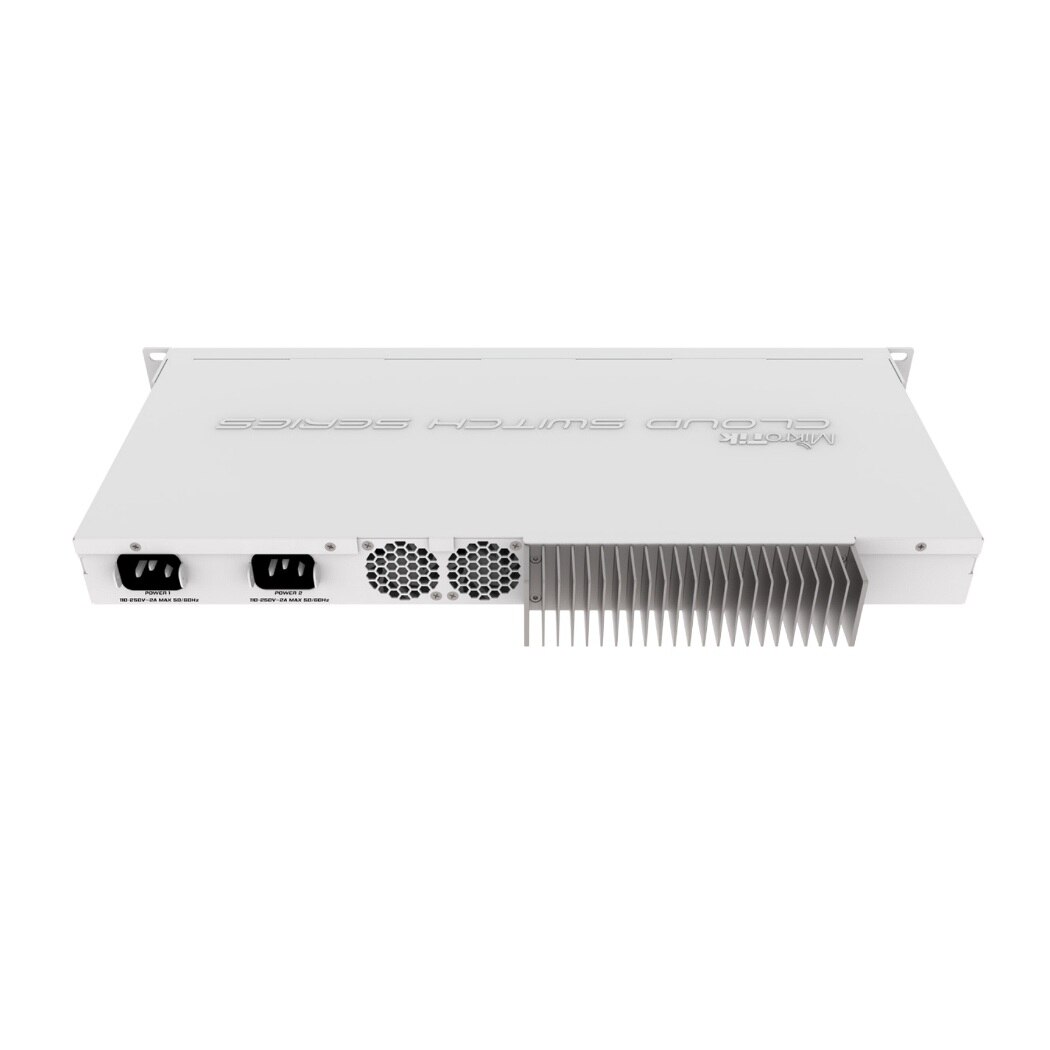

The unit has dual redundant power supplies and passive cooling case, so it’s completely silent - for hot environments two redundant fans will automatically keep the system cool if needed.
Features:
- Slots 16 on the insert SFP +
- Compatibility with both inserts SFP + and SFP
- Efficient switch chip
- Processor clocked at 800 MHz
- 1 GB of RAM;
- Dual boot - RouterOS and SwitchOS systems.
Specifications
Specifications CRS317-1G-16S+RM
| CPU | 98DX8216B0 800 MHz |
| Size of RAM | 1 GB |
| Storage type | Flash |
| Storage size | 16 MB |
| SFP+ | 16 (supports both 1.25 Gb SFP and 10 Gb SFP+ modules; modules are not included), DDMI support |
| Dimensions | 443 x 224 x 44 mm |
| License level | 6 |
| Operating System | RouterOS or SwitchOS |
| Number of AC inputs | 2 |
| AC input range | 110 - 240 V |
| Redundant supply | Yes |
| Max Power consumption | 42 W |
| Active case cooling | Yes |
| CPU temperature monitor | Yes |
| Operating temperature | -40 to 70° C |
| LEDs | 38 |
| Serial port | RJ45 |
