Mimosa J-Mount for most under-roof eave mounting applications
US$15.00
Tariff/Surcharge Fee: US$0.75
- SKU: J-Mount 100-00043
- Manufacturer: Mimosa Networks
- Data Sheet:Download
Product Information

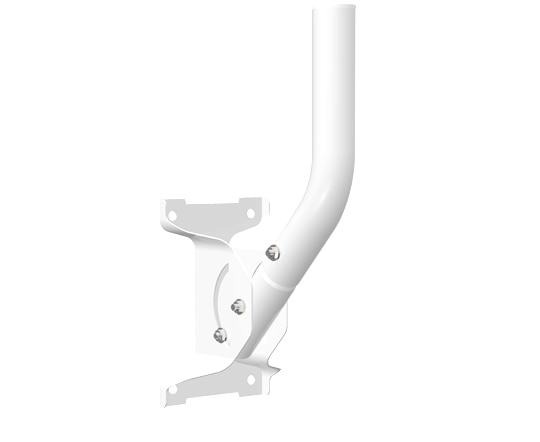

Advanced J-Mount
The Mimosa Advanced J-Mount accessory accommodates most under roof eave mounting applications. With an extra axis of rotation to align the C5 and keep it level to the horizon, the J-Mount provides three degrees of rotation for elevation, azimuth and pole twist adjustment for precise aiming.
The Mimosa Advanced J-Mount accessory accommodates most under roof eave mounting applications. With an extra axis of rotation to align the C5 and keep it level to the horizon, the J-Mount provides three degrees of rotation for elevation, azimuth and pole twist adjustment for precise aiming.
Specifications
Specifications J-Mount
| Weight | 0.96 kg (33.8 oz) |
| Mounting Base | 355 mm (14") |
| Pole Outside Diameter | 38 mm (1.5") |
| Mounting Options | Surface mount with four screw hole points |
| Assembly | Pre-assembled with a white powder coated finish. Includes four (4) 6.35 mm (0.25") lag bolts. Pipe/hose clamps not included |
| Part Number | 100-00043 |
