PC Engines ALIX 256MB, 3LAN, 1mPCI, USB +RTC Battery
US$117.00
- SKU: ALIX2D13
- Manufacturer: PC Engines
Product Information

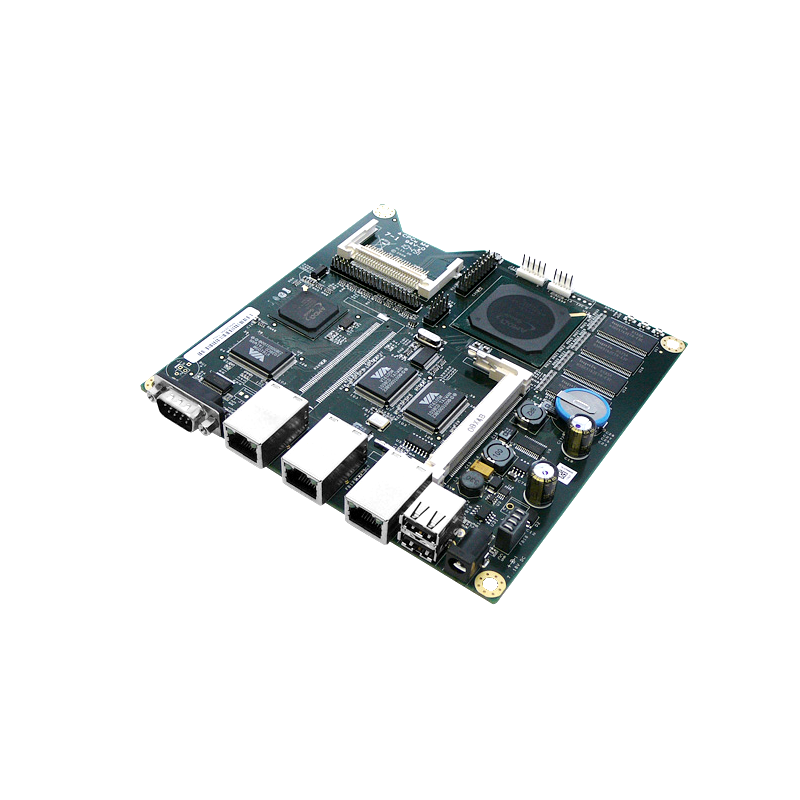

PC Engines ALIX2D13
PC Engines ALIX 256MB 3LAN /1mPCI/USB +RTC Battery
The ALIX system platform by PC Engines provides network OEMs a cost-effective platform for distributing value-added software, such as wireless routers and access points, firewalls, load balancers, VPN, industrial Ethernet, or other special purpose network devices.
- Applications:Applications include thin clients, kiosks, industrial user interface, wireless access points, mesh networks, firewalls, etc.
- Compatible with:Linux, FreeBSD, NetBSD, OpenBSD, FreeDOS, OpenWRT, Mikrotik RouterOS, IPFire Firewall, Debian for Alix, Ubuntu, Meteohub
Specifications
Specifications ALIX2D13
| Processor (CPU) | 500 MHz AMD Geode LX800 |
| DRAM | 256 MB DDR DRAM |
| Storage | CompactFlash socket, 44 pin IDE header |
| Power | DC jack or passive POE, min. 7V to max. 20V |
| Expansion | 1 miniPCI slot, LPC bus |
| Connectivity | 3 Ethernet channels (Via VT6105M 10/100) |
| Ethernet Ports | 3 Ethernet channels (Via VT6105M 10/100) |
| I/O | DB9 serial port, dual USB port |
| Board size | 6 x 6" (152.4 x 152.4 mm) - same as WRAP.1E |
| Monitoring | Three front panel LEDs, pushbutton |
| Display Port | None |
| Firmware | tinyBIOS |
