Poynting 2dBi GSM Omni Antenna

(0)No Reviews yet
  • SKU: AT-OMNI39-GSM
  • Manufacturer: Poynting
  • Data Sheet: Download
8 in stock
College Station
8 In stock

Product Information

Poynting AT-OMNI39-GSM

Poynting 2db GSM Operating Frequency: 790 – 960, 1710 – 2170 and 2500 – 2700 MHz Bands

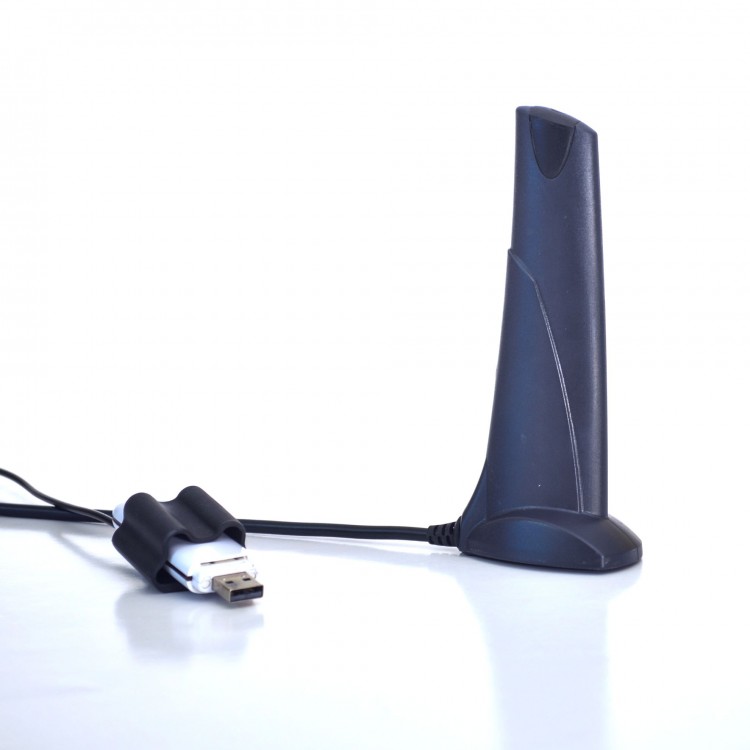

This is an aesthetically pleasing all-band cellular antenna for general indoor and outdoor cellular applications. The linear polarised antenna has a compact design and magnet mounting making it suitable for mobile applications as well. It is ideal for machine to machine (M2M) applications that are communicating through the mobile network (GPRS / EDGE / 3G /HSPA/LTE). This antenna exceeds the performance of a standard monopole for the following reasons: It is ground plane independent, it uses high qualitylow-loss cable, it is a dipole, not a monopole.

Specifications

Specifications AT-OMNI39-GSM

Electrical

Frequency Bands790 - 960 MHz
Gain (Max)2.3 dB
VSWR<2.5:1
Feed Power Handling10 W
Input impedance50 Ohm (nominal)
PolarisationLinear Vertica
Cable lossOptional Cable dependant
DC ShortYes

Environmental

Wind SurvivalMagnetic Mount. Not for vehicle use
Temperature Range (Operating)-40°C to +70°C
Environmental ConditionsOutdoor/Indoor
Operating Relative HumidityUp to 98%
Storage Temperature-40°C to +70°C

Mechanical

Dimensions (l x w x d)150 mm x 60 mm x 40mm
Weight110 g
ColourBlack
