Primus Cable CAT5E 8x8 RJ45 Modular Plug for Round Solid / Stranded Cable, 2Prong, 50u (UL)
US$0.14
- SKU: CN1-009-8CUL
- Manufacturer: Primus Cable
- Data Sheet: Download
Product Information

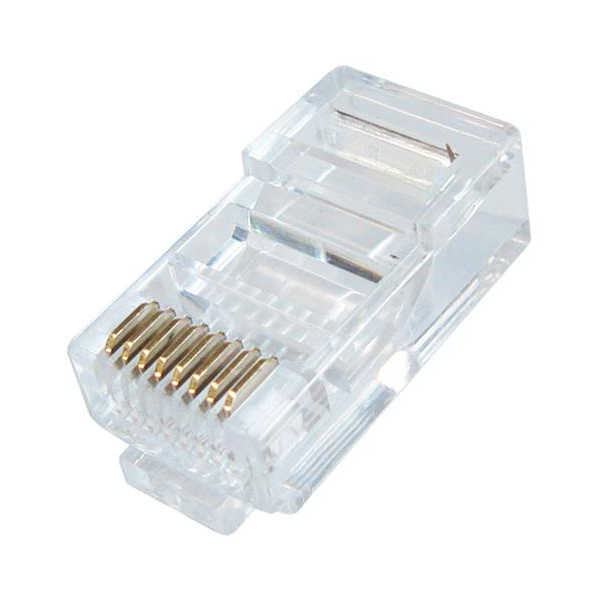

Primus Cable CN1-009-8CUL
RJ45 Connector for Solid and Stranded CAT5E Cable
Even with something so small, getting the right RJ45 Plug can be difficult. At Primus Cable, we want to get you exactly what you need—large or small. We have high standards—these are our most standard CAT5E plugs, and they’re high quality. These CAT5E RJ45 connectors work with solid or stranded cable. If you’re making your own patch cable or working with coupler jacks throughout your network, the RJ45 connectors are exactly what you need—the contacts are gold plated and they are 8 pin, 8 conductor (8px8c).
Features:
- Gold Plated Contacts
- Stranded or Solid CAT5E Cable
- Our Top-Selling Connector
Specifications
Specifications CN1-009-8CUL
| Cable-to-Plug Tensile Strength | 20 Pound Min. |
| Durability | 200 Matting Cycles |
| Housing | Polycarbonate, UL94V-0 |
| Color | Transparent |
| Contact Blade | Copper Alloy |
| Conductor | Stranded & Solid Wire, 24 - 26 AWG (Plug Can Be Used For Wire OD’s of 0.96 - 1.02 mm) |
| Gold Plating | 50µ” |
| UL Applications | 250 Volts ACMax., at 2 AMPS |
| Dielectric with Standing Voltage | 500 Volts AC |
| Insulation Resistance | 100 M Ω |
