RF Elements StationBox Classic Outdoor Enclosure with 5GHz 20dBi Antenna
US$9.97 US$16.90
- SKU: SBX520
- Manufacturer: RF Elements
- Data Sheet: Download
Product Information
RF Elements SBX520
StationBox Classic Outdoor Enclosure with 5GHz 20dBi Antenna

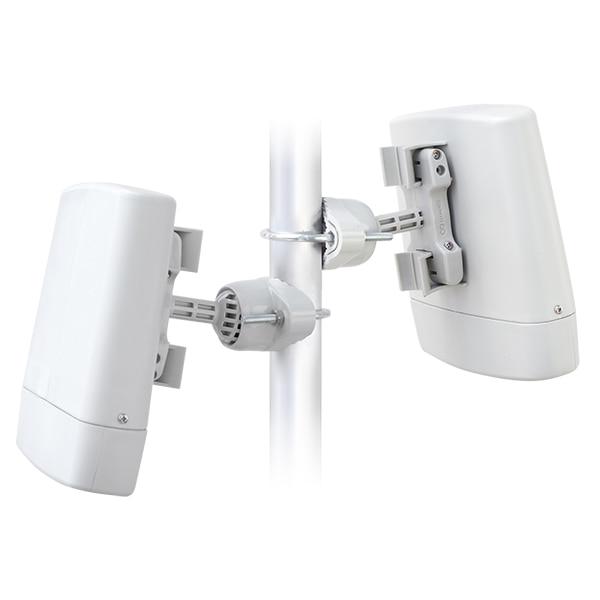

StationBox Classic is universal outdoor enclosure applicable for various boards, incl. MikroTik RB411, RB711, RouterStation and RouterStation Pro, TP-link, Wiligear and many others. Boards are installed using plastic spacers and metal screws.
Weather Resistant Design

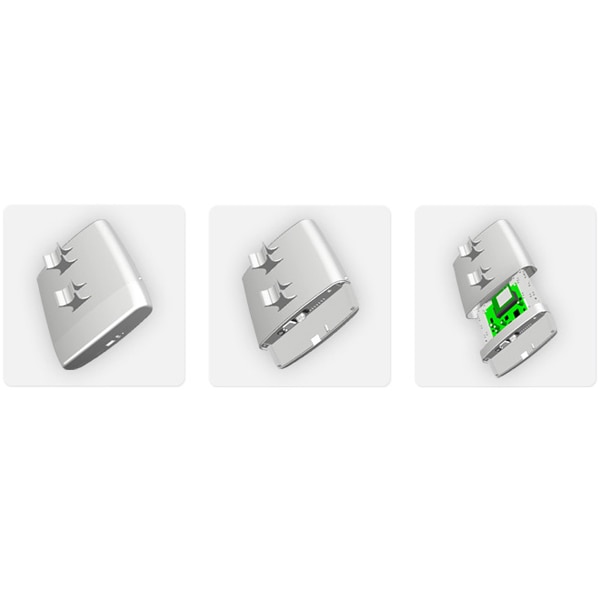

StationBox Classic is cost effective and durable solution, design of the box is utilitarian. Enclosure is designed to be naturally water resistant. During the maintenance operations, the Top cover remains mounted in the position. This ensures easy maintenance, while direction to the opposite side of the link remains untouched.
Specifications
Specifications SBX520
| Frequency Range: | 4900-6100MHz |
| Gain: | 20dBi (5,45-5,85GHz) |
| Polarization: | Single, Horizontal or Vertical |
| Horizontal Beam Width: | 15,4° |
| Vertical Beam Width: | 16,6° |
| Impedance: | 50Ohm |
| Max. Input Power: | 2W |
| VSWR: | max 1,5 |
| Antenna Connector: | MMCX |
