Rohn 25G130R060 25G TOWER KIT, 130 MPH, NI, 60'
- SKU: 25G130R060
- Manufacturer: Rohn
- Availability: Direct Ship Item Item Ships direct form Manufacturer, Lead times vary. Please call for exact lead time.
Specifications ROHN 25G130R060
|Section weight||40 pounds|
|Anchor footings||(3)1'6" x 4' x 6', (1.33 cu. yds.)|
|Base footing||2'6" x 2'6" x 4', (1 cu. yd.)|
|Windload capacity, 110 MPH (Revision F)||9.8 sq. ft.|
|Windload capacity, 110 MPH (Revision G, Exp. B)||9.7 sq. ft.|
|Windload capacity, 110 MPH (Revision G, Exp. C)||7.2 sq. ft.|
|Package weight||385 pounds|
ROHN 25G130R060 Complete 60 Foot 130 MPH (REV. G) 110 MPH (REV. F) Guyed Tower

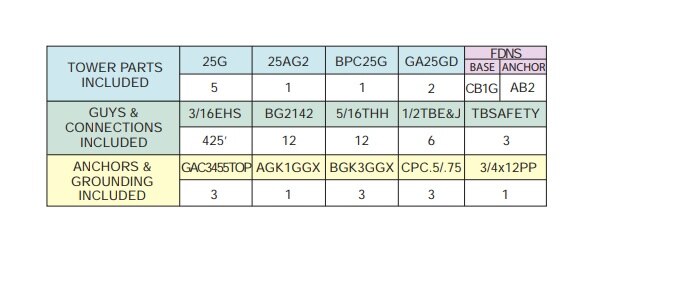

This Product Order Supplies the Following BOM (Less Foundation and Installation) in accordance for Use as a 60 Foot ROHN 25G Tower with EPA's (Effective Projected Area) Ratings for 130 MPH (REV. G) or 110 MPH (REV. F). Refer to Larger Image for EPA Information. (5) 25G (1) 25AG2 (1) BPC25G (2) GA25GD (425') 3/16EHS (12) BG2142 (12) 5/16THH (6) 1/2TBE&J (3) TBSAFETY (3) GAC3455TOP (1) AGK1GGX (3) BGK3GGX (3) CPC.5/.75 (1) 3/4x12PP This 25G Tower is to be used in a Guyed Configuration according to Specifications in the ROHN Catalog. As a Guyed Structure, a 130 MPH rated Tower can rise to a maximum of 100 feet. Refer to ROHN catalog for Foundation and Grounding Detail Information. Consult ROHN Catalog Links at Footer Section at Bottom of Page for more ROHN 25G Tower Details.
