Rohn Wall Mount 4" (For 1-1/4" - 2-3/4" Mast)
US$37.40 US$44.00
- SKU: WM4
- Manufacturer: Rohn
- Data Sheet: Download
Product Information
Rohn WM4 Wall Mount 4" (For 1-1/4" - 2-3/4" Mast)

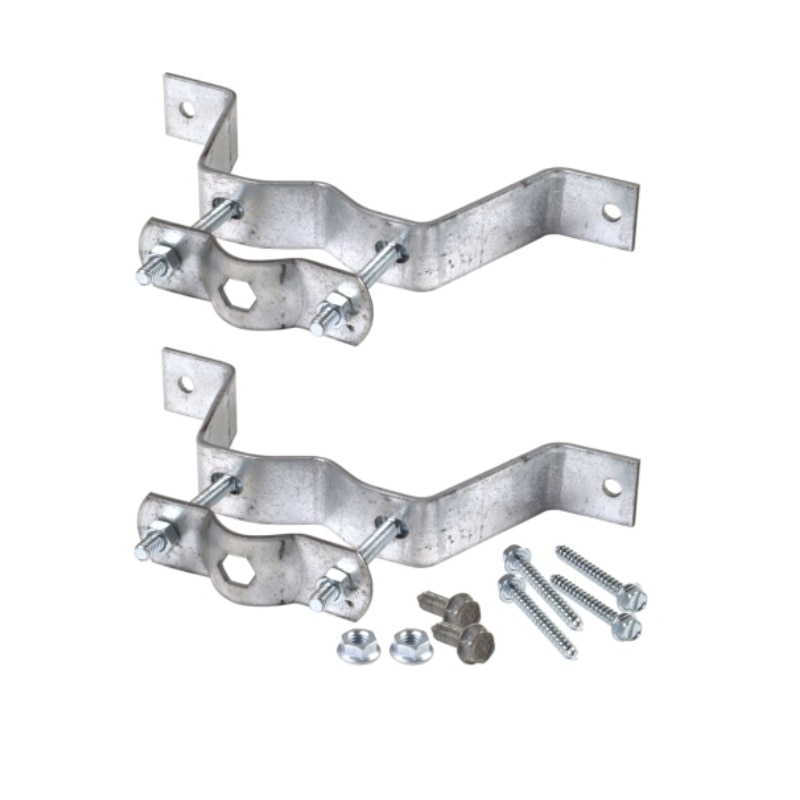

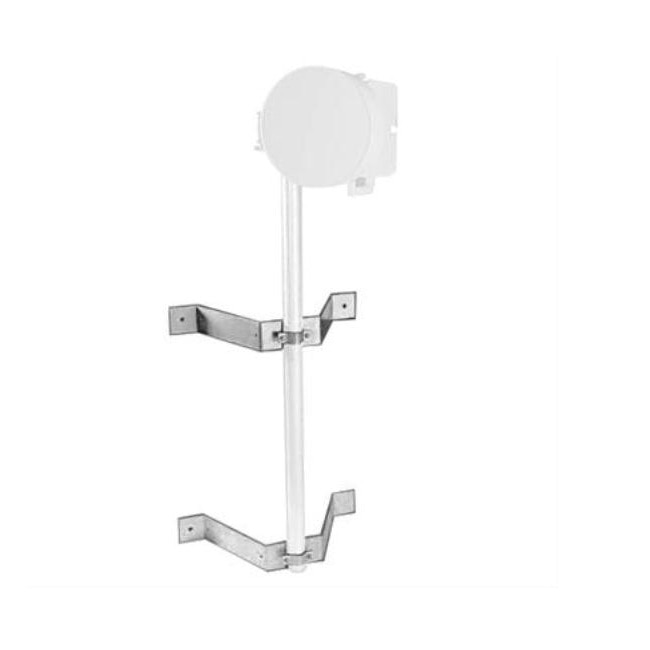

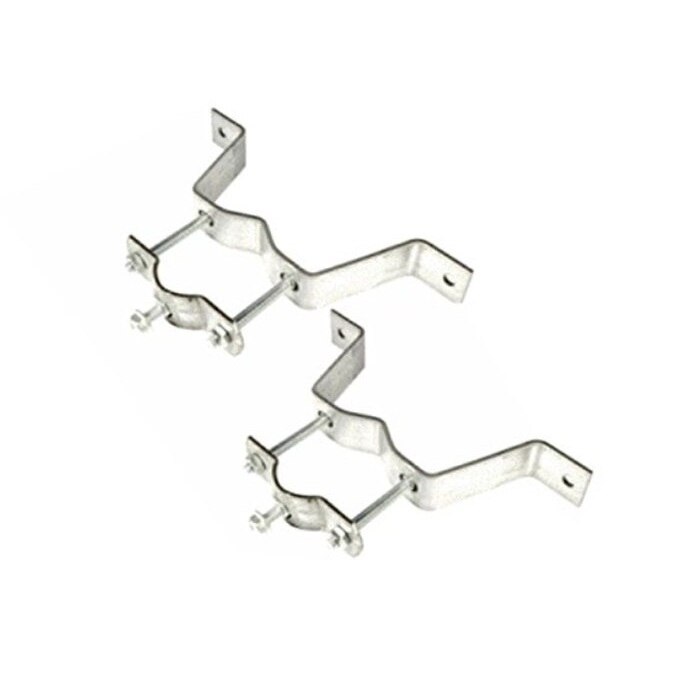

Rohn 4" clearance galvanized wall mount. Includes upper and lower bracket. Will support mast up to 2-3/4" O.D. and installs using up to 5/16"x1-3/4" bolts.
ROHN Mast Wall Mounts can be used on masonry, wood, metal, and other types of walls using up to 1/4 in. diameter lag screws or bolts. These mounts employ rugged steel brackets for extra support and rigidity.
Features:
- Heavy Duty Galvanized Steel Wall Mount Provides 3" Clearance To The Wall.
- Masts Are Held In Place With A Unique 'Anti-Twist' Locking Screw.
- Clamp Accepts 7/8" To 2-3/4" Od Mast Tubes. Will Stand Off Any Antenna Mast Within This Diameter Range
- This Mount Includes (4) 1/4" Diameter X 2" Long Lag Screws For Mounting.
- Hot-Dip Galvanized For Corrosion Protection.
Specifications
Specifications Rohn WM4
| Brand | ROHN |
| Part Type | Mast Wall Brackets |
| Wall Clearance | 3.000 in |
| Mast Clamp Size Range | 0.875-2.750 in |
| Pipe Wall Mount Type | Standoff |
| Pipe size | 7/8" to 2-1/2" OD round mast |
| Standoff | 4" |
| Depth | 4" |
| Width | 1.5" |
