Shireen DC-2022 1000ft, Outdoor Double Shield Cat6
US$440.00 US$446.50
- SKU: DC-2022
- Manufacturer: Shireen
- Data Sheet: Download
Product Information
Shireen DC-2022 1000ft, Outdoor Double Shield Cat6

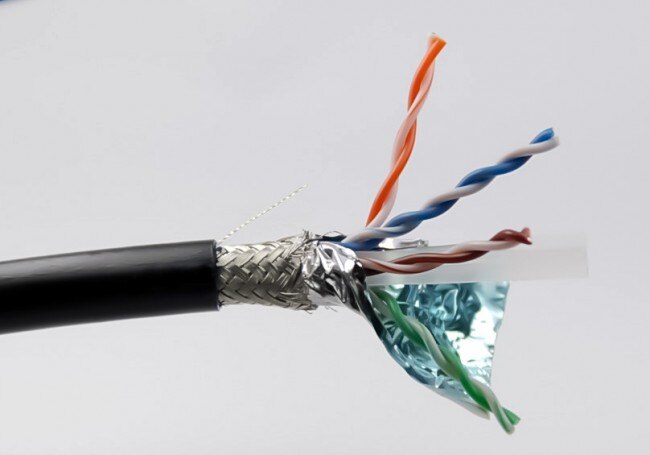

Shireen's DC-2022 is a high quality, outdoor UV Rated S/FTP, double shielded CAT6 cable. It features 4 twisted pairs of 23 AWG wire with Aluminum foil shielding. Excellent for use in all outdoor networking, data transfer and phone lines applications. It supports 10/100/1000Mbps.
- Outer Jacket:LDPE
- Ethernet Cable Type:Cat6
- Ethernet Cable Application:Burial, Outdoor, Tower
- Ethernet Cable Features:S/FTP, Double Shielded, (1) Mylar Aluminium Foil Shield, FTP, (2) Aluminium Coated Copper Braid /95% Coverage
- Dimensions (WxLxH): 14 x 14 x 13
- Weight: 52 Lb
Specifications
Specifications DC-2022
Conductor
Pairs | 4 |
Total Conductor | 8 |
AWG | 23 |
Dia. of Conductor | Φ 0.57±0.02mm |
Material | Solid Bare Copper |
Insulation
Material | HDPE - Polyethylene |
Nom. Thickness | 0.26mm |
Dia. | Φ 1.10±0.05mm |
Shielding
Vertical Wrap | Al-Mylar Tape 0.055×18mm |
Coverage % | 95% |
Braiding | Φ 0.12 x 192 |
Material | Tinned Copper |
Coverage % | 95% ± 3% |
Outer Sheath
Material | LDPE |
Rip Cord | 200Dx3 |
Thickness | 0.75±0.05mm |
Dia. | Φ 7.70±0.30mm |
