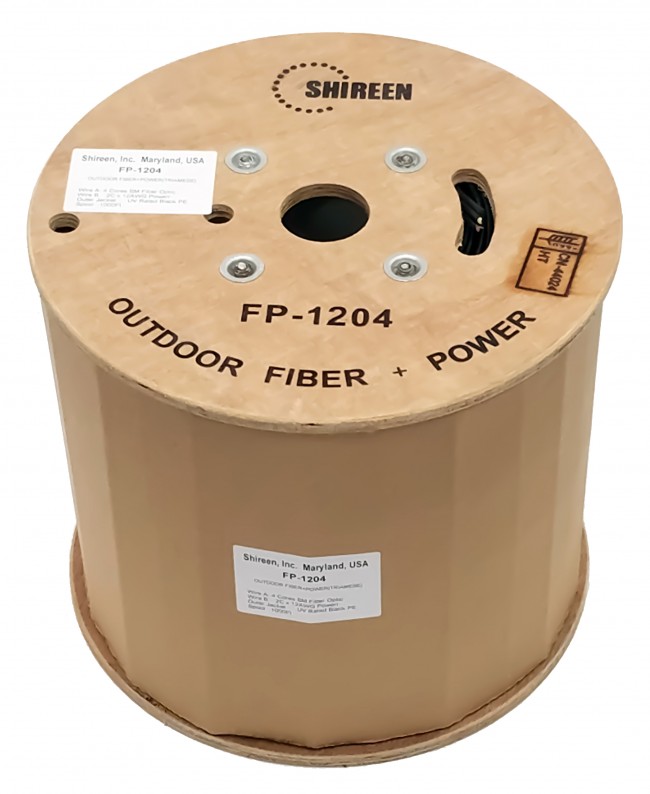

Shireen Fiber & Power Triamese Cable - 1000ft Spool
US$820.00 US$869.00
- SKU: FP-1204
- Manufacturer: Shireen
- Data Sheet: Download
Product Information
Shireen FP-1204 1000ft (2)-12AWG/(4)-SMFiber (TRIMESE)
Fiber & Power Triamese Cable - 1000ft Spool
Light Burial, Outdoor UV rated, Flexable and Easy Peal, Embossed Polarity ID, Highly Durable and painless cable management for Tower Installation
Triamese Construction with 2C / 12AWG for Power & 4C / Single Mode Fiber. 1000ft spools
Specifications
Specifications FP-1204
| Power | |
| Max. DCR | 5.6 Ω/km |
| Capacitance of Con. to Con | 148 pF/m |
| Operation Voltage | 300 V RMS |
| Fiber 4C Single Mode | |
| Bandwidth Attenuation (850 nm) | >750 MHz/Km |
| Fiber Optical Index (1310 nm) | <0.40 dB/km |
| Cable Optical Index (1550 nm) | <0.30 dB/km |
| Numerical Aperture | 0.14 |
| Effective Group Index of Refraction (1310 nm) | 1.4676 |
| Effective Group Index or Refraction (1440 nm) | 1.4682 |
| Power Wire - 2C x (12 AWG) | |
| Center Conductor | Bare Copper Stranded Wire |
| Conductor Diameter | 2.36 mm |
| Insulation | Solid Polyethylene |
| Weight | Black |
| Centricity | >90% |
| Adhesion | 20 to 100 N |
| 4C Singlemode Tight Buffered Optical Fiber | |
| Fiber Count | 4 |
| Fiber Diameter | 0.245 um |
| Buffering Diameter | 0.6 um |
| Color | Blue/Orange/Green/Brown |
| Tensile Strength Element | Kevlar |
| Jacket | PVC |
| Thickness | 0.6 mm |
| Outer Diameter | 3.80 mm |
| Jacket Color | Yellow |
| Total Hybrid Cable | |
| Jacket | PE |
| Thickness | 0.60 mm |
| Diameter | 3.30 x 4.80 x 13.40 mm |
| Jacket Color | Black |
