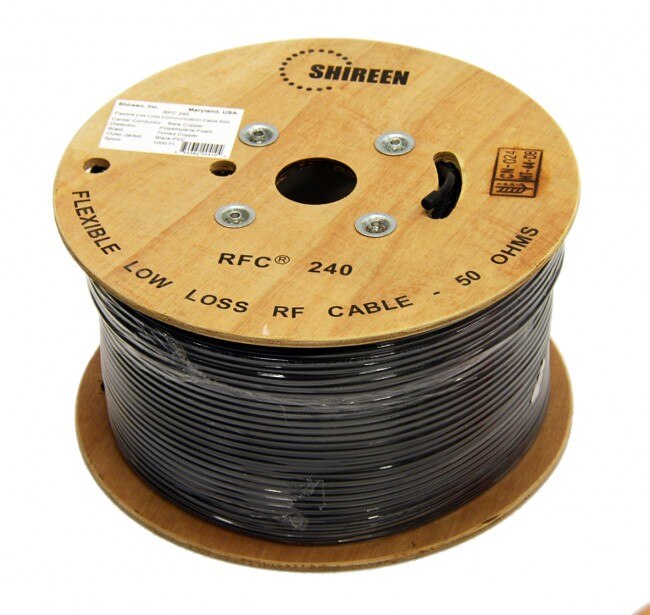

Shireen LMR240 Low Loss RF Coax Cable 1000 ft Spool
US$520.00
- SKU: RFC240-1000
- Manufacturer: Shireen
- Data Sheet: Download
Product Information
Shireen RFC240-1000 LMR240 eq cable, 1000ft spool
RFC240 Low Loss RF Coax Cable 1000 ft Spool
Shireen’s latest RFC® series of low loss cables offer excellent characteristics that meet or exceed the specs of alternatives from Times Microwave, Commscope, Andrew and Belden.
RFC®, Registered trademark of Shireen Inc
LMR®, Registered trademark of Times Microwave Systems
- Generic Name: RFC240
- Cable Type: LMR®
- Flex Type: Flexible
- Impedance: 50 Ohm
- Outer Jacket: PVC
- Dimensions (WxLxH): 14 x 14 x 9
- Weight: 41 Lb
Specifications
Specifications RFC240-1000
Center Conductor
| Min. Break Strength (N) | 728 |
| Conductor Dia.(+/-0.01mm) | 1.42 |
Insulation
| Insulation Dia.(+/-0.10mm) | 3.81 |
| Color | Neutra |
| Centricity (%) | ≥ 90 |
| Adhesion | 10 to 100N @ 25mm |
1st Outer Conductor
| Overlapping | ≥ 115% |
| Dia.(+/-0.10mm) | 3.94 |
2nd Outer Conductor
| Conductor Dia.(+/-0.01mm) | 0.12 |
| No. of Wires | 144 |
| Coverage (+/-3%) | 90 |
Outer Jacket
| Outer Dia (+/-0.10mm) | 6.10 |
| Tensile strength | ≥ 13.5 N/mm2 |
| Elongation at break | ≥ 100 % |
| Adhesion | 20 to 80N @ 50mm |
