TP-LINK 1000 Base-BX WDM Bi-Directional SFP Module
US$19.99
- SKU: TL-SM321B
- Manufacturer: TP-Link
- Installation Guide: Download
Product Information

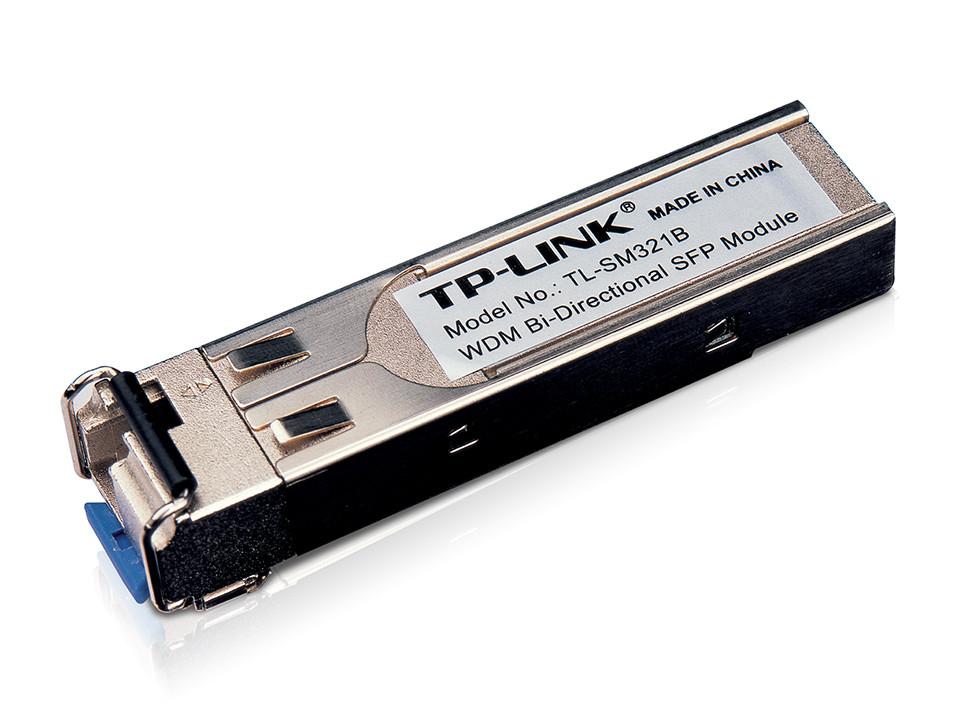

1000Base-BX WDM Bi-Directional SFP Module TL-SM321B
What This Product Does
TP-LINK´s TL-SM321B adopts the latest standard 1000Base-BX, transmission over a single strand of fiber, with one different wavelength going in each direction. You can extend the network distance up to 10Km(6.2 miles) with TP-LINK´s Routers, Switches, Media Converters to provide high speed and stability.
Specifications
Specifications TL-SM321B
| Standards and Protocols | IEEE 802.3z, CSMA/CD, TCP/IP |
| Wave Length | TX: 1310nm / RX: 1550nm |
| Power Supply | 3.3V |
| Safety & Emission | FCC, CE |
| Cabel | Single-mode Fiber |
| Fiber Type | 9/125 μm Single-mode |
| Max. Cable Length | 10km |
| Data Rate | 1.25Gbps |
| Port Type | LC/UPC |
| Environment | Operating Temperature: 0℃~70℃ (32℉~158℉) Storage Temperature: -40℃~80℃ (-40℉~176℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
