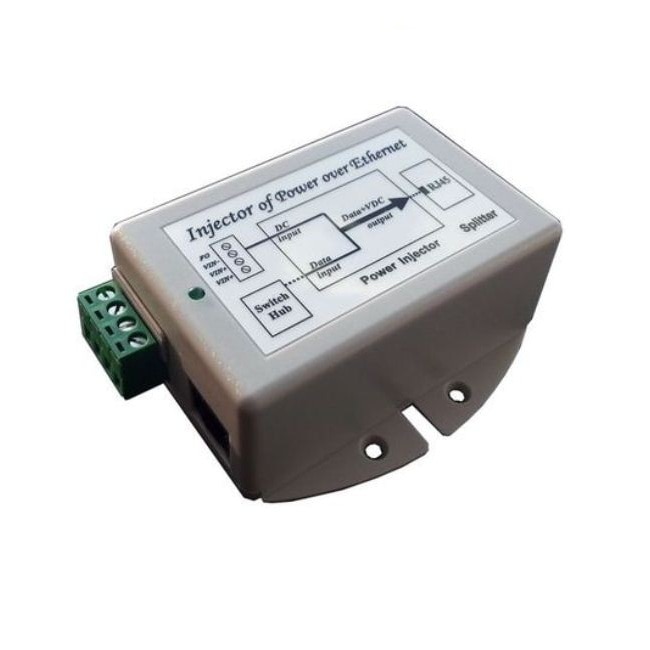

Tycon Power 10-15VDC In, 56VDC 802.3af/at Out 35W DC

(0)No Reviews yet
US$‎56.95 US$‎59.95
  • SKU: TP-DCDC-1248GD
  • Manufacturer: Tycon Systems
  • Data Sheet: Download

Out of Stock

650 in stock
Utah
650 In stock

Product Information

DC to DC Converter / POE Inserter

DC Input Voltage: 9VDC - 36VDC
DC Output Voltage: 48V (802.3af)
Output Current (max): 0.35A
Output Power (max): 17W

The TP-DCDC Gigabit Series of DC to DC converters offered by Tycon Power Systems are a low cost and high efficiency solution for those requiring IEEE802.3af and IEEE802.3at Power Over Ethernet from a 12VDC or 24VDC or 48VDC voltage source like a battery system or vehicle. They have an integrated POE injector to apply the 802.3af or 802.3at output to the CAT5 Ethernet cable. The output voltage is regulated 48VDC-56VDC. They have two isolated inputs for connecting 2 power sources, like a primary and backup power source. A metal enclosure model is available for industrial applications.

They accept gigabit data-in to a shielded RJ45 Jack and provide gigabit data-out and POE power on the shielded RJ45 output jack. They work by supplying power on the unused Ethernet pins 4,5(V+) and 7,8(V-). They have various protections for surge, short circuit and overload. The units have power outputs up to 35W.

They have various protections for surge, short circuit and overload. The units have power output up to 24W.

Specifications

Specifications TP-DCDC-1248GD

DC Input Voltage9VDC – 36VDC
DC Input ConnectorRemoveable Screw Type Compression Wire Terminal (12 AWG Max)
DC Output Voltage 48V (802.3af)
Data in & Data/POE Output ConnectorRJ45 (Shielded)
Output Current (max)0.35A
Output Power (max)17W
Self Consumption Power1W
Efficiency (min)75%
Line Regulation1%
