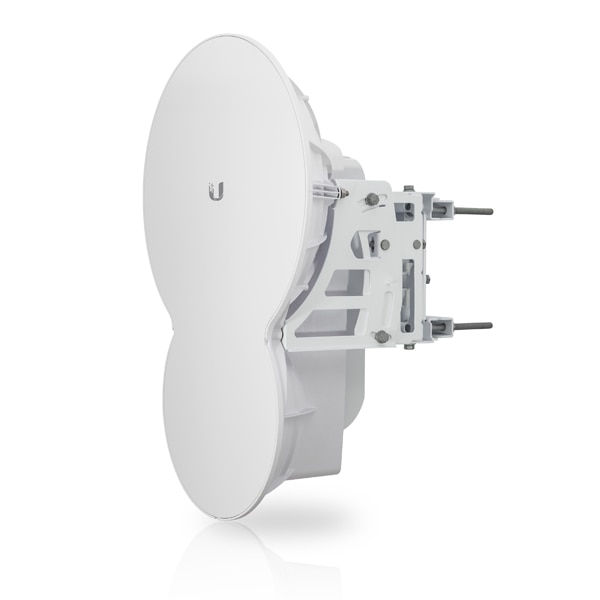

Ubiquiti AF24 (AF24) - 24GHz airFiber Gigabit Backhaul
- SKU: AF24-US
- Manufacturer: Ubiquiti Networks
- Datasheet: Download
- Availability: 6 In Stock
Returns, Damage and Loss Policy
ISP Supplies stands behind the products that we offer and take pride in every package that we ship out to our customers. In the case of product failure due to packing, loss, damage or if you are unhappy with your product in any way please contact us and let us know.
Software and Licenses
Software and licenses are non-returnable, non-refundable and non-transferrable. Once a license is issued by the manufacturer, they will not credit it back to you and we are not able to credit you as well. Therefore, know what you are buying is correct before you make a software or license purchase.
Damage in transit / Loss Policy
All shipments should be physically inspected immediately upon receipt. Do not accept visibly damaged packages unless the carrier notes the extent of the damage. Please contact us within one business day of receipt to report the damages.
Every shipment sent out by ISP Supplies is traceable via tracking numbers assigned by the freight carriers. Please keep track of the status and delivery date posted for your shipment. Shipments can be delayed and delivery dates can be pushed back for various reasons by the freight carrier. If you do not receive your shipment, please contact us as soon as possible to start an investigation and claim with the shipping carrier.
Please follow the above instructions to ensure the eligibility for credit from the freight carrier; failure to do so can result in refused replacement or compensation.
Returns for Credit
ISP Supplies will accept most new, unopened items within 14 days of delivery for a full refund. To receive full credit, the item(s) must be returned unopened in new condition with all packing material, manuals and accessories. Items that are not returned in this condition are subject to a minimum restocking fee of 25% and ISP Supplies discretion. This includes opened packaging, missing or used packing materials, missing or used accessories, writing, marking, labels or stickers to the product packaging or to the product itself.
If the item(s) you have purchased fails within the manufacturer warranty period, please contact us for instructions. Each manufacturer has different warranty policies. Ubiquiti items shoud be returned to ubiquiti as they handle RMA's directly. See their web site for details. No item may be returned without authorization. Items without an RMA number will be refused and returned at the shipper's expense.
ISP Supplies requires full payment for advance replacement item(s). When the returned item(s) have been received and evaluated, we will refund the amount paid for the replacement provided they are found to be defective. If tested good and in working condition, the item(s) will be returned back to you. If you need to return the advance replacement item, it must be in new condition with all accessories and packaging and there can be no damage to the original box.
If you buy the advanced replacement on a net terms account and the invoice becomes due before the repair is completed, you will owe for the item just like any other invoice on it's due date. There is no extension of the due date for advanced replacement invoiced items.
There is no exception to this policy. Items not received back within seven days of return authorization are not returnable.
ISP Supplies can ship to virtually any address in the world primarily by United Parcel Service (UPS) and FedEx. In addition, we also use multiple carriers for LTL freight shipments. Please note that there are restrictions on some products and some products cannot be shipped to international destinations.
Orders placed and approved before 5:00 PM Central Standard Time (CST) generally ship the same business day; subject to availability, carrier, inclement weather and holidays. Orders requiring assembly or international orders may not ship same business day.
Special order items and some items sent directly from our suppliers may take one to two business days to ship. Orders over 150 pounds may ship freight. We will contact you with any additional shipping charges or if we need additional information to continue processing the order. Delivery times to international locations can vary depending on the country.
Shipment status can be tracked directly from our website by logging into your account. Please not that we occasionally ship from multiple warehouses and your order may arrive in multiple boxes at different times. Shipments include a packing slip which detail information about the contents. Order confirmation, shipment notices and packing slips are emailed to the email address on account and can also be retrieved by accessing your customer account.
ISP Supplies reserves the right to bill you for additional fees imposed by a freight carrier and incurred by ISP Supplies in conjunction with delivering the product to you. These additional fees include but not limited to: extended area surcharge, address change or correction while in transit, oversize box surcharge, shipment intercept, hold for pickup at terminal and any other fees billed to ISP Supplies by a freight carrier. Import duties and brokerage fees for international shipments are the sole responsibility of the customer.
UPS Ground Transit Map
FedEx Ground Transit Map
|Operating Frequency||24.05 – 24.25 GHz|

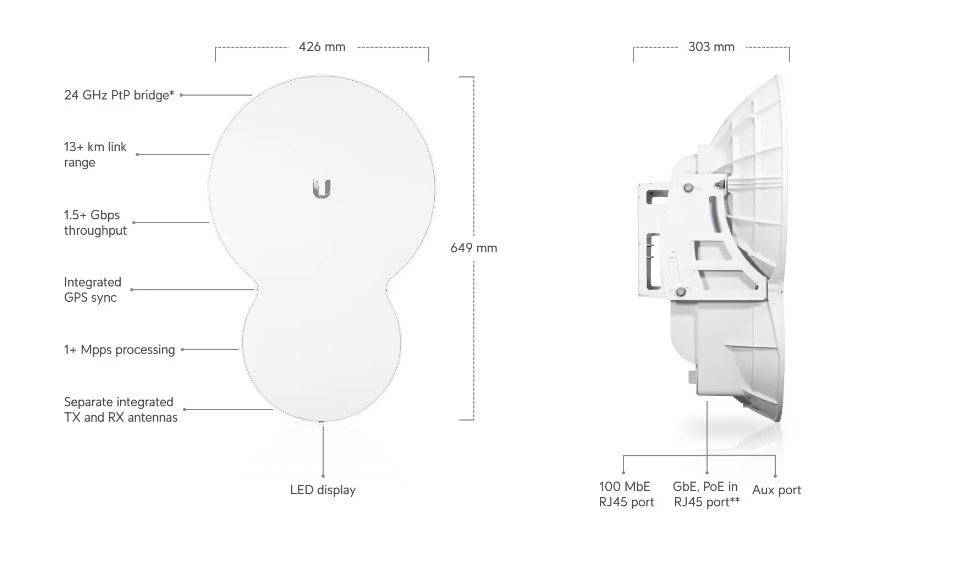

|Dimensions||649 x 426 x 303 mm (25.55 x 16.77 x 11.93")|
|Weight||10.5 kg (23.15 lb) Mount Included|
|Max. Power Consumption||50 W|
|Power Supply||50V, 1.2A PoE GigE Adapter (Included)|
|Power Method||Passive Power over Ethernet|
|Supported Voltage Range||42-58VDC|
|Certifications||CE, FCC, IC|
|Wind Loading||480 N @ 200 km/hr (108 lbf @ 125 mph)|
|Wind Survivability||200 km/hr (125 mph)|
|Mounting||Pole Mount Kit (Included)|
|Operating Temperature||-40 to 55° C (-40 to 131° F)|
|LEDs||(8) Status LEDs: Data Port Speed Data Port Link/Activity Configuration Port Speed Configuration Port Link/Activity GPS Synchronization Modulation Mode Master/Slave RF Status (1) Two-Digit LED Display Calibrated in dBm|
|Data Port||(1) 10/100/1000 Ethernet Port|
|Configuration Port||(1) 10/100 Ethernet Port|
|Auxiliary Port||(1) RJ-12, Alignment Tone Port|
|Maximum Throughput||1.4+ Gbps|
|Maximum Range||13+ km|
|Packets per Second||> 1 Million|
|Uplink/Downlink Ratio||50% Fixed|
|Modulation||Sensitivity||FDD Capacity*||TDD Capacity*|
|64QAM||-66 dBm||1500 Mbps||760 Mbps|
|16QAM||-72 dBm||1000 Mbps||507 Mbps|
|QPSK MIMO||-78 dBm||500 Mbps||253 Mbps|
|QPSK SISO||-80 dBm||250 Mbps||127 Mbps|
|¼x QPSK SISO||-87 dBm||62.5 Mbps||31.7 Mbps|
*FDD=(2) 100 MHz channels and TDD = (1) 100 MHz channel
|GPS||GPS Clock Synchronization|
|EIRP||~33 dBm (FCC/IC), ~20 dBm (CE)|
|Frequency Accuracy||±2.5 ppm without GPS Synchronization ±0.2 ppm with GPS Synchronization|
|Channel Bandwidth||100 MHz|
|Operating Channels||24.1 GHz, 24.2 GHz|
|Modulation||64QAM MIMO 16QAM MIMO QPSK MIMO QPSK SISO ¼x QPSK SISO|
|TX Gain||33 dBi|
|RX Gain||38 dBi|
|Front-to-Back Ratio||70 dB|
|Cross-Polarity Isolation||> 28 dB|
airFiber 24 GHz Point-to-Point Gigabit Radio
The airFiber®24 is ideal for outdoor, PtP bridging and carrier-class network backhauls.
Superior 24 GHz Performance
airFiber AF24/AF24HD provides a breakthrough in 24 GHz backhaul performance. Systems for millimeter-wave frequencies typically experience RF losses when part of the RF is lost in the switches and filters.
The Ubiquiti R&D team eliminated such RF losses with separate yet integrated TX and RX antennas, so the link budget is robust and the airFiber AF24/AF24HD has better noise figure and higher transmit power efficiency.

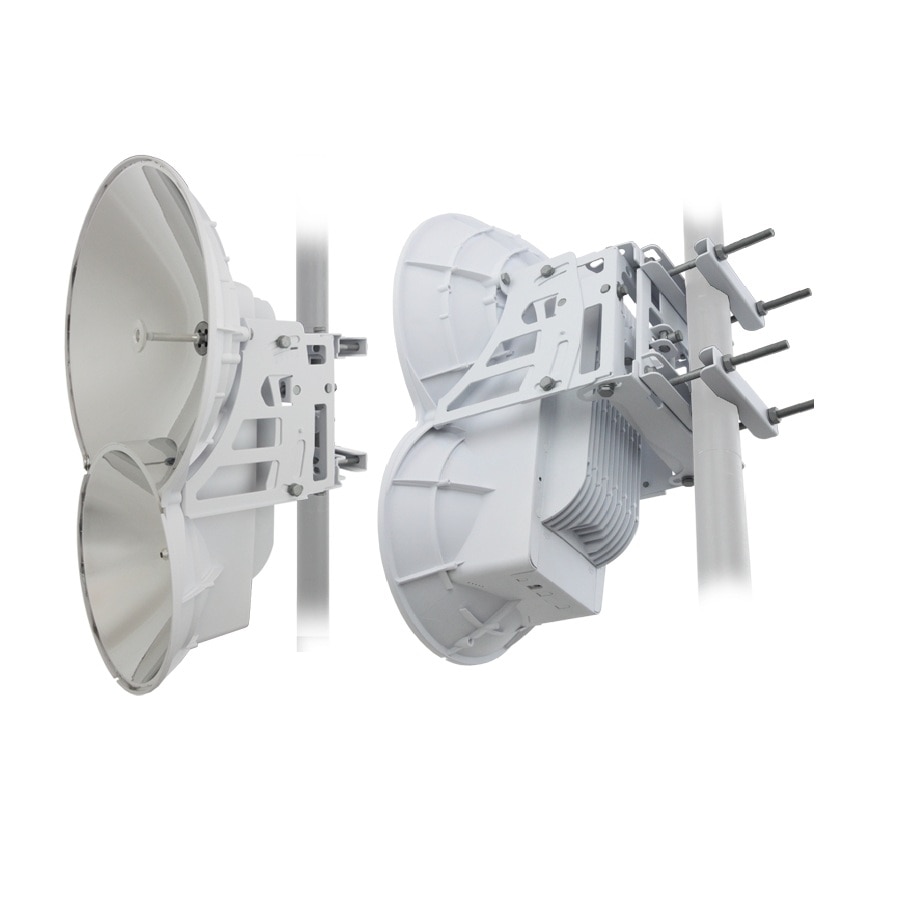

Two airFiber 24 GHz Models
Two models deliver superior speed with spectral efficiency in the worldwide, license-free, 24 GHz radio band. The standard model, AF24, delivers up to 1.4+ Gbps throughput at a range of up to 13+ km.
The heavy-duty model, AF24HD, provides more throughput at up to 2 Gbps and increased range of up to 20+ km. It also includes a more rugged exterior with a metal reflector, to protect against nature’s harshest elements.
airFiber 24 is a truly revolutionary Point-to-Point wireless platform from Ubiquiti Networks. Housed in a compact, highly efficient form factor, airFiber delivers amazing wireless gigabit+ performance, low latency, and long range.
airFiber ushers in a new era in price-disruptive wireless technology ideal for carrier backhaul, building-to-building enterprise use, or public safety applications.
Efficient by Design
Every detail of airFiber was designed and engineered by the Ubiquiti R&D Team. From the silicon chip up to the innovative split-antenna architecture, the Ubiquiti R&D Team created airFiber to deliver superior throughput with efficiency.
airFiber was purpose-built to create a high performance backhaul. Plug and Play Deployment Based on Ubiquiti’s innovative and intuitive airOS®, the airFiber Configuration Interface enables quick deployment.
With installation efficiency in mind, the mechanical design allows easy installation by one person. A two-person installation crew can effectively install and align an airFiber link.
To fine-tune the alignment, the received signal levels can be conveniently accessed via any of these methods:
- airFiber LED display
- airFiber Configuration Interface
- Audio tone feature
