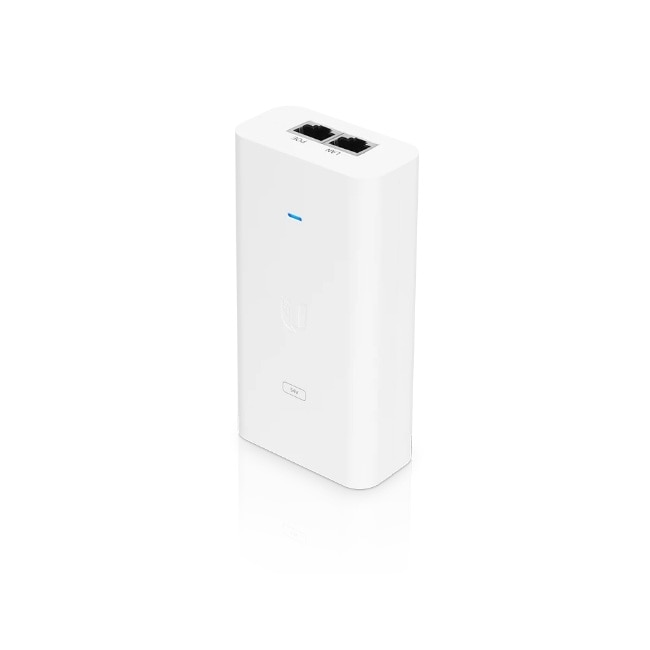

Ubiquiti EdgePoint POE Adapter, 54V, 80W

(0)No Reviews yet
  • SKU: POE-54V-80W
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download
91 in stock
College Station
9 In stock
Mississippi
82 In stock

Product Information

Ubiquiti POE-54V-80W

Ubiquiti EdgePoint POE Adapter, 54V, 80W

Ubiquiti's EdgePoint POE-54V-80W PoE Injector is designed to power Ubiquiti's EP-R8 and EP-S16 EdgePoint models.

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:

  • Surge protection
  • Clamping protection
  • Maximum surge discharge
  • Peak pulse current
  • AC cable with earth ground

Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.

Specifications

Specifications POE-54V-80W

ModelPOE-54V-80W
Dimensions123 x 65 x 34 mm (4.84 × 2.56 × 1.34")
Weight299 g (10.55 oz)
Output Voltage54VDC @ 1.5A
LAN Activity IndicatorNo
Gigabit LAN PortYes
Remote Reset CapabilityNo
Reset ButtonNo
Input Voltage100-240AC @ 50/60Hz
Input Current0.8A @ 120VAC, 0.4A @ 240VAC
Inrush Current<80A Peak @ 120VAC, <120A Peak @ 230VAC
Efficiency87+%
Output Ripple1% Max.
Switching Frequency100 kHz Max.
Line Regulation≤ 3%
Load Regulation≤ 5%
4-Pair PoweringPins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
Operating Temperature0 to 40° C (32 to 104° F)
Storage Temperature-30 to 70°C (-22 to 158° F)
Operating Humidity35 to 95% Non-Condensing
AC ConnectorIEC-320 C6
Data IN / POERJ45 Shielded Socket
Surge ProtectionDifference and Common Mode
Clamping Protection11V Data, 60V Power
Max. Surge Discharge1500A (8/20µS) Power
Peak Pulse Current36A (10/1000µS) Data
Shunt Capacitance<5 pF data
Response Time<1 ns
CertificationsCE, FCC, IC, UL
