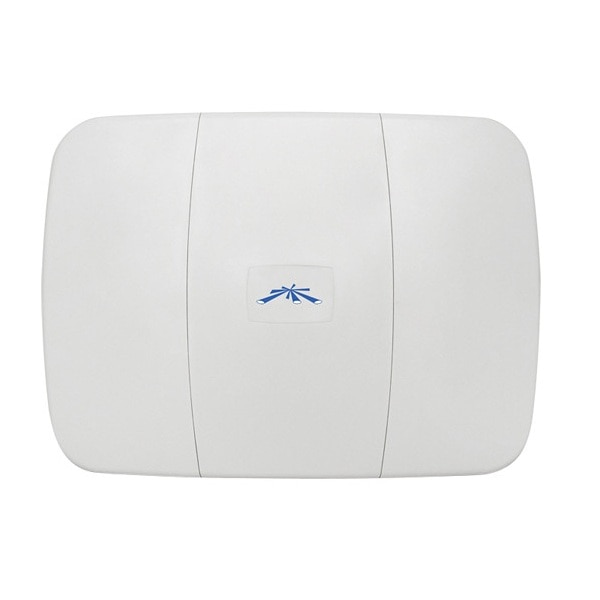

Ubiquiti PowerStation5 Outdoor Wireless Station, 802.11a 400mW

(0)No Reviews yet
  • SKU: PS5-22V
  • Manufacturer: Ubiquiti Networks
  • Datasheet: Download
Call for Availability

Product Information

Ubiquiti PowerStation5 Outdoor Wireless Station, 802.11a 400mW

22db vertical polarity version. PowerStation is a versatile open architecture 802.11 based outdoor wireless platform that can be used as an AP, Bridge, PMP Station, Mesh networking client, and in many more applications being developed. It features exceptional radio and antenna design which allows links to be established over distances of 50km and can provide significantly increased throughput (up to 50+Mbps TCP/IP) over other solutions in comparable environments. Additionally, Ubiquiti has made public Linux SDK and toolchain resources for developers.

Specifications

Specifications PowerStation5

Processor SpecsAtheros AR2313 SOC, MIPS 4KC, 180MHz
Memory Information16MB SDRAM, 4MB Flash
Networking Interface10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface
Wireless Modular ApprovalsFCC Part 15.247, IC RS210, CE
RoHS ComplianceYES
Radio Operating Frequency5.20-5.825GHz
Adjustable Channel Size Support5MHz, 10MHz, 20MHz, 40MHz
Range PerformanceOutdoor (BaseStation Antenna Dependent): Over 50km
Enclosure Size18 in. length x 13 in. height x 2in. Width
Weight6.7 lbs
Enclosure CharacteristicsOutdoor UV Stabalized Plastic (Antenna) and die cast metal (system)
Mounting KitPole Mounting Kit included
Max Power Consumption6.5 Watts
Power Supply12V, 1A (12 Watts). Supply and injector included
Power MethodPassive Power over Ethernet (pairs 4,5+; 7,8 return)
Operating Temperature-40C to 85C (System PCB optimized for hi-temp)
Operating Humidity5 to 95% Condensing
Shock and VibrationETSI300-019-1.4
Gain22dBi (5400-5900MHz)
PolarizationVertical
Front to Back Ratio30dB+
3dB Beamwidth6 Degrees
Surival Wind185km/hr
VSWR1.4:1
Impedance50 ohm
Front to Back Ratio30dB+
