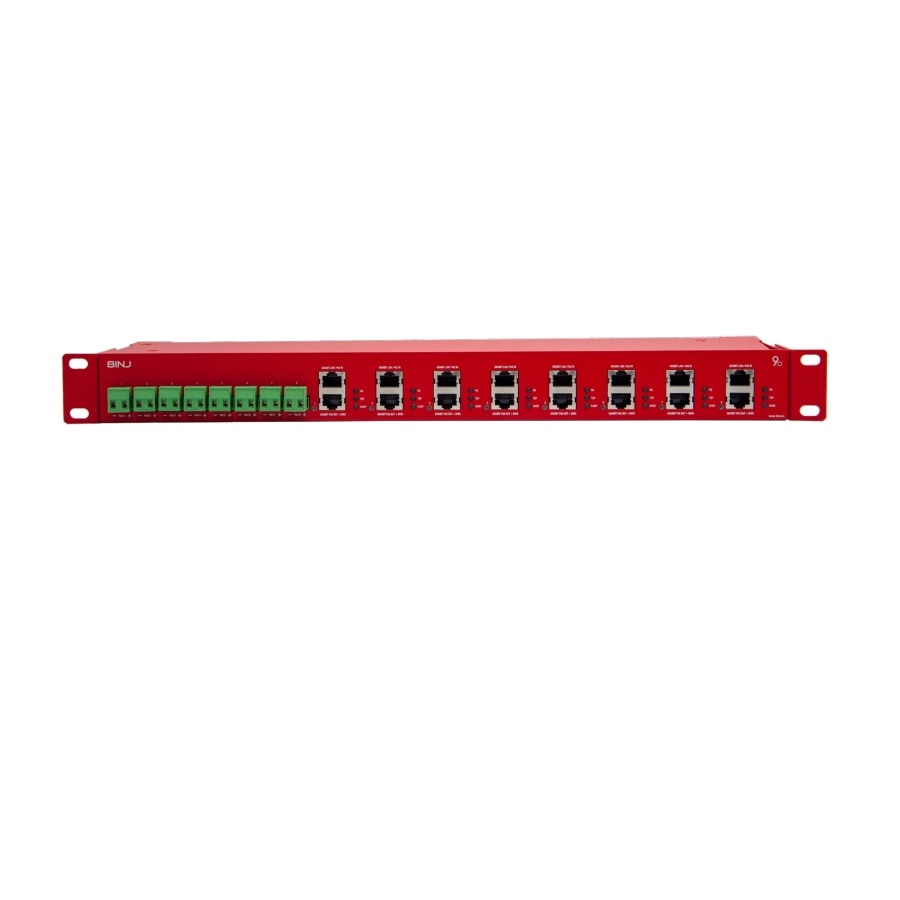

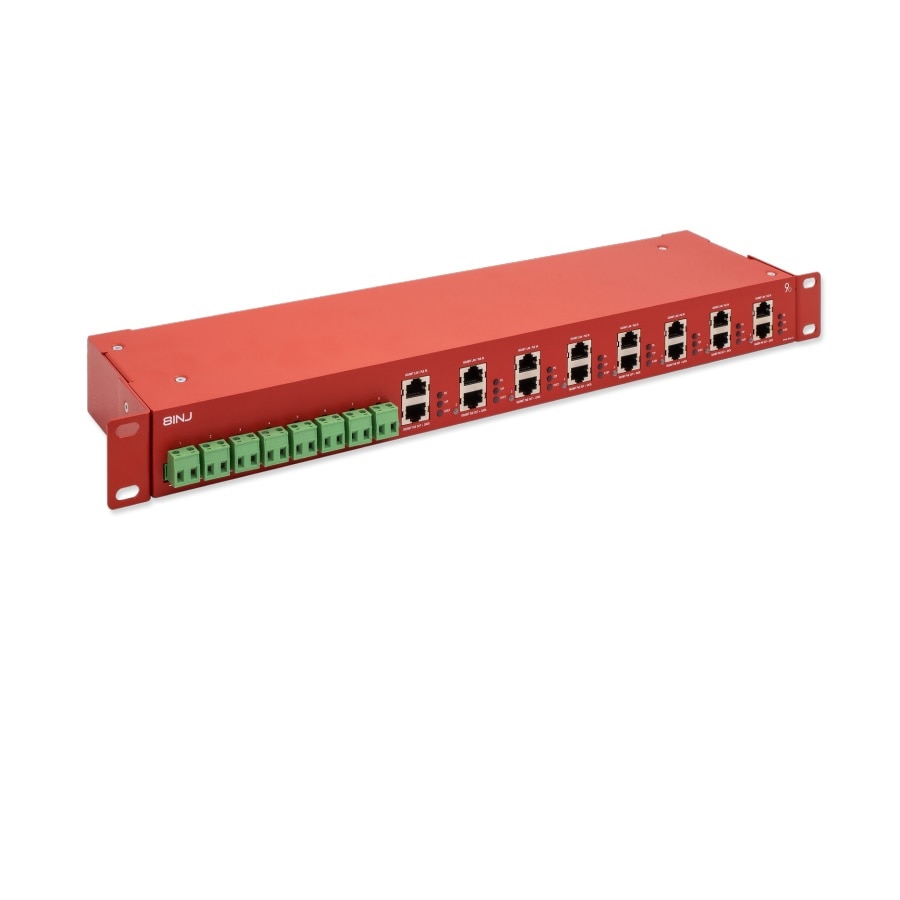

9Dot Gigabit PoE Injector with 8 Rack mount Ports
- SKU: 8INJ
$864.00
Product Information
9Dot 8INJ
Gigabit PoE Injector with 8 Rack mount Ports
8INJ is a Power over Ethernet injector with integrated surge protection device belonging to the Smart Power Module System family: a simple system designed to power up to 8 Power over Ethernet devices where Plug n ‘Play assembly is required. Each PoE port works independently and ensures the highest level of reliability and security.
Ports features
- 16 x RJ 45 shielded (8 x data in, 8 x PoE + data).
- 8 x DC input terminal blocks.
Multi PoE GigaKey Port Mapping
Compatible with all types of PoE devices. The pinout is defined by the hardware key
Galvanic isolation
Galvanic isolation protects circuits and people from overvoltage between the inlet side and the outlet side. This results in the best protection for your devices and for you.
Specifications
Specifications 8INJ
| Electrical | |
| Operating Voltage | 10 to 60 Volts DC |
| Typ current | 3A per door (with A + B or 9.S Key), 1.5A per door (with B or B reverse Key) |
| Power connectors | 8 terminal cables 2 x 3.3 mm2 |
| Ethernet Connectors | 16x shielded RJ45 jack (8x LAN, 8x PoE+DATA) |
| BUS Connectors | No |
| Transmission Speeds | 10BaseT |
| POE mode | PoE output mapping selectable via GigaKey |
| Indicators | 3 green LEDs per port (input voltage, port identifier, GigaKey inserted) |
| Active protection | Reverse polarity protection at the input terminals |
| SPD | |
| Spark over voltage | 150 Volt |
| Peak Surge Current | 15kA |
| Modes of Protection | All lines (1-8) Protected (L-L) and (L-G) |
| SPD Technology | 2 stages: TVS, GDT |
| Environmental | |
| Operating Temperature | -20 °C to +55 °C |
| Humidity | 5 - 95% non-condensing |
| Mechanical | |
| Dimensions (LxPxH) | 105x445x45 mm (4.13" x 17.51" x 1.77" inch) |
| Weight | 2kg (4.40 lbs) |
| Material | Varnished Iron |
| Compliance & Warranty | |
| RoHS compliance | Yes |
| Certifications | CE and FCC |
| Warranty | consult with the nearest distributor |
