9Dot Gigabit PoE Injector with High Power Surge Protection
- SKU: SPI-V2
$143.00
- Manufacturer: 9Dot
- Data Sheet: Download
Product Information

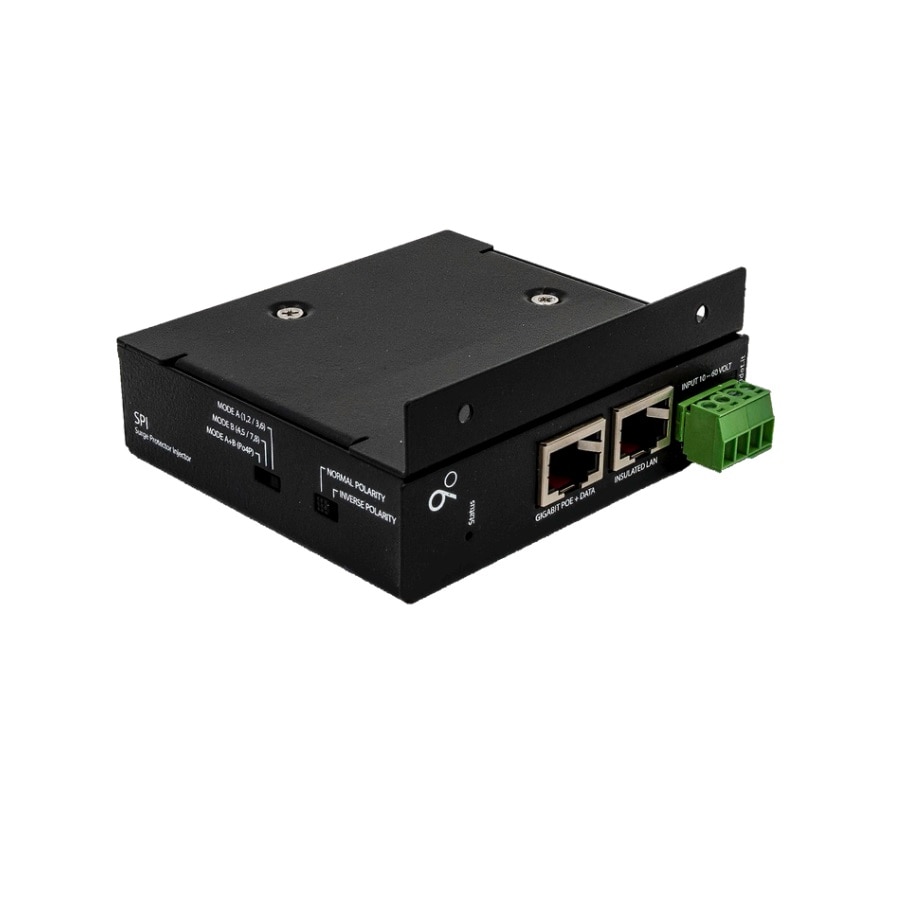

9Dot SPI-V2
Gigabit PoE Injector with High Power Surge Protection

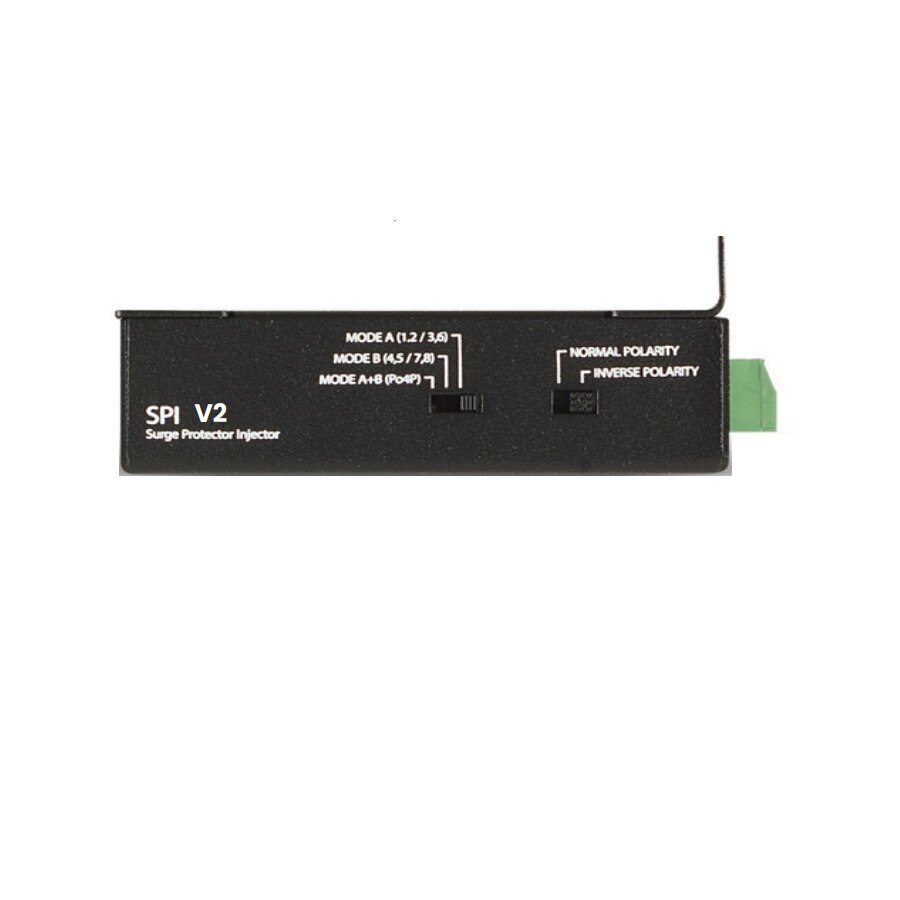

Surge Protector Injector V2 is a Power over Ethernet injector with integrated surge protection device which belong to the Smart Power Module System Family: a modular system designed to supply Power over Ethernet devices. Each module works independently and ensure the highest level of reliability and security. Through the side selectors you can set the PoE Mode and polarity.
Features:
- Mode Selector: MODE A+B (PoE++) MODE B (4,5 / 7,8) MODE A (1,2 / 3,6)
- Polarity Selector: NORMAL POLARITY: + 4,5 e/o 1,2 | – 7,8 e/o 3,6
- REVERSE POLARITY: – 4,5 e/o 1,2 | + 7,8 e/o 3,6
Specifications
Specifications SPI-V2
| Electrical | |
| Operating Voltage | +/- 10 - 60 Volt AC/DC |
| Typ Current | 1A, 2A (PoE++) - short time maximum current 3A |
| Power Connector | 2 x 1.31 mm² wires terminal blocks |

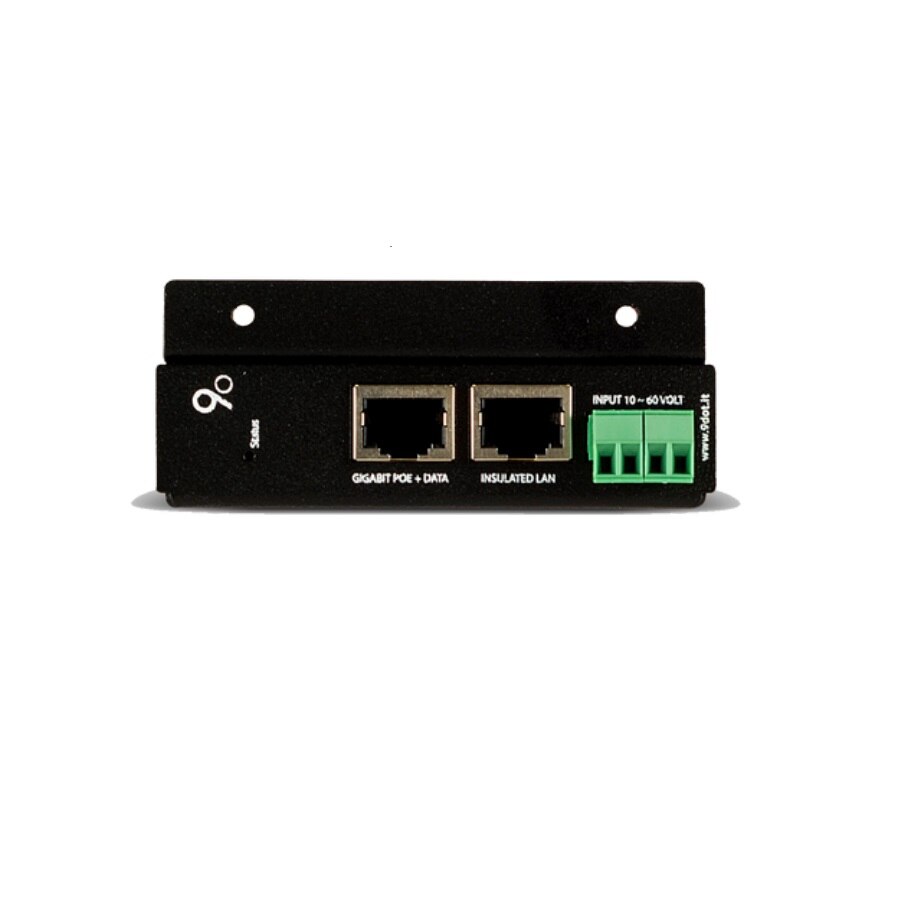

| Ethernet Connectors | 2 x Shielded RJ45 Jacks (LAN / PoE + Data) Screw |
| GND Connectors | M4 |
| Transmission Speeds | 10BaseT; 100BaseT; 1000BaseT |
| PoE mode | selectable (A, B, A+B, A reverse polarity, B reverse polarity, A+B reverse polarity) |
| Led | 1 x LED (Status) |
| SPD | |
| Spark over voltage | 150 Volts |
| Peak Surge Current | 15kA |
| Modes of Protection | All lines (1-8) Protected (L-L) and (L-G) |
| SPD Technology | 2 stages: TVS, GDT |
| Environmental | |
| Operating Temperature | -20 °C to +45 °C |
| Humidity | 5 - 95% non-condensing |
| Mechanical | |
| Dimensions (LxWxD) | 87 x 84 x 24 (36 with flange) mm (3.42" x 3.30" x 0.94" inch) |
| Weight | 150gr (0.33 lbs) |
| Material | Varnished Iron |
| Mounting | Rack mount (with optional Staffa Rack) or DIN Rail (with optional DIN Clip) |
| Compliance & Warranty | |
| RoHS Compliant | Yes |
| Certifications | CE - FCC |
| Warranty | consult with the nearest distributor |
