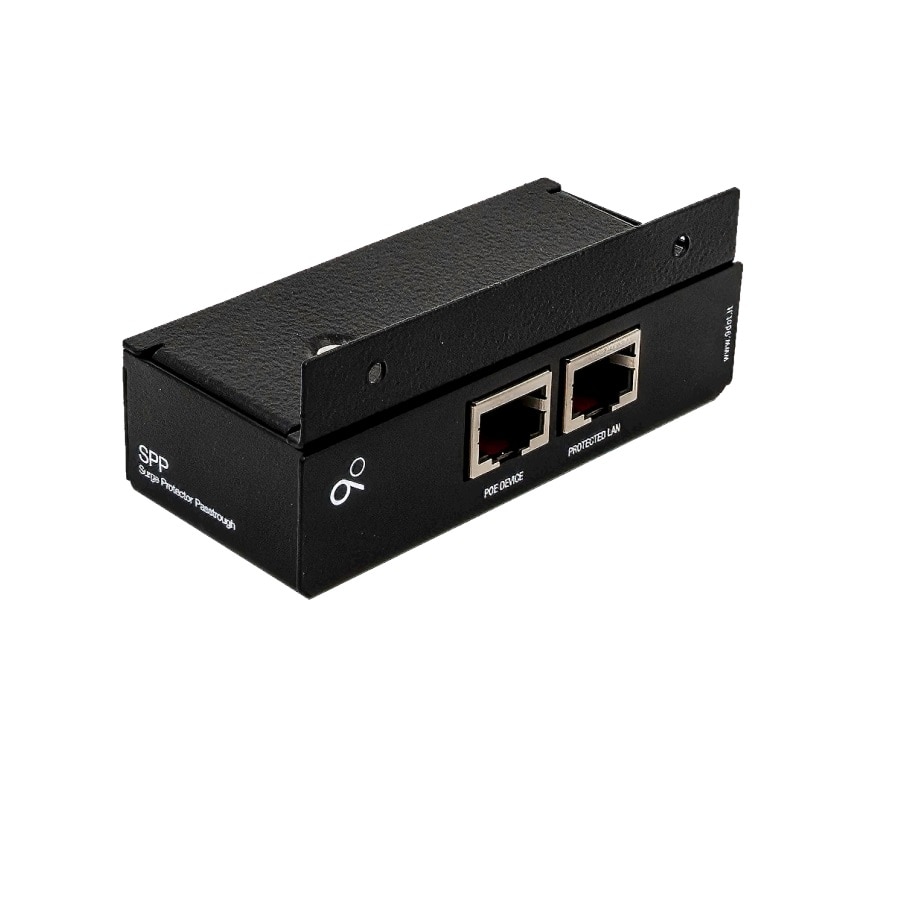

9Dot SPP
Surge Protector Passthrough Ethernet 10/100/1000Mbps 15KA three stages Surge Protection
Surge Protector Passthrough is a lead-through surge arrester that can be inserted into a Power over Ethernet line in order to prevent any damage caused by overvoltage.
It simply connects the two ports without making any changes to what is applied, simply adding the protection of the arresters to the line.
Specifications
Specifications SPP
| Electrical | |
| Operating Voltage | +/- 10 to 60 Volt AC/DC |
| Typ current | 3 A on PoE + Data port |

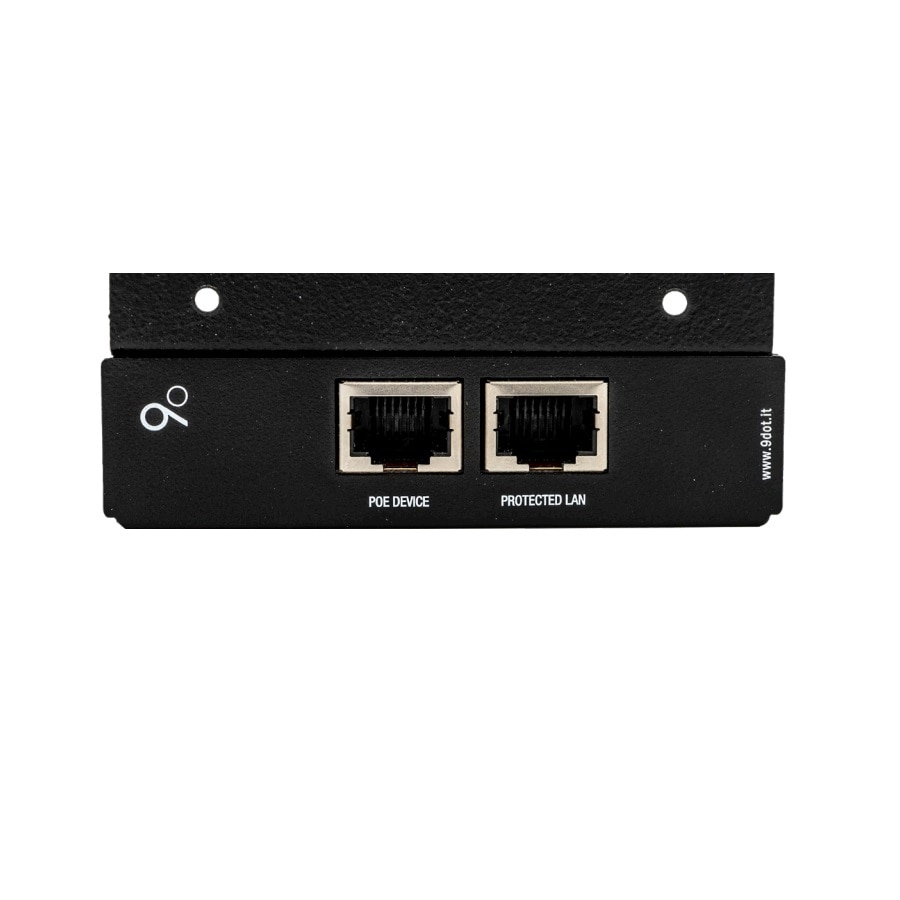

| Ethernet connectors | 2 x Shielded RJ45 Jacks (LAN / PoE + Data) |
| GND connectors | Screw M4 |
| Transmission Speeds | 10BaseT; 100BaseT; 1000BaseT |
| SPD | |
| Spark Over Voltage | 150 Volts |
| Peak Surge Current | 15kA |
| Modes of Protection | All Lines (1-8) Protected (L-L) and (L-G) |
| SPD Technology | 2 stages: TVS, GDT |
| Environmental | |
| Operating temperature | -20 °C to + 45 °C |
| Humidity | 5 - 95% non-condensing |
| Mechanical | |
| Dimensions (LxWxD) | 41 x 84 x 24 (36 with flange) (1.61" x 3.30" x 0.94" inch) |
| Weight | 100gr (0.22 lbs) |
| Material | Varnished iron |
| Mounting | Rack mount (with optional Rack bracket) or DIN Rail (with optional DIN Clip) |
| Compliance and Warranty | |
| RoHS compliant | Yes |
| Certifications | CE |
| Warranty | consult with the nearest distributor |
