ALGcom 4.9 - 5.9 GHz 33.5dBi 0.9 m | 3ft Dish Antennas
- SKU: PA-5800-32-09-DP
US$299.00
- Manufacturer: ALGcom
- Data Sheet: Download
Product Information

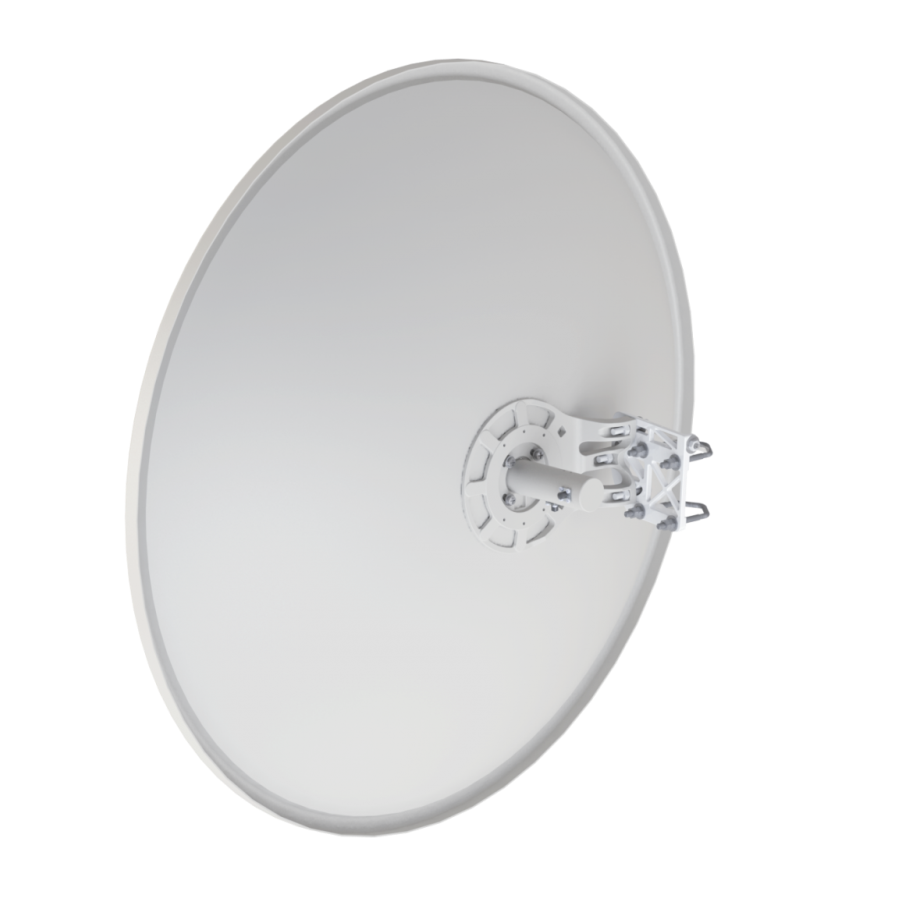

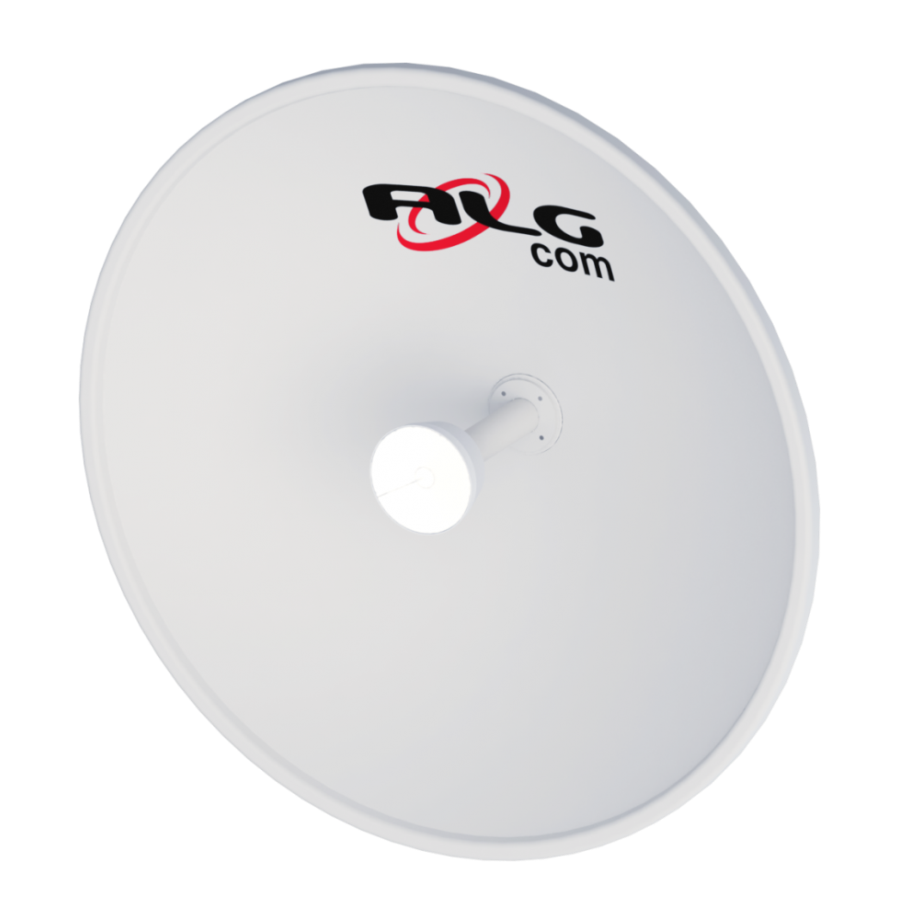

ALGcom PA-5800-32-09-DP
4.9 - 5.9 GHz 33.5 dBi 0.9 m | 3ft Dish Antennas
ALGcom Dish Atennas were designed with latest generation technology to ensure the best unlicensed frequency links.
They are used on point-to-point wireless links and have standard fitting for coupling the ALGcom Armored Boxes, in addition to having a support that allows for the easy link alignment.
EXCELLENT BANDWIDTH
ALGcom Dish Antennas has an excellent Bandwidth (4.9 - 5.875 GHz) giving more Flexibility in the radio configuration to point-to-point links.
Features:
- 100% Aluminum Structure.
- VSWR and isolation 100% verified. Technical report is included.
- Projects are designed with computational tools that allows ALGcom to optimize the radiation efficiency and evaluate the mechanical structure.
- All models approved by Anatel 3 years warranty
Specifications
Specifications PA-5800-32-09-DP
| LINK | Point to Point | |
| FREQUENCY | 4.9 - 5.875 GHz | |
| PTP DISTANCE | Up to 50 km | |
| DIAMETER | 0.9 m | 3ft | |
| GAIN | 33.5 dBI | |
| FRONT RELATION | > 54 dB | >48db |
| POWER HALF ANGLE | 3.6° | |
| Cross Isolation Polarization | >20db | |
| POLARIZATION | Dual (V & H) | |
| CONNECTION | SMA reverse female | |
| WEIGHT | 17.64 lbs | |
| DIMENSION | 27.36" H x 39.17" W x 50.39" D | |
| WARRANTY | 3 Years |
