ALGcom 5.8GHz 30.1dBi Parabolic Shielded Antenna

(0)No Reviews yet
  • SKU: PS-5800-29-06-DP
US$‎266.00
  • Manufacturer: ALGcom
  • Data Sheet: Download
1 in stock
College Station
1 In stock

Product Information

ALGcom PS-5800-29-06-DP

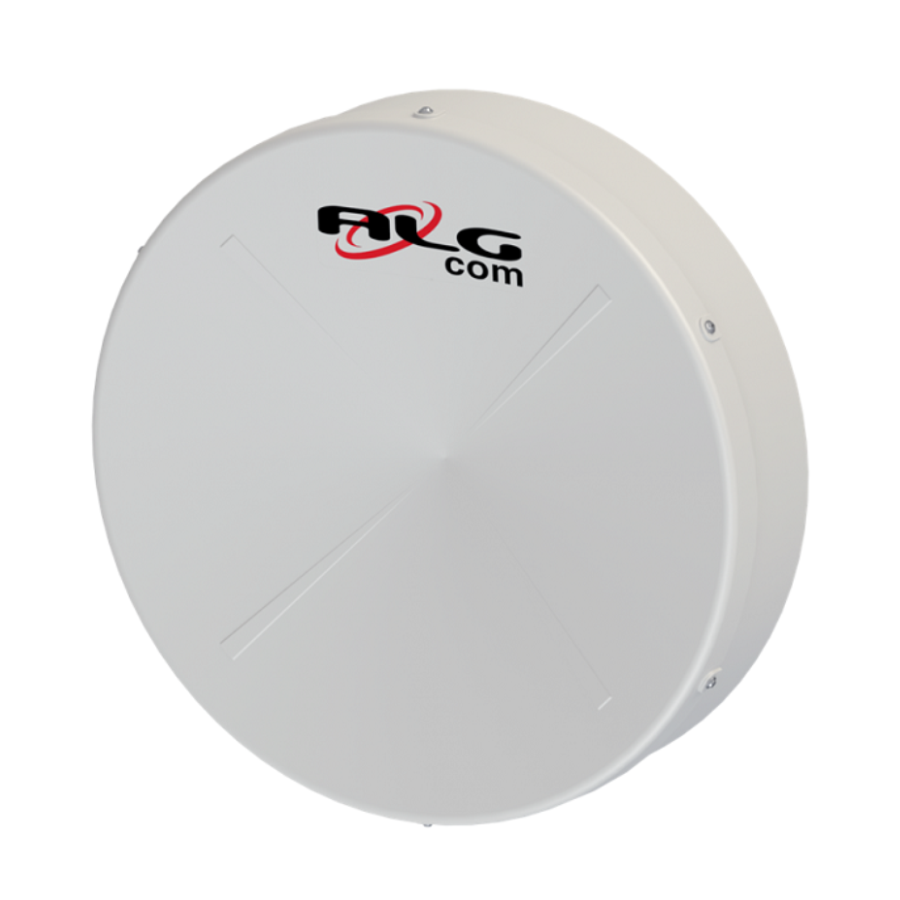

5.8GHz 30.1dBi Parabolic Shielded Antenna

ALGcom Parabolic Shielded Antennas were designed with high technology to ensure the best performance in unlicensed frequency wireless links. They are used on point-to-point wireless links and have standard fitting for coupling the ALGcom Armored Boxes, in addition to having a support that allows for the easy link alignment.

ALGcom Parabolic Shielded Antennas have excellent noise immunity thanks to their side shielding.

DUAL SLANT LINKS +/-45º

Better Flexibility in dual polarized links with possibility of installation - V/H or +/- 45° Slant.

EXCELLENT SHIELDING

ALGcom Parabolic Shielded Antennas have excellent noise immunity thanks to their side shielding.


Features:

  • 100% Aluminum Structure.
  • VSWR and isolation 100% verified. Technical report is included.
  • Projects are designed with computational tools that allows ALGcom to optimize the radiation efficiency and evaluate the mechanical structure.
  • Complete range of accessories to suit all applications and ensure the best link performance.
  • All models approved by Anatel 3 years warranty

Specifications

Specifications PS-5800-29-06-DP

LINKPoint to Point
FREQUENCY5.8 GHz
FREQUENCY OF OPERATION5.25 - 5.875 GHZ
DIAMETER0.6 m
DISTANCE PTPUp to 30 km
GAIN 30.1 dBi
MID POTENCY ANGLE 6.2
FRONT TO BACK RELATION >48dB
CROSS ISOLATION POLARIZATION>30dB
POLARIZATIONDual (V & H) or Slant (+/-45)
CONNECTION SMA reverse female
WEIGHT14.33 lbs
DIMENSION27.68" H x 18.35" W x 7.95" D
WARRANTY 3 Years
