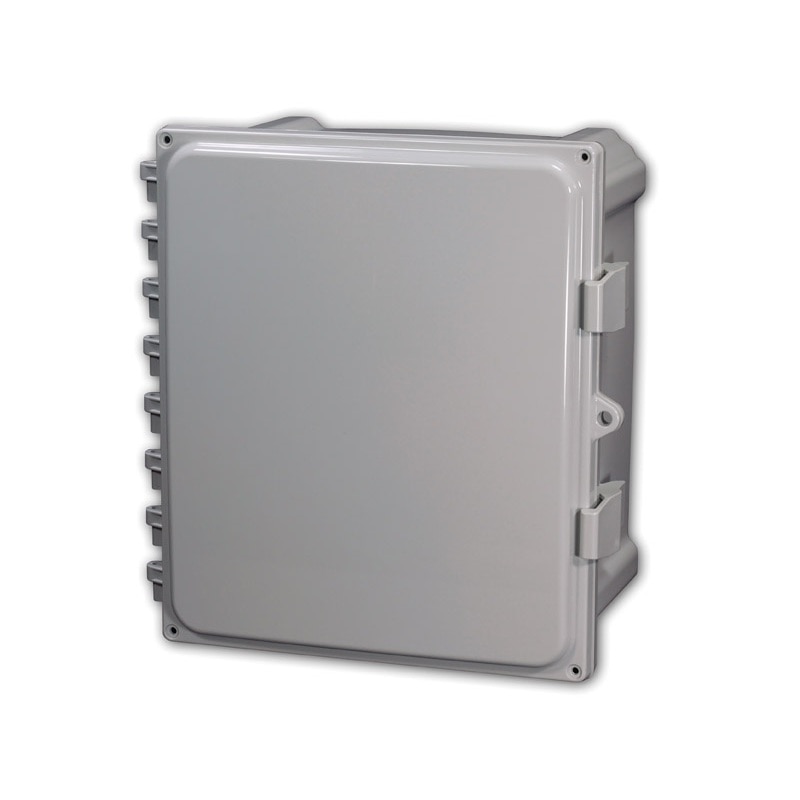

Attabox 24x24x10 Polycarbonate Enclosure (Opaque Cover)
- SKU: AH242410
US$712.50 US$891.84
- Manufacturer: ATTABOX
- Spec Sheet: Download
Product Information
Attabox AH242410
Heartland 24 x 24 x 10 inches AH242410 Enclosure (Opaque Cover)
AH242410 - Polycarbonate Enclosure with Opaque Cover
Attabox AH242410 for UL/cUL 508A & 50e certifications for types 4X, 4, 12 and 3R
Features:
- Type 3R, 4, 4X, 12
- F1 UV-light
- 5VA Flammability
- Ul 508 a & UL 50E available Industrial control panel storage
- IP 68 Protection input
- Ul 1741 compatible for solar energy applications
- High impact polycarbonate
- Cover and transparent opaque
Specifications
Specifications AH242410
| Material (Box & Cover) | Polycarbonate with UV inhibitors |
| Cover Screw Size | #10-32 x 5/8 |
| Cover Screw Material | 304 Stainless Steel |
| Back Panel Screw Size | #10-32x3/8 |
| Cover Screw Torque | 20-24 in.-lbs. |
| Gasket Material | Neoprene rope style |
| Hinge and Latch Hardware | Polycarbonate with UV inhibitors |
| Metal Inserts | All threaded brass inserts accepting #10-32 screws |
| Mounting Bosses | Panel mounting capability for fixed rear panel |
| Mounting Feet Inserts | N/A |
| Mounting Feet Torque | 14-16in.-lbs |
| Side Mount Solutions | Variable height side mount capability |
| Soft Edge Design | Rounded edges, minimal protrusions or exposed pocket areas for assembly of dust and debris |
| INDUSTRY STANDARDS | |
| Chemical Resistance | Provide Link to Chemical Resistance Charts |
| Flammability Rating | UL94-5VA |
| Self Extinguishing | Non-halogenated, non-flame propagating |
| Temperature Range | (-20°F to +240°F) (-29°C to +115°C) |
| UL/cUL File # | E319779 |
| Impact Rating (IK10) | No |
| CSA Std. C22.2 File # | No |
| IEC 60529 Ratings | IP66 |
| NEMA Ratings (UL508A, UL50 & UL50e) | 1, 3R, 4, 4X, 12 |
| NFPA No. 101 Flame Spread | N/A |
| Outdoor UV Exposure (UL 746C) | (f1) Rated |
| Plenum Space Rating (UL 2043) | No |
| UL 1741 File # | No |
