Adtran Bluesocket 6120 Wi-Fi 6 (802.11ax), Outdoor 2x2:2 Access Point

(0)No Reviews yet
  • SKU: 1700973F1
$995.00
  • Manufacturer: Adtran
  • Data Sheet: Download

Out of Stock

 Open chat or call us for stock status

Product Information

Adtran 1700973F1

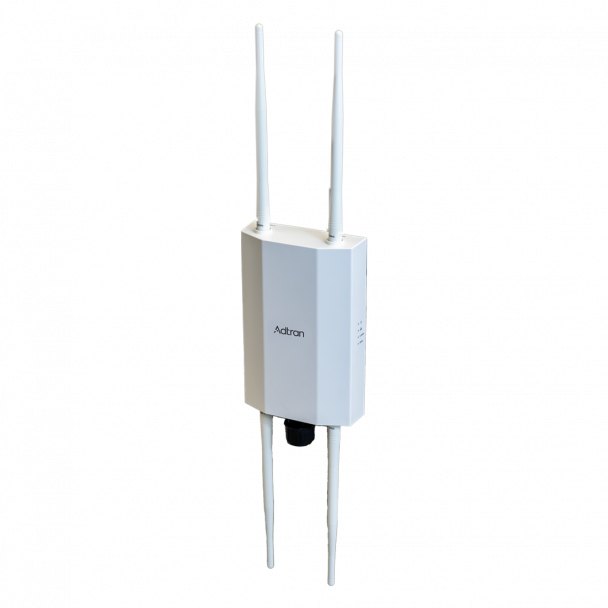

Bluesocket 6120 Wi-Fi 6 (802.11ax), Outdoor 2x2:2 Access Point

The Bluesocket 6120 outdoor access point offers enterprise-grade performance and reliable coverage in high-density wireless environments, such as arenas, conference centers, shopping malls, and other high-traffic areas. It supports two transmit and receive streams providing data rates up to 1.77 Gbps per AP. In addition, the Bluesocket 6120 includes four SMA-type external antennas with up to 5dBi peak gain and is fully functional when powered by an 802.3af PoE solution. Note: an on-premises or an Elite Cloud license is required.





Features:

  • Enterprise-class Wi-Fi 6 (802.11ax) Outdoor Access Point
  • Full 2x2:2 SU & MU-MIMO Performance, Offering Data Rates Up to 1.7 Gbps Per Radio
  • Bidirectional OFDMA Utilizes Air Resource for Access Points and Client Device Efficiency
  • BSS Coloring Technology to Uniquely Distinguish Traffic for Higher Efficiency in Dense Deployments
  • Fully Functional with 802.3at PoE+
  • Dynamic RF For Automatic Channel, TX Power, and Neighbor Discovery
  • Provides Class of Service Levels for Prioritizing Multi-Users and Multiservices
  • Deliver High-Resolution Content or Multiple IP Surveillance Over Wireless Transmission
  • Stateful Firewall at the Edge and WPA3 Encryption for Added Security
  • Extreme Weather Housing with IP67 Enclosure Rating
  • Fully Compliance with Wi-Fi 6 Standards and Backwards Compatible with Wave2/ac/a/b/g/n Client Devices

Specifications

Specifications 1700973F1

Interface● 1 – 10/100/1000/2500Mbps Base-T RJ-45
Access Point Type● Outdoor, Dual Radios Concurrent ● SU-MIMO z Two (2) 2.4GHz Spatial Stream and Two (2) 5GHz Spatial Streams Totaling 1.2 Gbps z MU-MIMO z Two (2) 2.4GHz Spatial Streams Up to .574 Gbps z Two (2) 5GHz Spatial Streams Up to 1.20 Gbps ● 5GHz/2.4GHz 802.11a/b/g/n/ac 1x1 Selectable Scanning Radio Available
Radio Frequency● 2.4GHz: 2400MHz ~ 2482MHz, ● 5GHz: z 5150MHz ~ 5250MHz z 5250MHz ~ 5350MHz z 5470MHz ~ 5725MHz z 5725MHz ~ 5850MHz
Antenna● 4 X SMA Type Interfaces ● 2.4GHz: Two (2) Detachable 5.0dbi ● 5GHz: Two (2) Detachable 5.0dbi ● Alternative Solution to be Compatible With SA2216 and SA5219 Sector Antennas
Security● WPA3 Open/OWE (Opportunistic Wireless Encryption) ● WPA/WPA2/WPA3-Personal ● WPA/WPA2/WPA3-Enterprise (802.1X) ● 802.1X Port-Based Authentication
Power● 802.3at (PoE+) Compliant ● Power over Ethernet ● Proprietary 48V-54V ● Max Power: 15.9 Watts
Chassis● Plastic Enclosure ● Dimensions: 7.48 in x 4.88 in x 1.85 in (19.0 cm x 12.4 cm x 4.7 cm) (H x W x D) ● Weight: 8 lbs. (3.62 Kg)
Environment● Operating Temperature: -4°F to 140°F (-20° to 60°C) ● Storage Temperature: -22°F to 176°F (-30°C to80°C) ● Relative Humidity: Up to 90%, Non-Condensing ● Environment Protection Level: IP67 ● ESD Protection z Contact: 4KV z Air: 8KV
Agency Approvals● Electrical/Safety Compliance z UL 1950
Radio Approvalsz FCC Part 15 B z FCC Part 15.247 z FCC Part E 15.407 z FCC Part 15.107 z FCC Part 15.109
Warranty● 1-Year Warranty
