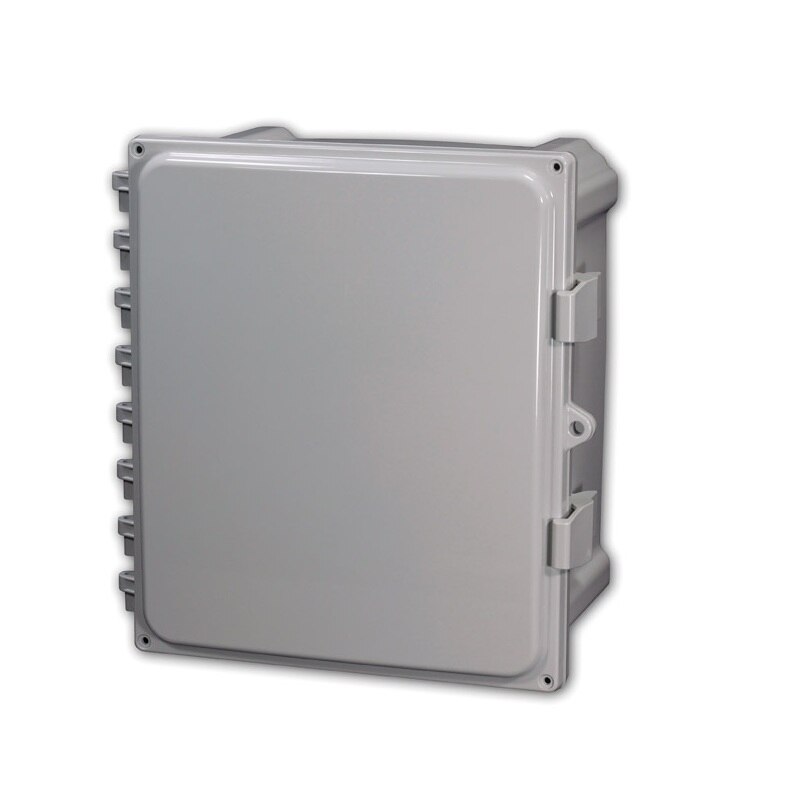

Attabox Heartland 20 x 16 x 8 inches AH20168 Enclosure (Opaque Cover)

(0)No Reviews yet
US$‎397.99 US$‎498.17
  • SKU: AH20168
  • Manufacturer: ATTABOX
  • Data Sheet: Download
8 in stock
College Station
8 In stock

Product Information

Attabox AH20168

Heartland 20 x 16 x 8 inches AH20168 Enclosure (Opaque Cover)

Opaque Cover Configuration (Hinged, Latched, Padlockable)


  • Size: Inches: 20 x 16 x 8 in MM: 508 x 406 x 203 mm
  • Ul 508 a & UL 50E available Industrial control panel storage
  • IP 68 Protection input
  • Ul 1741 compatible for solar energy applications
  • High impact polycarbonate
  • Cover and transparent opaque


Specifications AH20168

Material (Box & Cover) Polycarbonate with UV inhibitors
Cover Screw Size#10-32 x 5/8
Cover Screw Material304 Stainless Steel
Back Panel Screw Size#10-32x3/8
Cover Screw Torque20-24 in.-lbs.
Gasket MaterialPoured polyurethane seamless gasket
Hinge and Latch HardwarePolycarbonate with UV inhibitors
Metal InsertsAll threaded brass inserts accepting #10-32 screws
Mounting BossesPanel mounting capability for fixed rear panel
Mounting Feet Inserts1/4-20x1/2
Mounting Feet Torque14-16in.-lbs
Side Mount SolutionsVariable height side mount capability
Soft Edge DesignRounded edges, minimal protrusions or exposed pocket areas for assembly of dust and debris

Chemical ResistanceProvide Link to Chemical Resistance Charts
Flammability RatingUL94-5VA
Self ExtinguishingNon-halogenated, non-flame propagating
Temperature Range(-20°F to +240°F) (-29°C to +115°C)
UL/cUL File #E319779
Impact Rating (IK10)No
CSA Std. C22.2 File #No
IEC 60529 RatingsIP66
NEMA Ratings (UL508A, UL50 & UL50e)1, 3R, 4, 4X, 12
NFPA No. 101 Flame SpreadN/A
Outdoor UV Exposure (UL 746C)(f1) Rated
Plenum Space Rating (UL 2043)No
UL 1741 File #No
