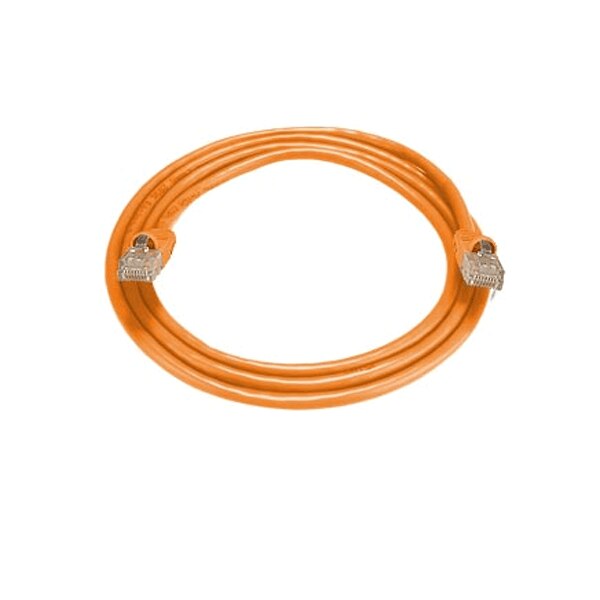

Primus cable Patch Cable, Cat 6, Shielded, 7 ft. 550Mhz, snagless, Orange
- SKU: CAT6SH-7OR
$9.05
- Manufacturer: Primus Cable
- Data Sheet: Download
Product Information
Patch Cable, Cat 6, Shielded, 7 ft. 550Mhz, snagless, Orange
Applications
- 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3)
- 4/16 Mbps Token Ring (IEEE 802.5); 100 VG-AnyLAN
- 100 Mbps TP-PMD (ANSI X3T9.5); 55/155 Mbps ATM
- T1 Voice
Cable Features
- Speeds up to 550MHz
- Meets or Exceeds CAT6 T568C.2 Standards
- Molded Strain-Relief Boot Design
- Available in Black
- Available in Multiple Lengths
- PoE and PoE+ Ready
- Backwards Compatible to Category 5E, 5
Compliance
- ANSI/TIA-568-C.2 Category 6
- PVC Jacket
- CMX Rated
- RoHS Compliance for the Requirement of European Union Issued Directive 2002/95/EC
Electrical Test
- 100% open short & miss wire test
- Insulator Resistance: DC300V 10 Mohm min.
- Connector Resistance: 2 ohm max.
Specifications
Specifications CAT6SH-7OR
| Conductor Size | 24AWG |
| Conductor Material | Stranded Bare Copper |
| Number of Conductors | 8 Conductors |
| Number of Pairs | 4 Pairs |
| Outer Jacket Material | PVC (Complies RoHS) |
| Contact Material | Copper |
| Contact Plating | Gold Plated |
