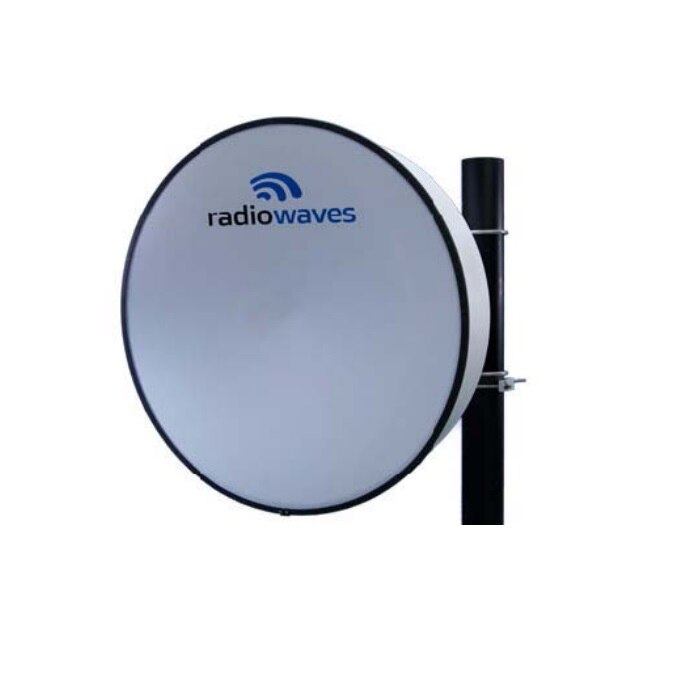

Cambium 3' ANT,SP,26GHz,RFU-C TYPE&UBR220 - Radiowave
- SKU: N260082D036A
US$1,748.25
- Manufacturer: Cambium Networks
Product Information
Cambium Networks N260082D036A
3' ANT,SP,26GHz,RFU-C TYPE&UBR220 - Radiowave
Specifications
Specifications N260082D036A
| alpha frequency | 26 GHz |
| front-to-back ratio (dB) | 72 dB |
| mounting hdw included (Y/N) | N |
| maximum power input (W) | N/A |
| polarization | horizontal or vertical |
| lightning protection | DC ground |
| vertical tilt (deg) | 0 deg |
| antenna diameter (ft) | 3' |
| radome (Y/N) | N |
| antenna size range | 2 ft to 3 ft |
| frequency range | 25000-26950 |
| dB gain range | 40.0 + |
| gain | 44.6 dBi |
| frequency (bandwidth) | 24.25-26.5 GHz |
| VSWR | <1.37:1 |
| connector | RFU-C type & UBR220 |
| wind survival w/o ice (MPH) | 125 MPH |
| beamwidth (deg) | 1 deg |
| Depth | 40" |
| Width | 17" |
| Height | 44" |
| Weight | 81 LB |
