Cambium cnRanger Tyndall 2.5GHz CAT4 14dBi SM Band 41 LTE

(0)No Reviews yet
  • SKU: 2LTE-SM-101
  • Manufacturer: Cambium Networks
  • Data Sheet: Download

Out of Stock

Call for Availability

Product Information

Cambium Networks 2LTE-SM-101

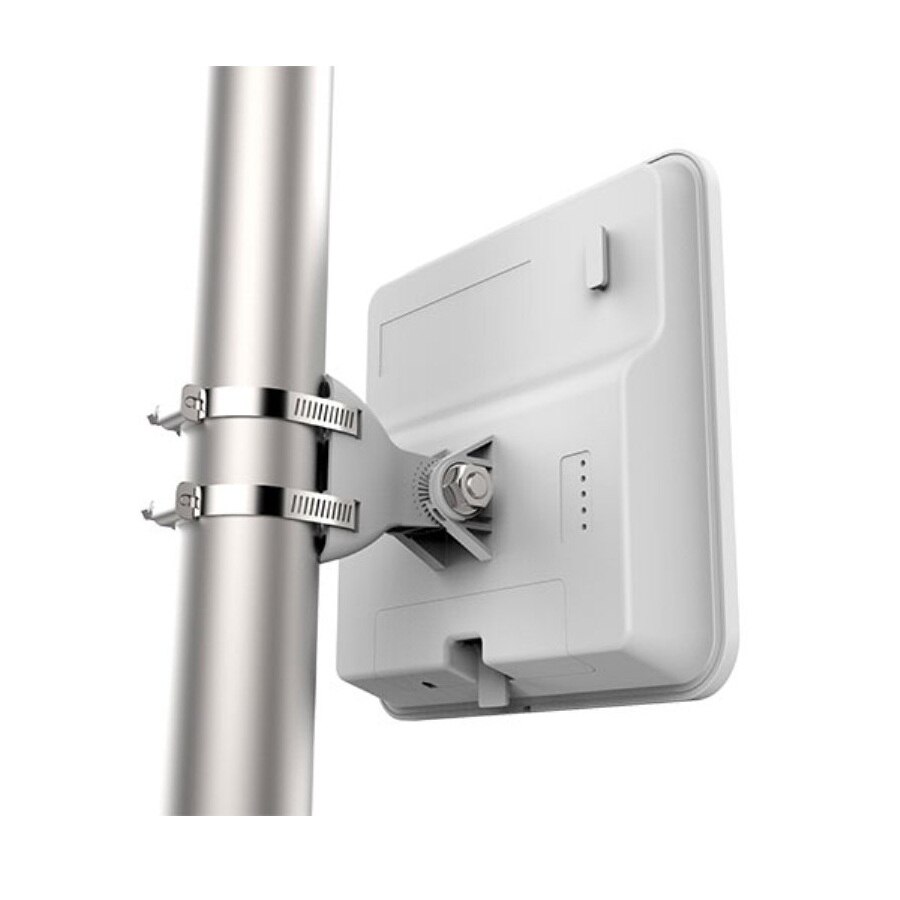

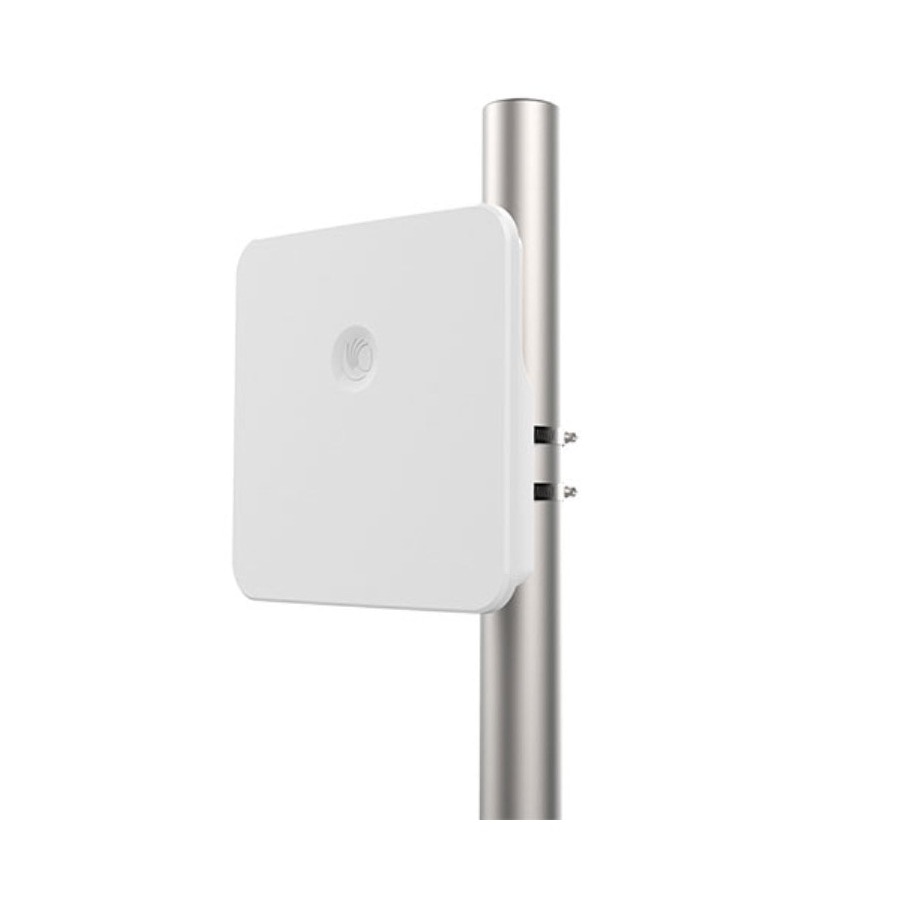

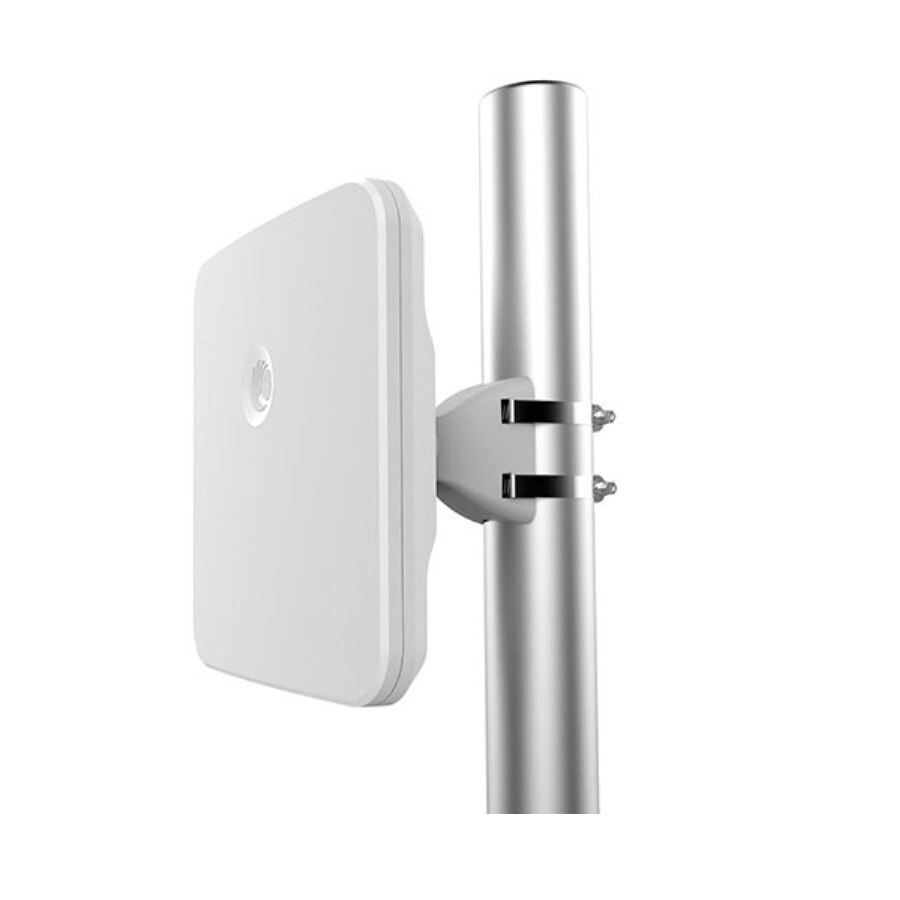

cnRanger Tyndall 2.5GHz CAT4 14dBi Subscriber Module Band 41 LTE (PSU Only)

The Cambium cnRanger™ Tyndall Subscriber Module Fixed LTE wireless platform from Cambium Networks substantially increases range and coverage, while reducing the cost and complexity typically associated with LTE networks.


  • LTE Optimized for Fixed Wireless Broadband
  • High power transmitter provides enhanced uplink
  • Reliable yet cost effective subscriber for cnRanger system
  • Easy installation, with “Point and Go” configuration and provisioning


Specifications 2LTE-SM-101

MAC (Media Access Control) Layer TDD-LTE Advanced Release 10
Protocols UsedIPv4, UDP, TCP, IP, ICMP
Network ManagementHTTP, HTTPS, SSH, cnMaestro
Ultimate Sensitivity-98 dBm
Channel Spacing1MHz as specified in the BBU
Frequency RangeLTE Band 38: 2570 - 2620 MHz, LTE Band 40: 2300 - 2400 MHz, LTE Band 41: 2496 - 2690 MHz
Channel Width5 MHz*, 10 MHz, 15 MHz*, 20 MHz
AuthenticationSIM authentication via BBU, cnMaestro or Web GUI provisions BBU with SIM information
Link Budget
Transmit Power Range66 dB dynamic range
Maximum Transmit Power26dBm
Surge SuppressionEN61000-4-5: 1.2us/50us, 500 V voltage waveform
EnvironmentalIP 55
Temperature/Humidity-40°C to +60°C (-40°F to +140°F), 5-95% non-condensing
Weight (w/included mount)4.4 lbs (2 kgs)
Dimensions (HxWxD)10.2" (H) x 10.2" (W) x 3.6" (D) (260 mm x 260 mm x 92 mm)
Wind Survival190 Km/Hr
Pole Diameter Range (w/included mount)1.5" to 3.0" (38 to 76 mm)
Power Consumption7.6 W
Power Supply30 V PoE
Encryption AES-128 and SNOW 3G
Integrated Antenna Peak Gain15 dBi
3 dB Beamwidth - Azimuth30 degrees
3 dB Beamwidth - Elevation30 degrees
PolarizationSlant, +/- 45 Degrees
Front-to-Back Isolation>25 dB
Cross Polarization>23dB
LTE Standard for EPC and eNB3GPP Release 10, category 4
Default Configuration ResetSupported
