Cambium 3 GHz cnRanger 201 SM, CAT6, 21 dBi (US PSU and AC Line Cord)
- SKU: 3LTE-SM-201-US
$346.68
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks 3LTE-SM-201-US
3 GHz cnRanger 201 SM, CAT6, 21 dBi (US PSU and AC Line Cord)
The cnRanger™ Fixed LTE wireless platform from Cambium Networks substantially increases range and coverage, while reducing the cost and complexity typically associated with LTE networks.
Features:
- Category 6 High Gain CPE in 3 GHz (Bands 42, 43 and 48)
- LTE Optimized for Fixed Wireless Broadband

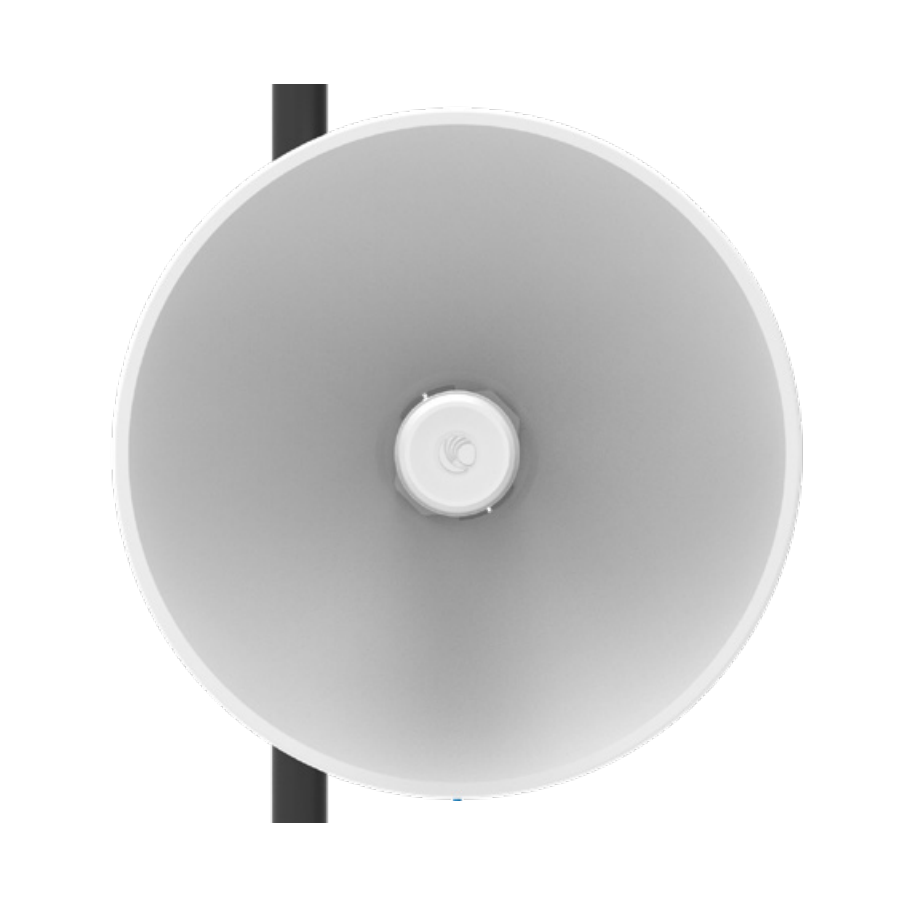

- High Gain integrated parabolic dish for extended range on 201 SMs
- Reliable yet cost effective subscriber modules for cnRanger system
- Easy installation, with “Point and Go” configuration and provisioning
Specifications
Specifications 3LTE-SM-201-US
| LTE UE Type | LTE Category 6 |
| Spectrum | |
| Channel Spacing | 1 MHz as specified in the BBU |
| Frequency Range | LTE Band 42: 3400-3600 MHz LTE Band 43: 3600-3800 MHz LTE Band 48: 3550-3700 MHz |
| Channel Width | 5 MHz*, 10 MHz, 15 MHz, 20 MHz |
| Interface | |
| MAC (Media Access Control) Layer | TDD-LTE Advanced Release 10 |
| Protocols Used | IPv4, IPv6, UDP, TCP/IP, ICMP |
| Network Management | HTTP, HTTPS, SSH, Cambium Networks cnMaestroTM |
| MTU | 1516 bytes |
| Security | |
| Encryption | AES-128 and SNOW 3G |
| Authentication | SIM authentication via BBU, cnMaestro or Web GUI provisions BBU with SIM information |
| Performance | |
| HARQ | Yes |
| Ultimate Sensitivity | -98 dBm |
| Physical | |
| Surge | Suppression |
| Environmental | IP67 |
| Temperature / Humidity | -40°C to 55°C (-40°F to 131°F), 0-95% non-condensing |
| Weight | 3.2 kg (7 lbs) |
| Wind Survival | 200 kph (124 mph) |
| Dimensions (H x W x Depth) | 450 mm dia x 300 mm (17.7 in. dia x 11.8 in.) |

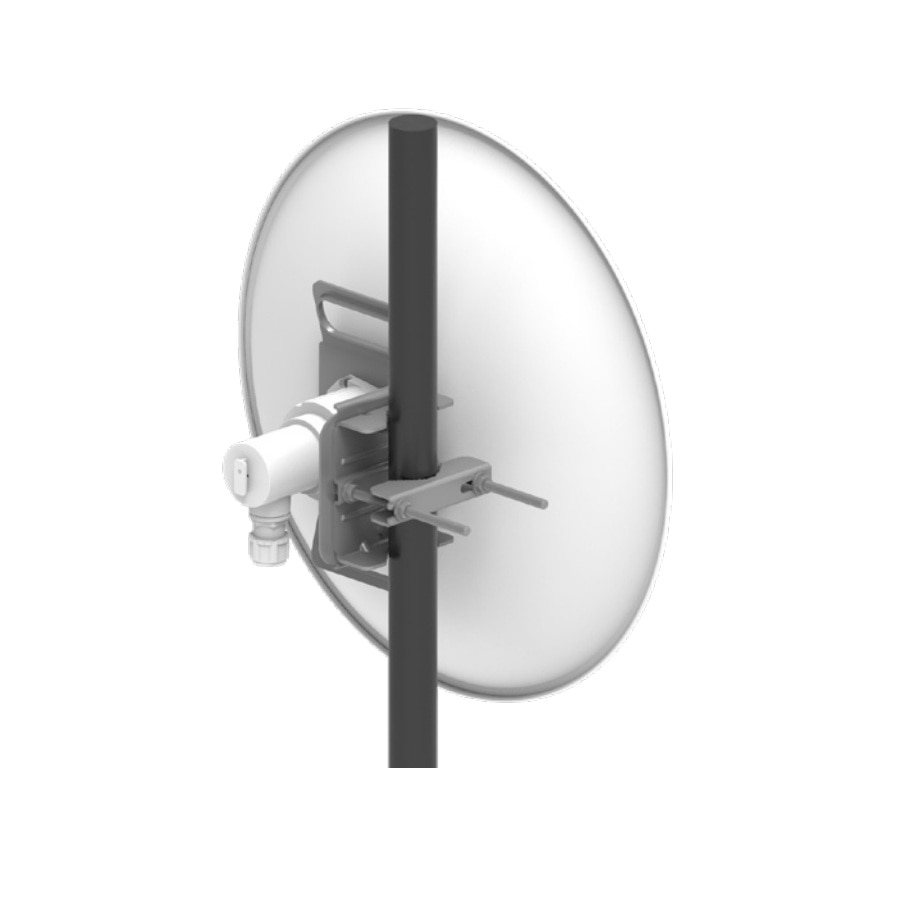

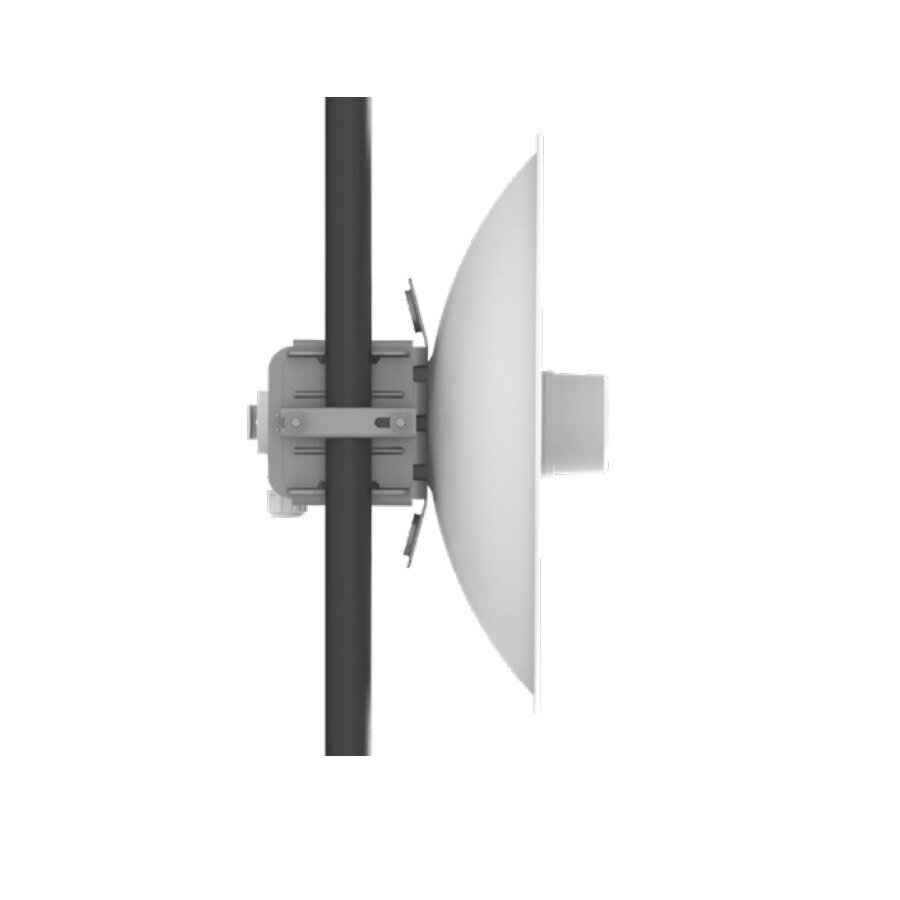

| Pole Diameter Range (w/ included mount) | 38 mm to 76 mm (1.5 in to 3 in) |
| Power Consumption | 9 W max |
| Input Voltage | 30 V PoE |

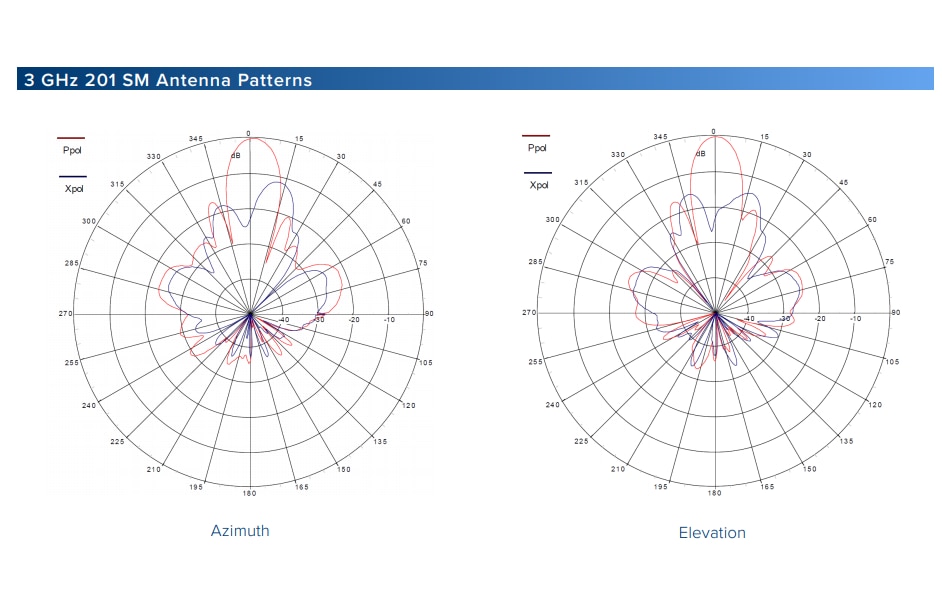

| Antenna | |
| Integrated Antenna Peak Gain | 21 dBi |
| 3 dB Beamwidth - Azimuth | 12º |
| 3 dB Beamwidth - Elevation | 12º |
| Polarization | Slant, +/- 45 Degrees |
| Front-To-Back Isolation | > 30 dB |
| Cross Polarization | > 20 dB |
| Transmit Power Range(to EIRP limit by region) | 66 dB dynamic range |
| Maximum Transmit Power | 23 dBm |
| Certifications | |
| ISED Canada | TBD |
| FCC ID | Z8H89FT0060 |
| ETSI | TBD |
