Cambium Gigabit Surge Suppressor (30V)
- SKU: C000000L065A
$33.00 $52.74
- Manufacturer: Cambium Networks
- Cambium Networks 30V Gigabit Ethernet Surge Suppressor Datasheet: Download
Product Information
Cambium Networks C000000L065A

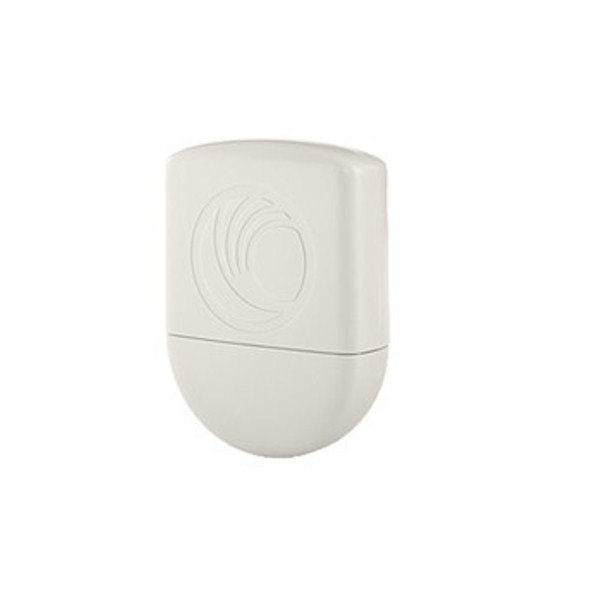

Cambium Gigabit Surge Suppressor (30V)
The most common cause of system outages or failure of mast-mounted equipment when mounted about 300 meters is a lightening strike. This Gigabit Ethernet Surge Suppressor minimizes the potential for damage from a lightening strike. This Surge Suppressor is compatible with the Cambium PMP 450 and 450b Subscriber Modules that are powered with 30V PoE injectors.
Specifications
| Transfer Rate | 1000 Base T |
| Connectors | Two x RJ-45 |
| Nominal Voltage | 30V |
| Protection Mode | Line-to-line and line-to-ground |
| Surge Arrestor | TVS Diodes (Transient Voltage Suppression for longer operational life) |
| Surge Current Rating, L-G, total | 216A, 10/1000us |
| Response time | 5 nanoseconds typical |
| Mounting | Pole mount or wall mount |
| Dimensions | 4.6 in. x 3.4 in. x 1.8 in.(118mm x 87.5mm x 46.5mm) |
| Weight | 0.34 lbs (156 gm) |
| Wind Survival | 200 mph (321 km/hour) |
| Operating Temperature | -40° F (-40° C) to +140° F (+60° C) |
| Humidity | 100% condensing |
| Environmental Protection | IP54 (Dust and Water Intrusion Protection) |
