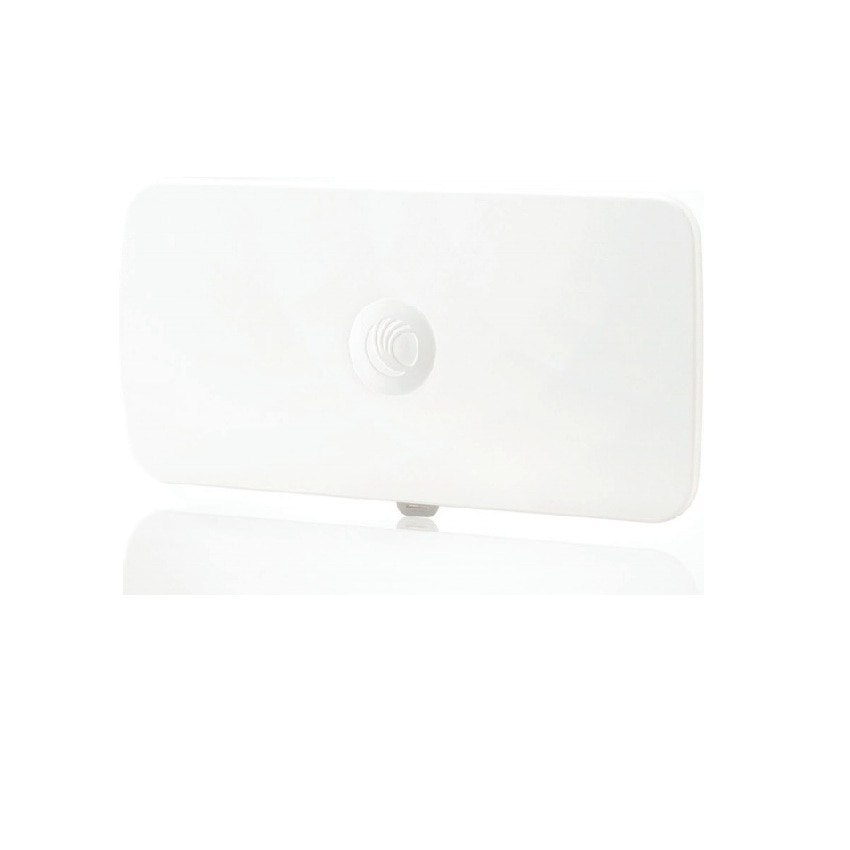

Cambium ePMP 5 GHz Force 300-16 Radio (IC) (Canada/US cord)
- SKU: C050910C114A
- Manufacturer: Cambium Networks
- Cambium Networks ePMP Force 300 Series Datasheet: Download
Product Information
Cambium Networks C050910C114A (International Version)
Cambium ePMP 5 GHz Force 300-16 Radio (IC) (Canada/US cord)
Wireless service providers and enterprises around the globe are challenged to deliver reliable connectivity in overcrowded RF environment. As spectrum increasingly becomes a scarce commodity, finding the right broadband connectivity solution is vital for all low and high density types of deployments.
Cambium Networks resolves this challenge with a breakthrough technology solution that delivers
superior performance, resiliency and reach in the most congested environments. Combining the latest 802.11AC Wave 2 chipset and the field proven TDD MAC of ePMP, the Force 300-16 offers a compelling yet affordable point to point product and a future mid gain subscriber module for the ePMP 3000 Access Point.
Force 300-16 continues the tradition of previous products with an integrated 25dBi dish with a narrow beamwidth and reliable mechanics. Supporting peak throughput greater than 500Mbps, the Force300-16 will also supports an always on spectrum analyzer and local WiFi management to take advantage of mobile installation applications.
Features:
- Cambium Networks' ePMP Force 300-16 is designed to operate in high interference environments and provides superior throughput of over 500 Mbps of real user data.
- The ePMP Force 300-16 supports channel size configuration from 20MHz up to 80MHz and modulates up to 256 QAM.
- The Force 300-16 supports a local Wi-Fi connection to allow easy installation, configuration, and monitoring from any Wi-Fi enabled device.
- The ePMP Force 300-16 supports real time spectrum monitoring without degradation in throughput
- Configurable modes of operation ensure robust adaptivity to both symmetrical and asymmetrical traffic while providing high performance and round-trip latency as low as 3-5 ms.
- QoS management offers an outstanding quality for triple play services - VoIP, video, and data - and provides three levels of traffic priority.
- With a horizontal orientation mount providing a 15 degree beamwidth and 16dBi gain, the F300-16 offers a compelling, compact subscriber or point to point solution resilient to interference.
- This platform is for the user base that wants a smaller on premises footprint while enabling high gain.
- Install is a breeze with the easy to install mount, capable of pole and wall mounting.
Specifications
Specifications C050910C114A
SPECTRUM | |
Channel Spacing | Configurable in 5 MHz increments |
Frequency Range | Wide Band Operation 4910 - 5970 MHz (Note: Allowable frequencies and bands are dictated by individual country regulations.) |
Channel Width | 20 | 40 | 80 MHz |
INTERFACE | |
MAC (Media Access Control) Layer | Cambium |
Proprietary Physical Layer | 2x2 MIMO/OFDM |
Ethernet Interfaced | 10/100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts |
Protocols Used | IPv4/IPv6 (Dual Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™ |
VLAN 802.1Q with | 802.1p priority |
PERFORMANCE | |
ARQ | Yes |
Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS0 = -89 dBm to MCS8 (256 QAM-3/4) = -66 dBm (per chain) |
Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS0 = -87 dBm to MCS9 (256 QAM-5/6) = -64 dBm (per chain) |
Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS0 = -84 dBm to MCS9 (256 QAM-5/6) = -59 dBm (per chain) |
Modulation Levels (Adaptive) | MCS0(BPSK) to MCS9 (256 QAM-5/6) |
Transmit Power Range | 0 to +29 dBm (combined, to regional EIRP limit) (1 dB interval) |
PHYSICAL | |
Surge Suppression | 1 Joule Integrated (C000000L065A - 30V Gigabit surge suppressor is recommended for optimum protection) |
Environmental | IP55 |
Temperature | -30°C to +60°C (-22°F to +140°F) |
Weight | 0.50 kg (1.1 lb) (includes mounting bracket) |
Wind Survival | 180 km/hour (112 mi/hour) |
Dimensions (Dia x Depth) | 12.4 x 25.1 x 11.9 cm (4.9 x 9.9 x 4.7 in) – with mounting bracket attached |
Pole Diameter Range | 1 – 1.6 in (2.5 – 4.1 cm) with included clamp; up to 2.25 in (5.7 cm) with larger clamp |
Power Consumption | 12 Watts |
Input Voltage | 30 Volts |
SECURITY | |
Encryption | 128-bit AES (CCMP mode) |
CERTIFICATIONS | |
FCCID | Z8H-89FT0016** |
Industry Canada Cert | 109W-0016** |
CE | EN 301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz)** |
