Cambium ePMP Force 400 Series Spares Kit
- SKU: N000900L061A
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks N000900L061A

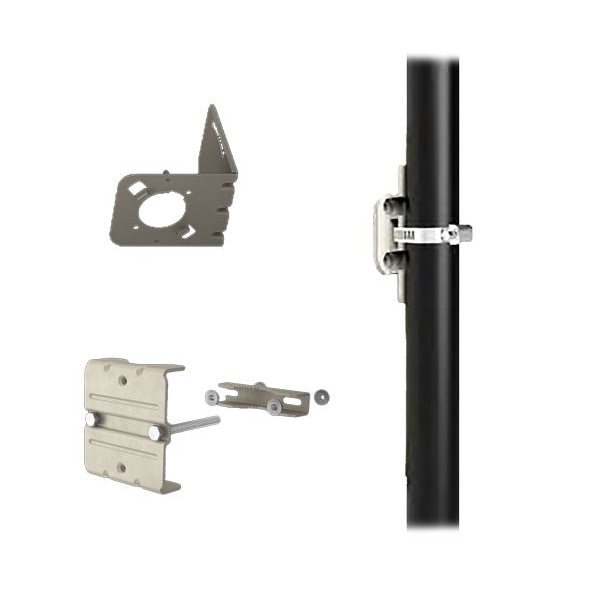

ePMP Force 400 Series Spares Kit
The Force 400 Series is the ideal solution for service providers looking to deliver high capacity access services to Enterprise and residential customers. It also serves as a low-cost backhaul for MicroPOP’s and outdoor Wi-Fi access points that require lots of capacity at moderate range without the overhead of licensed microwave. With an integrated SFP port and optional GPON ONU module, the Force 425 makes a great fiber extension to reach places where fiber cannot.
The Force 400 Series delivers Gbps performance with less than 5 ms latency.
The Force 400 series has enterprise grade security with 128-bit AES over-the-air encryption (256-bit AES where export rules allow), secure management interfaces with roles-based authentication and standards-based device authentication including RADIUS support.
Features:
- Industry first Point-to-Point solution based on 802.11ax delivering up to Gbps capacity
- High-Capacity Enterprise Access
- Low-Cost WISP Backhaul
- Wi-Fi hotspot backhaul
- GPON last mile
Specifications
Specifications N000900L061A
| Channel Width MHz | 20 | 40 | 80 |
| Proprietary Physical Layer | 802.11ax, 2x2 MIMO/OFDM |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | Wide Band Operation 4910 - 6135 MHz |
| MAC Layer (Media Access Control) | Cambium Proprietary |
| Ethernet Interface | 100/1000 BaseT, Compatible with Cambium PoE & Standard PoE pinouts; 10 Gigabit SFP cage for optional SFP modules Protocols |
| Used | IPv4/IPv6 (Dual Management Stack), UDP, TCP, ICMP, SNMPv2c, NTP, STP, IGMP, SSH |
| Network Management | IPv4/IPv6, HTTPs, SNMPv2c, SSH, Cambium Networks CnMaestro™ |
| VLAN | 802.1Q with 802.1p priority |
| Performance | |
| ARQ | Yes |
| Maximum Capacity | 1 Gbps |
| Latency | < 5 ms |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS 0 = -93 dBm to MCS 11 (1024 QAM-5/6) = -63 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS 0 = -90 dBm to MCS 11 (1024 QAM-5/6) = -60 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS 0 = -87 dBm to MCS 11 (1024 QAM-5/6) = -57 dBm (per chain) |
| Modulation Levels (Adaptive) | MCS 0 (BPSK) to MCS 11 (1024 QAM-5/6) |
| Transmit Power Range | +3 to +28 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Physical | |
| Connectors | 1 x RJ-45, 1 x SFP, 2 x RP-SMA |
| Surge Supression* | 1 Joule Integrated |
| Environmental | IP67 |
| Temperature | -30°C to 65°C (-22°F to 149°F) |
| Weight | 3 kg (6.6 lbs) |
| Wind Survival | 200 km/hour (124 mph) |
| Dimensions(H x W x D) | 30 x 30 x 30 cm (12 x 12 x 12 in.) |
| Power Consumption | 28 W |
| Input Voltage | 802.3at or Passive PoE 44-59 V |
| Security | |
| Encryption | 128-bit Over-the-Air Encryption (256-bit AES where export rules allow - ROADMAP Feature) |
| Certifications | |
| FCC Regulatory Part Number | C058940P122A |
| FCC ID** | Z8H89FT0062 |
| ETSI/ROW Regulatory Part Number | C050940P021A |
| Industry Canada Cert** | 109W-0062 |
| CE | EN 301 893 V2.1.1 (5.4 GHz), EN 302 502 V2.1.1 (5.8 GHz)** |
