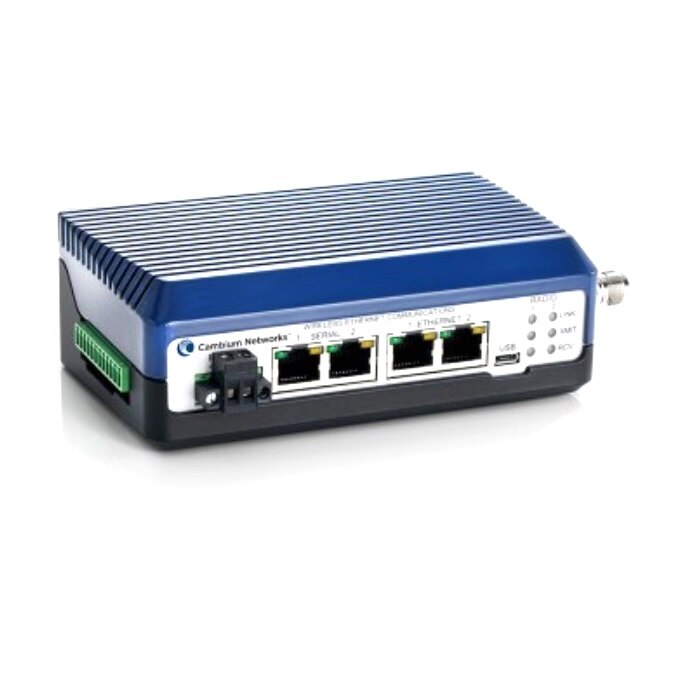

Cambium Networks N550 900 MHz Dual
- SKU: NB-N550920B-US
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks NB-N550920B-US
N550 900 MHz Dual
For outdoor critical infrastructure operations, cnReach transports process monitoring and control data from remote sensors or RTU/PLC’s back to the operations center supporting real-time automated decision making and ongoing analytics. Covering large geographic areas, hard to reach terrain and challenging spectrum environments, cnReach delivers reliable, secure connectivity to the petrochemical, electric utility, water/wastewater/stormwater and transportation industries. cnReach eases the migration to modern networks by combining legacy serial and analog/ digital I/O with TCP/IP and Ethernet connectivity
Fully integrated into a ‘single pane-of-glass’ management platform (cnMaestro™), cnReach helps bridge the IT/OT sides of complex organizations. Combining cnReach’s licensed and unlicensed narrow-band radios with Cambium Networks’ broadband technologies, industrial organizations are delivering end-to-end Industrial Internet of Things solutions today
Features:
- Licensed 900 MHz (also available: 220 MHz, 450 MHz, 700 MHz and 1400 MHz licensed options).
- Secure communications with AES 128/256-bit encryption with password authentication.
- Highly reliable communications with access point synchronization and adaptive modulation.
- Single and dual radio configurations for advanced back-to-back relay and storeand-forward applications.
Specifications
Specifications NB-N550920B-US
| Weight | 1.99 lbs |
| Dimensions (LxWxH) | 11.81 x 9.5x 3 inches |
| ISM Mode | MAS Mode | |
| Frequency Range | 902–928 MHz (915–928 MHz in Australia) | 928–960 MHz |
| Output TX Power | 10mW to 1W (10 dBm to 30 dBm) | 10mW to 4W (10dBm to 36dBm) |
| Step Size | 50mW | 50mW |
| Modulations | MSK / 2FSK / BPSK / QPSK / 8PSK / 16PSK / 16QAM / 32QAM | MSK / 4FSK / QPSK / 8PSK / 16QAM / 32QAM / 64QAM |
| Capacity* | 57 kbps up to 4.4 Mbps | 10 kbps up to 210 kbps |
| Channel Bandwidths | FHSS: 76 / 154 / 207 / 310 kHz DTS: 600 / 1200 kHz | 12.5 / 25 / 50 kHz |
| Range | Up to 110 km / 70 miles | Up to 110 km / 70 miles |
| Packet Handling | Layer 2 bridge, Layer 3 static routes, VLAN support | Layer 2 bridge, Layer 3 static routes, VLAN support |
| Error Correction | Up to 32-bit CRC, Retransmit on error | Up to 32-bit CRC, Retransmit on error |
| Data Encryption | 128/256-bit AES | 128/256-bit AES |
| Management | Web-based Interface via HTTP/HTTPS Remote Management via SNMP cnMaestro™ integration LINKPlanner Support for configuration files, remote software upgrades Built-in diagnostic tools via web interface such as RF Ping and RF Throughput | |||||
| Ethernet Interfaces | 2 x RJ-45 10/100BaseT, Full Duplex, rate auto negotiated (802.3 compliant) | |||||
| Serial Interfaces | 2 x RJ-45 RS-232/422/485, up to 230.4 kbps | |||||
| Analog/Digital I/O (optional) | 8 pins for analog input/output and digital input/output | |||||
| RF / Antenna | TNC RF connectors (1 or 2 depending on single or dual-radio configuration) | |||||
| Input Power | 10–32VDC with reverse polarity protection | |||||
| Power Consumption (12VDC average) | ISM (1W) | MAS (3W) | ||||
| Transmit | Receive | Idle | Transmit | Receive | Idle | |
| Single Radio Configuration (mA) | 611 | 266 | 194 | 495 | 380 | 210 |
| Dual Radio Configuration (mA) | 860 | 380 | 215 | 580 | 421 | 293 |
| I/O Expander (mA) | 293mA | |||||
| DIN Rail Mount | Optional | |||||
| Operating Temperature | -40ºC to 75ºC (-40ºF to 167ºF) | |||||
| Humidity | 95% operating humidity @ 60ºC non-condensing | |||||
| HAZLOC | UL-Approved to Class 1 / Div 2 | |||||
| Deployment Topologies | Point-to-Point (PTP), Point-to-Multipoint (PMP), Repeater (REP) - Single or Dual Radio | |||||
| Hardware | ||||||
| UL | Approved | |||||
| FCC ID | Z8H89FT0025 | |||||
| IC ID | 109W-0025 | |||||
