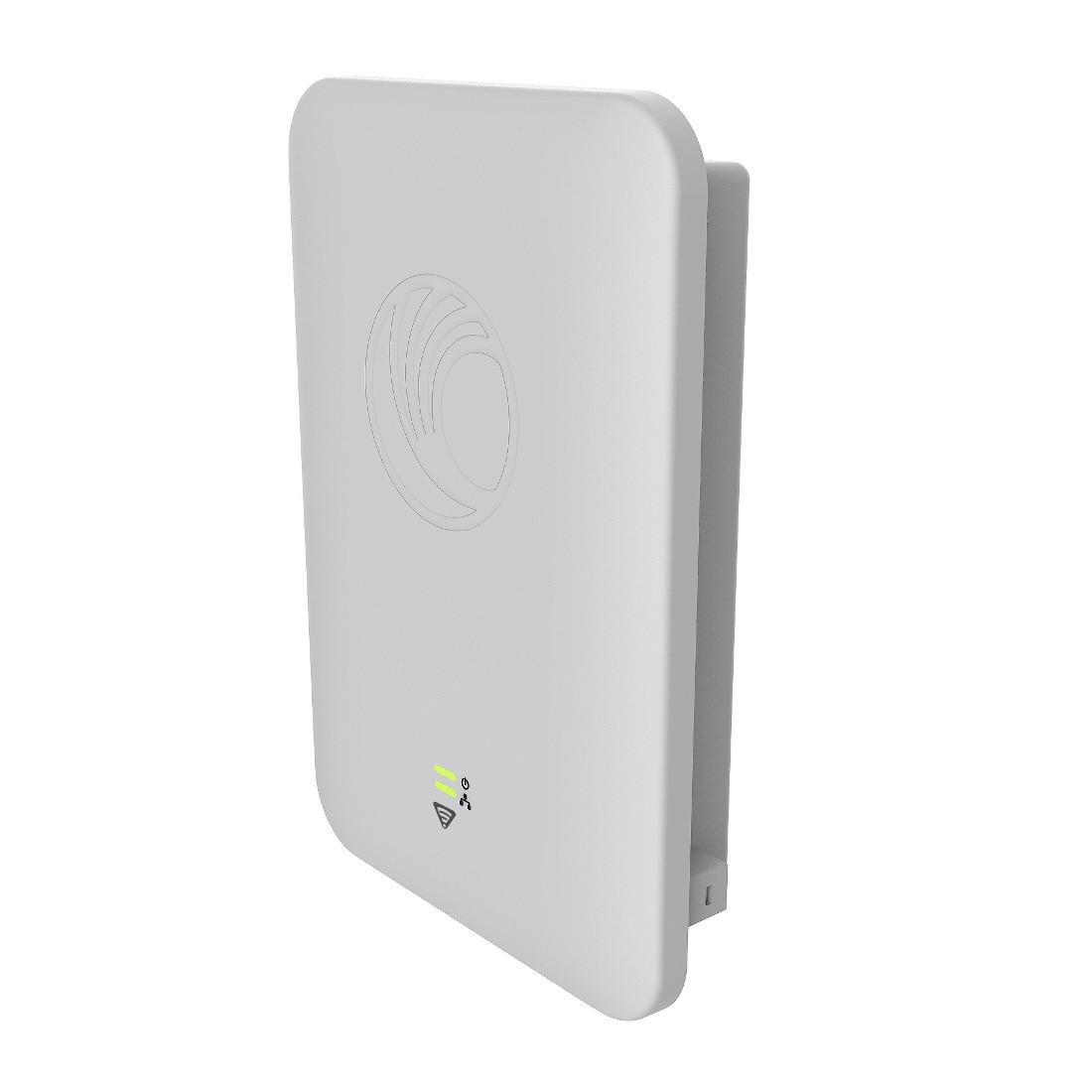

Cambium E501S-US (FCC) Outdoor 90~120 sector 802.11ac WLAN AP with Tilt bracket & PoE Injector

  • SKU: PL-501SP00A-US
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
  • Availability: 1 In Stock    (updated live)

(click to select)

Specifications PL-501SP00A-US

Frequency Bands 2.4GHz: 2.4 - 2.4835GHz Channels 1 - 13 (ETSI/CE) Channels 1 -11 (US) 5GHz: 5.15 - 5.85GHz
SSID Security WPA-2 (802.11i): WPA2-Enterprise (802.1x/EAP) and WPA2-Preshared-keys, Open
Max SSID 16
Max Concurrent Clients 256
Max Range Client: 213m (700ft); Actual range will vary based on local RF conditions and client capability Mesh: 2.4GHz: 3000m (9840ft) 5GHz: 1500m (4900ft)
Max Data Rates 1.01Gbps
Ethernet Ports Dial Gigabit Ethernet ports
Antenna Dual polarized. 2x2 MIMO. Integrated Sector antenna
Antenna Gain 2.4GHz: 10.5dBi 5GHz: 13dBi
Power Supply 56V/30W Gigabit passive PoE injector (included)
PoE OutAux port: capable of 802.3af power out or canopy power
Transmit Power 2.4GHz: 29dBm 5GHz: 28dBm
Power Consumed Typical: 8W Max: 12.95W
Dimensions 30 x 20.4 x 6.5cm (without bracket)
Weight Without Bracket: 881g With Bracket: 1063g
Operating Temperature -30 to 60°C

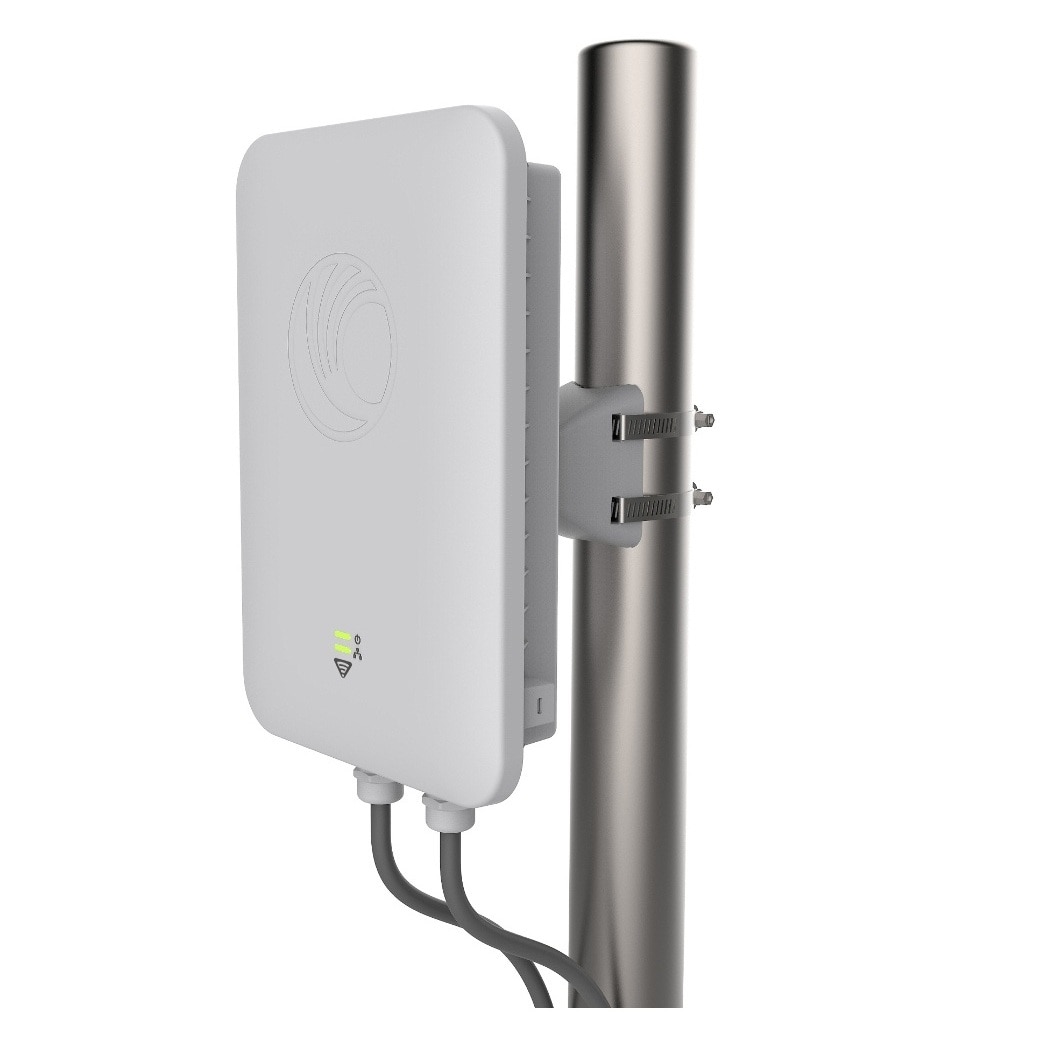

Mounting Options Pole mount bracket (included) or wall-mount (with included bracket or without)
LTE Co-Existence Special filter for rejecting interference on 2.4GHz from adjacent LTE bands 38, 40
Physical SecurityKensington Lock Bracket

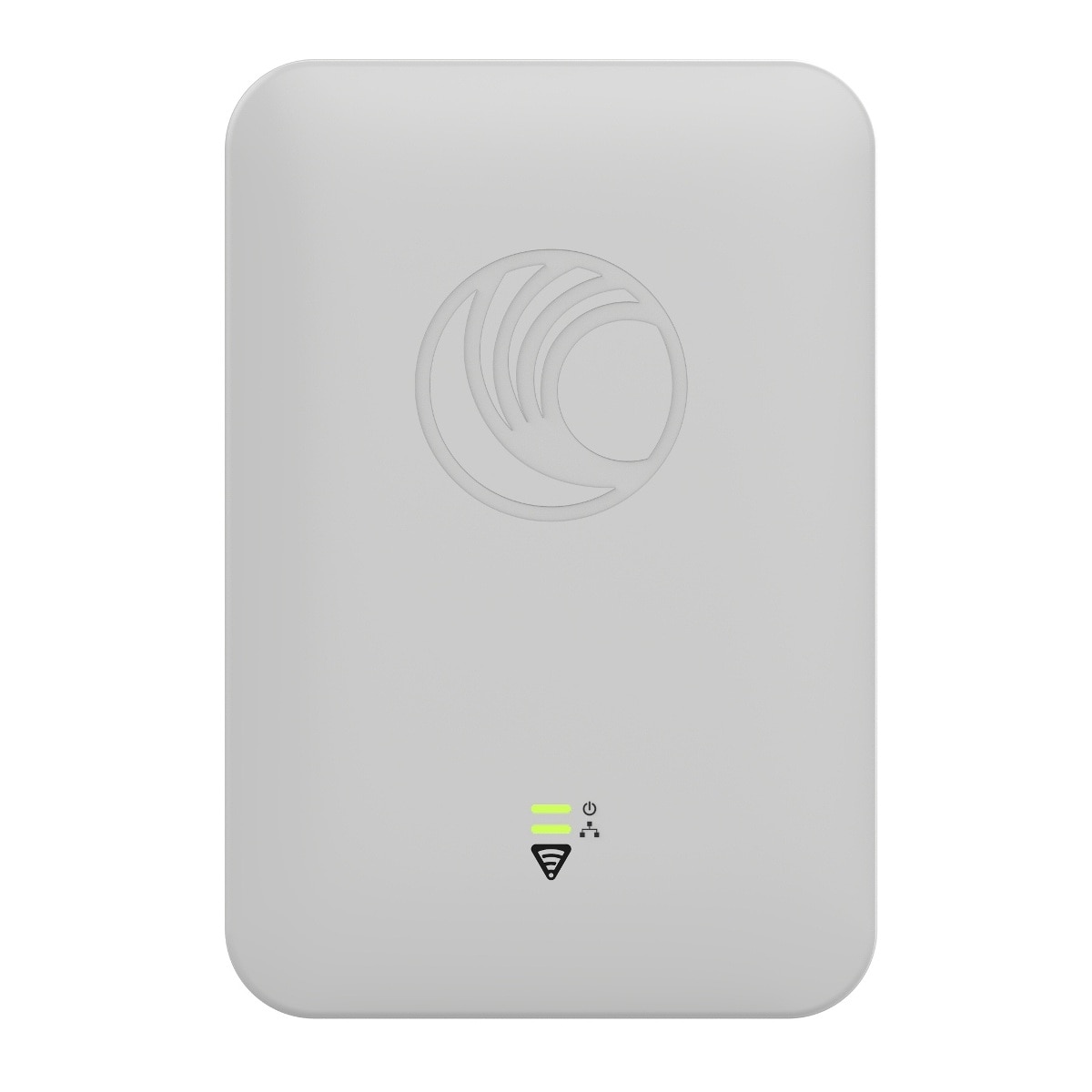

Visual Status (2) multi-color LEDs indicating Access Point and cnMaestro connectivity status

Cambium Networks PL-501SP00A-US

E501S-US (FCC) Outdoor 90~120 sector 802.11ac WLAN AP with Tilt bracket & PoE Injector

Perfect for demanding, high density applications and longer range coverage across large areas, including: industrial or education campuses, enterprise and hospitality complexes, public parks and recreational areas, or just about any demanding outdoor environment requiring cost-effective, controller managed WLAN access points.

Operational superiority - The E501S with integrated sector antenna supports 256 client associations, 16 SSIDs, WPA-2 encryption, Dynamic VLANs, DFS channels, Access Control Lists (ACL), and more. The 802.11ac E501S is the essential workhorse for today's demanding, high density outdoor Wi-Fi networks.

High performance Wi-Fi network - All cnPilot's Enterprise access points (APs) support features like controller-less roaming, dynamic channel selection, automatic transmit power control, band steering, and more - essential features for easy Wi-Fi operations.

Mesh - Rapidly setup multi-hop mesh networks either dedicating one radio (e.g.: 5 GHz) for mesh backhaul, or using both bands for client access simultaneously.

Wireless Backhaul Integration - the aux PoE port on the E501S offers PoE out, eliminating the need for a second power line - perfect for powering on a standard 802.3af camera, or on Cambium's PMP 450 or ePMP backhaul subscriber modules (SMs) for wireless backhaul enabled Wi-Fi hotspots.

Resilience - Dual on-board Active/Standby memory banks ensure higher availability. The E501S can store two versions of the software - defaulting to a working operational software if needed - reducing the likelihood of site visits and increasing network up-time.
