Cambium cnPilot e425H Indoor (FCC) 802.11ac wave 2, Wall plate WLAN AP
- SKU: PL-E425H00A-US
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks PL-E425H00A-US

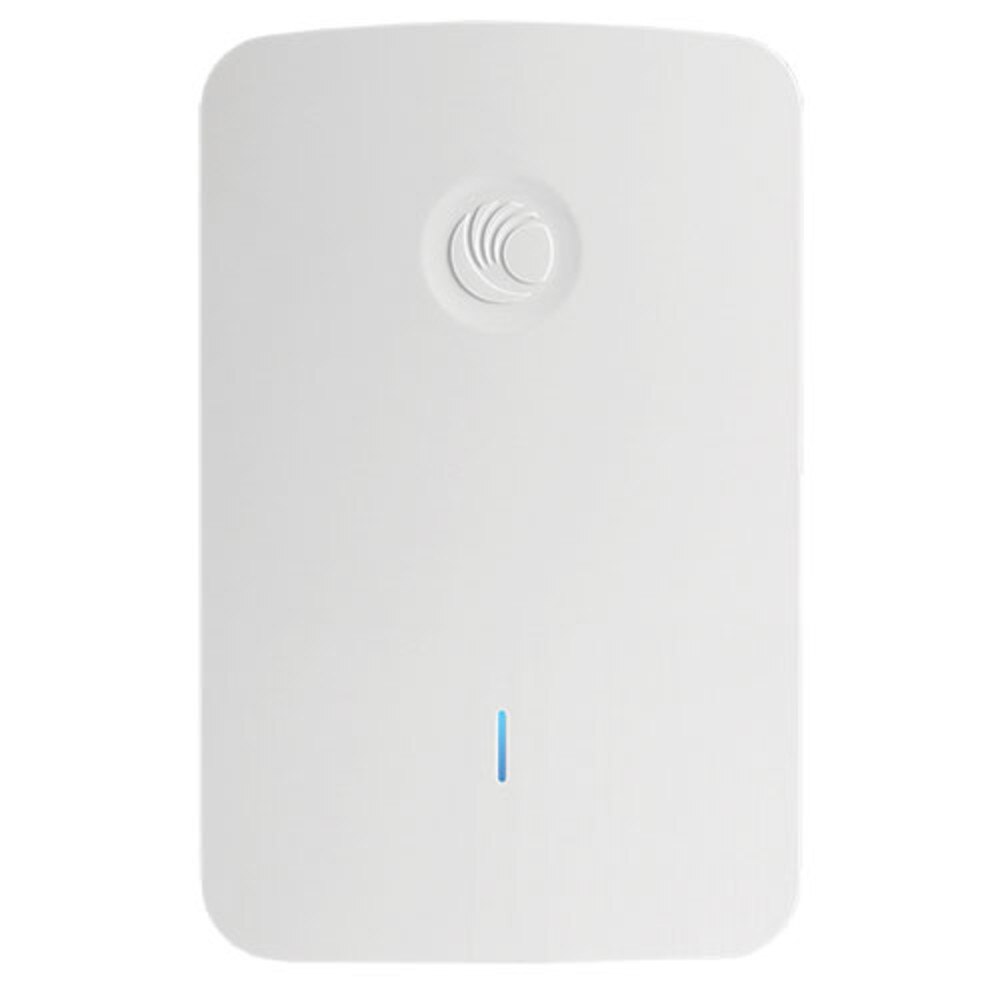

cnPilot e425H Indoor (FCC) 802.11ac wave 2, Wall plate WLAN AP w/ single-gang wall bracket
The Cambium cnPilot™ e425H, Indoor Wall Plates enterprise class indoor wall plate access point supporting 802.11ac Wave 2 standards based beamforming, is perfect for hotels and resorts, multi-dwelling units (MDUs) or just about any place indoor that needs a wall mounted AP with multiple Gig E ports to drive indoor Wi-Fi and wired port network access managed via portals.
CONTROLLER-LESS ROAMING. POWERFUL SIMPLICITY
The e425H supports network wide seamless roaming for up to 1,024 clients. Host the hotspot portal on the AP for controller-less simplicity, or on cnMaestro for a powerful network wide portal.
MONETIZE: VOUCHERS. SOCIAL LOGIN
Monetize your Wi-Fi service: cnMaestro’s guest access feature supports splash page hosting, social login and payment gateway for wired and wireless clients. Built-in power packed features available right on the controller. These features along with the ability to create time, rate and volume limited traffic profiles along with vouchers for temporary guest access makes the e425H ideal for hotels, coffee shops, campgrounds, and office guest Wi-Fi.
SERVICE AWARE WLANS. BETTER USER EXPERIENCE
Nothing is more frustrating than connecting to an AP, but not getting to the internet because the WAN link is down. When connection to a critical resource such as an external Gateway or AAA is down, the e425H monitors the uplink Gigabit interface for network outage. If an outage is detected, the impacted WLANs are disabled enabling client devices to select a neighboring AP.
WI-FI MESH. FLEXIBILITY
Meshing is supported across e425Hs as well as with any other indoor or outdoor Cambium Networks AP Enterprise AP, for a convenient way to expand Wi-Fi coverage without laying out cabling.
COVERAGE, CAPACITY. SPEED
The e425H packs strong transmit power and the flexible controls needed to control transmit power for high density deployments. Throughput management via airtime fairness, increased performance from autoRF, and higher client device speeds from band steering ensure your e425H network can adapt to the dynamics of ever changing client profiles.
HIGH DENSITY, HIGHLY AVAILABLE
A capacity of 100 max concurrent client associations, and 16 SSIDs, along with dual on-board Active/Standby memory banks ensure the e425H combines high density with high availability.
LOW TOTAL COST OF OPERATIONS (TCO) LICENSE FREE OPTION
All cnPilot access points offer total management flexibility. The e425H can be managed as a standalone access point, from an on-premises cnMaestro controller, or a cloud accessed cnMaestro account. cnPIlot access points also support AutoPilot, allowing one AP to be a controller for a small network.
ACCESSORIZE
The e425H package comes with a singlegang wall mount bracket. Optional accessories also include on-wall and dual gang wall bracket
Features:
- Zero touch onboarding, Inventorytracking
- Monitoring, Configuration, Dashboard views with alarms
- Mass upgrade, Troubleshooting
- Wireless and Wired port splash page guestportal
Specifications
Specifications PL-E425H00A-US
| ACCESS POINT | |
| US-FCC | 2400 – 2484 MHz, 5150 – 5250 MHz |
| Industry Canada (ISEDC) | 2400 – 2484 MHz, 5725 – 5850 MHz |
| EU-ETSI | 2400 – 2484 MHz, 5150 – 5250 MHz |
| ROW (individual country limits may apply. Consult DoC) | 2400 – 2500 MHz, 5150 – 5850 MHz |
| SSID Security | WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open |
| Max Phy Rate | 2.4 GHz radio: 300 Mbps 5 GHz radio: 867 Mbps |
| Ethernet Ports | Three IEEE Gigabit Ethernet auto sensing One GE is 802.3af PSE port |
| Antenna | Integrated dual polarized, omnidirectional 4dBi (2.4GHz) 4.29dBi (5GHz) |
| Max EIRP | 2.4 GHz: 25 dBm 5 GHz: 25 dBm |
| WLAN AND NETWORK | |
| Controller mode | Controller-less standalone AutoPilot heterogeneous network Cloud managed cnMaestro On-premises cnMaestro VM |
| WLAN | 100 clients, 16 SSIDs WPA-TKIP, WPA2 AES, 802.1x 802.11w PMF |
| Captive Portal | Hosted on cnMaestro Controller On-AP hosted guest portal Redirect to HTTP/RADIUS Server DNS logging |
| Authentication | Hotspot 2.0/Passpoint 2.0 802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS MAC authentication to local database or external RADIUS |
| Accounting | RADIUS accounting, multiple AAA |
| Scheduled | WLAN On/off by day, week, time of day |
| Guest Access | Vouchers, Rate Limit, Splash page hosted on AP or cnMaestro Client isolation per SSID, per network |
| Time/Data Limit | Time, Rate, Throughput limit per SSID |
| Subscriber QoS | WMM, client isolation network wide |
| Mount Options | Standard mount single gang J-box bracket included. Dual gang J-box bracket and flush box optional |
| Power | Typical, no PSE load: 9w Typical, with 802.3af PSE load: 25w Power: 802.3af or 802.3at PD PSE port: 802.3af with input 802.3at |
| Physical Environmental | USB 2.0 147mm x 94mm x 32mm 268g Kensington lock slot, secure bracket Tri-color status LEDs 0C - + 40C ambient op temp -40C - + 70C storage temperature 95% RH non-condensing MTBF: 249k @ 45c |
| Certifications | WiFi Alliance 80211a/b/g/n/ac, PP2.0 in process FCC, ETSI, CE, EN 60601-1-2, IEC60950 |
| Fast Roaming | 802.11r, OKC, Enhanced roaming |
| Mesh | Multi-hop, either band |
| Channel Selection | autoTune: Manual, or automatic Selectable off-channel scan |
| Auto Tx Power | AutoRF: controller-less transmit power |
| Network | NAT, NAT logging firewall, DHCP server L2, L3 or DNS based access control VLAN Pooling, RADIUS attribute VID VLAN per SSID per user |
| Band Steer Load Balance | Yes |
| Tunnel | L2TP, L2oGRE, PPPoE |
| Tools | Remote Packet capture, Channel/noise/interference analyzer, auto logging, ZapD performance test tool, rogue AP detection |
| Services | NTP, Syslog, SNMP traps, DNS proxy, auto-off on WAN failure |
| API | RESTful management and statistics API Presence location APIs |
