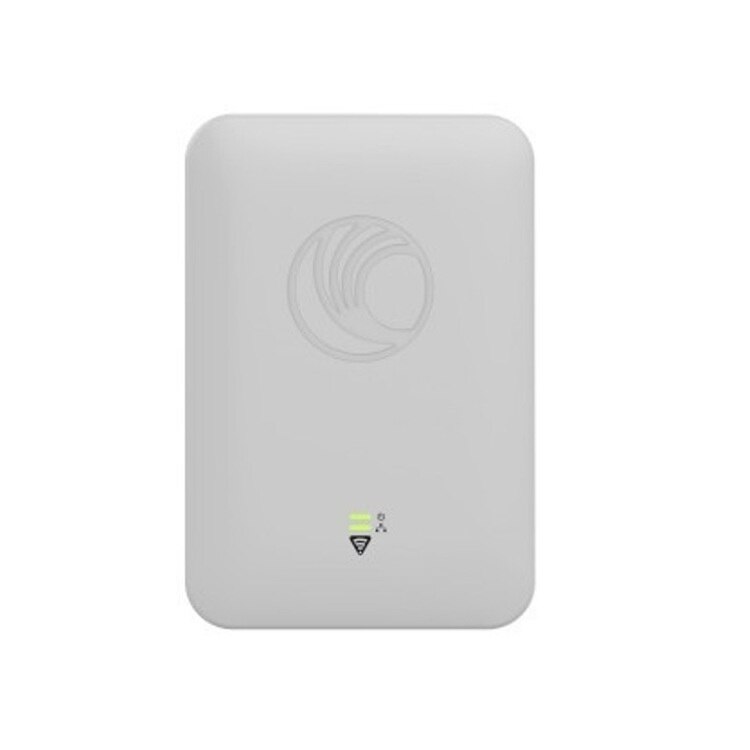

Cambium cnPilot e510 Outdoor (FCC) 802.11ac wave 2, 2x2, 8 dBi, WLAN AP

  • SKU: PL-E510X00A-US
  • Manufacturer: Cambium Networks
  • Data Sheet: Download
  • Availability: 7 In Stock    (updated live)
    7 In stock at College Station
US$‎616.32

Cambium Networks PL-E510X00A-US

cnPilot e510 Outdoor (FCC) 802.11ac wave 2, 2x2, 8 dBi, WLAN AP

cnPilot e510 Outdoor Omni Gigabit IP67 802.11ac Wave 2 Outdoor Access Point

Enterprise grade 802.11 Wi-Fi access in outdoor high-density networks. Ideal for 360 degree coverage in Public Wi-Fi, Hospitality, Education campus, Industrial and Enterprise.

ENTERPRISE GRADE WI-FI

Part of the cnPilot family of Enterprise grade 802.11 access points, the e510 is RF aware and self-optimizing for the RF environment. Ideal for deploying Outdoor Wi-Fi as a public access service, or part of an extended enterprise network providing seamless roaming from indoor to outdoor without requiring controller interaction. Integrated troubleshooting tools provide remote access for packet capture, client statistics, operational and RF statistics, and RF scanning for interference, channel utilization, and noise floor scan.

ENTERPRISE GRADE MESH

E510 features multi-hop MESH that puts flexibility into the hands of the network admin. Select the band to use for MESH (either 2.4 GHz or 5 Ghz); and set whether clients can access the network on one or both bands. Auto-MESH discovers a Cambium MESH link with policy based secure access. Once adopted, cnMaestro provides the correct policy based provisioning rules for the access point.

EXTENDED ENVIRONMENTAL SUPPORT

The e510 is shock and vibration certified when used with the rail mounting system. Ideal for industrial applications and manufacturing. Integrated cold start heater ensure operation in harsh environments.

cnMAESTRO[tm] SINGLE PANE OF GLASS

All Cambium Networks enterprise 802.11 and broadband point to point and point to multi-point access points are supported by the cnMaestro controller.


HIGH PERFORMANCE, OUTDOOR AP

  • Quad core CPU
  • 802.11ac Wave 2, multi-user MIMO, beam steering, VHT rates, airtime fairness
  • 360 degree antenna coverage
  • UV rated IP67 enclosure
  • Shock and Vibration certified
  • Operating temp: -40C - +65C
  • Cold start heater
  • Extended ESD and surge protection
  • Industrial grade components
  • LTE filter for unimpeded operation
  • Light weight - less than 1100g

Shipping Information:

Dimensions (W x H x L)10.5cm X 5cm X 13cm
Weight3.54 lbs

Specifications PL-E510X00A-US

ACCESS POINT SPECIFICATIONS
Max Phy Rate 2.4 GHz radio: 400 Mbps 5 GHz radio: 867 Mbps
Ethernet Ports One IEEE Gigabit Ethernet auto sensing
Antenna Integrated dual polarized, omni direction 8dBi (2.4GHz) 9dBi (5GHz)
Max EIRP 2.4 GHz: 32 dBm 5 GHz: 34.5 dBm EIRP may be limited by individual country regulation
WLAN AND NETWORK SPECIFICATIONS
Controller modes Controller-less standalone AutoPilot heterogeneous network Cloud managed cnMaestro On-premises cnMaestro VM
WLAN 256 clients, 16 SSIDs WPA-TKIP, WPA2 AES, 802.1x 802.11w PMF WPA2 (802.11i), WPA2 Enterprise (802.1x/EAP), WPA PSK, Open
Captive Portal Hosted on cnMaestro Controller On-AP hosted guest portal Redirect to HTTP/RADIUS Server DNS logging
Authentication Hotspot 2.0/Passpoint 2.0 802.1x EAP-SIM/AKA, EAP-PEAP, EAP-TTLS, EAP-TLS MAC authentication to local database or external RADIUS
Accounting RADIUS accounting, multiple AAA
Scheduled SSID On/off by day, week, time of day
Guest Access Vouchers, Rate Limit, Splash page hosted on AP or cnMaestro Client isolation per SSID, per network
Data Limit Client rate limit per SSID
QoS WMM
Power 802.3af or 802.3at Powered Device Max 12.95w (802.3af)
Physical Environmental IP67 rated housing Wind Resistance 224 kph 320mm x 215mm x 65mm 1100g Kensington lock slot Two multi-color status LEDs -40C - + 65C ambient op temp -40C - + 70C storage temperature 95% RH non-condensing Overvoltage protection, category 1
LTE Filter LTE bands 38, 40
Certifications WiFi Alliance 80211a/b/g/n/ac, Passpoint 2.0 FCC, ETSI, CE, EN 60601-1-2, IEC60950, EN50121-1 Railway EMC EN50121-4 Railway Immunity IEC 61373 Railway Shock & Vibration
Fast Roaming 802.11r, OKC, Enhanced roaming
Mesh Multi-hop, either band
Channel Selection autoTune: Manual, or automatic Selectable off-channel scan
Automatic Tx Power AutoRF: controller-less transmit power
Network NAT, NAT logging firewall, DHCP server L2, L3 or DNS based access control VLAN Pooling, RADIUS attribute VID VLAN per SSID per user
Band Steer Load Balance Yes
Tunnel L2TP, L2oGRE, PPPoE
Tools Remote Packet capture, Channel/noise/interference analyzer, auto logging, ZapD performance test tool, rogue AP detection
Services NTP, Syslog, SNMP traps, DNS proxy, auto-off on WAN failure
APIs RESTful management and statistics API Presence location APIs
