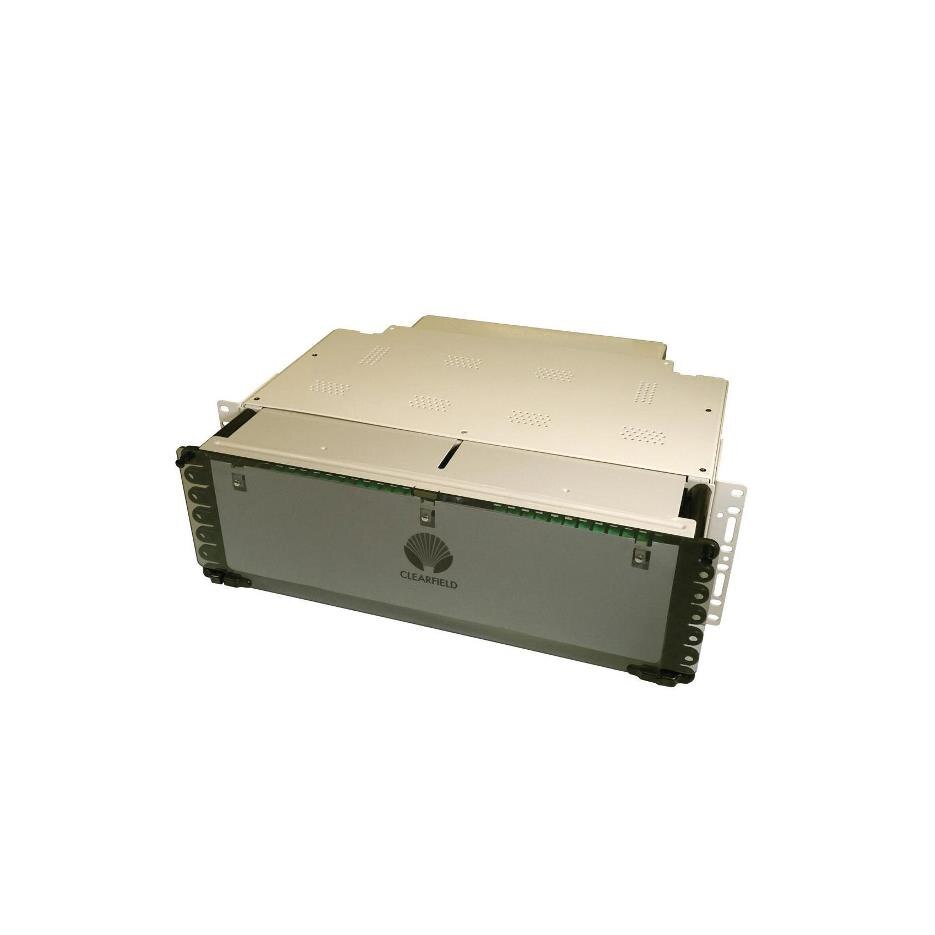

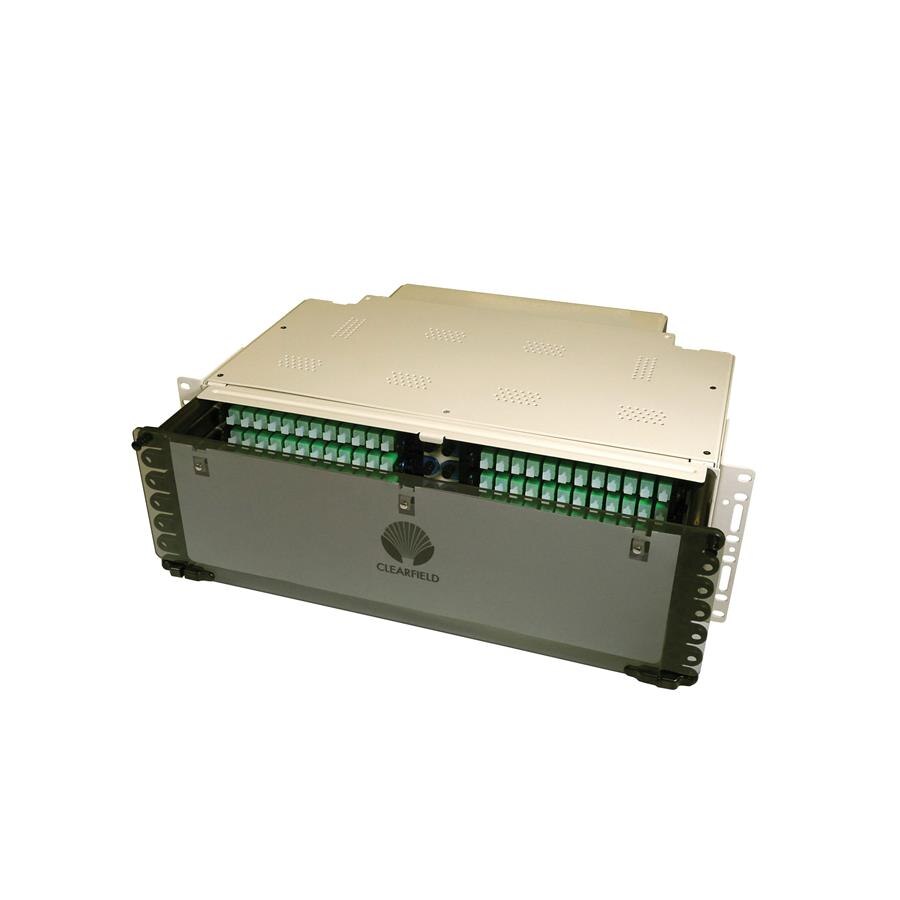

Clearfield FxMP Fiber Patch Panel, 12 -Port, SC/APC Front Connector, Aluminum/Steel, Front and Rear Protection. Rear Cover Included

Clearfield, Inc G-JBB-012-C1F-BZZ

FxMP Panel, Loose Tube Patch and Splice, 1.75 Inch/2 Cass. Cap. Chassis , Almond, 4.77 Inch Rods, 12 Ports Loaded into 1 Singlemode SC/APC Clearview Blue Cassette(S). Front and Rear Protection. Rear Cover Included

Designed to streamline, simplify and reduce the operational costs of deploying fiber, Clearfield's FieldSmart FxMP fiber patch panel delivers a universal deployment option, making it easier to order, train field staff and support the rapidly growing market for fiber services. This universal panel enables fiber deployments of 1RU (24 ports) up to 11 in (288 ports). Like all other FieldSmart products, the FxMP fiber patch panel utilizes the Clearview® cassette as its 12 port building block. It provides an interconnect or cross connect environment for up to 288 SC ports or 576 LC ports of high density fiber for inside plant environments and outside FDH deployments. The FxMP fiber patch panel is RUS listed and designed to comply with Telcordia GR-63, GR-1089, GR-449, GR-20 and GR-409.

Features:

• Panels are designed, tested and certified to Telcordia GR-63 and GR-1089 NEBS Level 3
• Fiber cable is certified to Telcordia GR-20 and GR-409
• Terminations designed, tested and certified to Telcordia GR-326
• Supports all industry standard single mode and multimode connectors
• Front cover is easily removable and installation of cassettes is simple with no tools needed
• Individual radius fingers provide organized and intuitively managed fiber jumpers and minimize pile-up
• Slide rails for cassettes provides a stable attachment utilizing the cassette T-rail and are incorporated into the rear protection of panels
• Pre-terminated OSP buffer tubes are protected by bend-limited tubing and have their slack stored inside panel to protect against environmental and human damage
• The top metal protective cover slides out for top protection over the fiber cables and can sit in 3 positions, closed, open 3-1/4 in (82.55 mm) and open 4.77 in (121.16 mm)
• Front access to pre-terminated assemblies with removable adapter plates for testing, cleaning and maintenance
• The entire 12 fiber Clearview cassette is removable for hot swap changes
• Front and rear access to panel
• On-frame or off-frame splicing configurations support cable constructions up to 144-fiber
• New larger designation cards provide greater writing area for standard and high density panels
• Reversible mounting ears provide added flexibility
• Using the Clearview cassette, all fibers are deployed in increments of 12, allowing users to scale from 12 ports to full configuration without additional equipment
