Compex 802.11ac 5Ghz miniPCIe Radio Card
- SKU: WLE600V5-18
$31.00
- Manufacturer: Compex
- Data Sheet: Download
Product Information

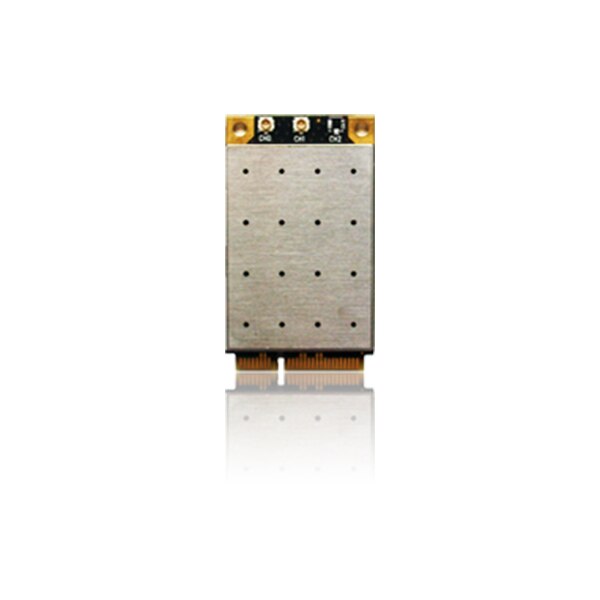

Compex WLE600V5-18 802.11ac 5GHz miniPCIe Radio Solution
The WLE600V5-18 is a IEEE 802.11a/c wireless adapter that operates in 5.0 GHz bands, available in PCIe mini card form factor. Featuring QCA9882 chipset, the WLE600V5-18 dramatically increases the overall throughput up to 867Mbps with 2x2 MIMO technique. Leveraging the revolutionary 11ac technology, WLE600V5-18 sets a new benchmark in throughput and range, making it ideal for consumer and enterprise applications, such as video, voice and data transmission. The WLE600V5-18 is backward compatible with 802.11a/n and fully supports industry standards compliant security.
Specifications
Specifications WLE600V5-18
| WLE600V5-18 | |
| Chipset | QCA9882 |
| Host Interface | PCI-Express 1.1 Standard |
| Operating Voltage | 3.3 VDC |
| Power Consumption | 5W |
| Antenna Connector | 2 x U.FL |
| Frequency Range | 5.150 ~ 5.875 GHz |
| Modulation Techniques | OFDM: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM |
| RoHS Compliance | Yes |
| Temperature Range | Operating: -20ºC to 70ºC; Storage: -40ºC to 90ºC |
| Humidity | Operating:5% to 95% (non-condensing) Storage: Max.90% (non-condensing) |
| Dimensions (mm) | 50.95 x 30 x 3.2 (H x W x D) |
