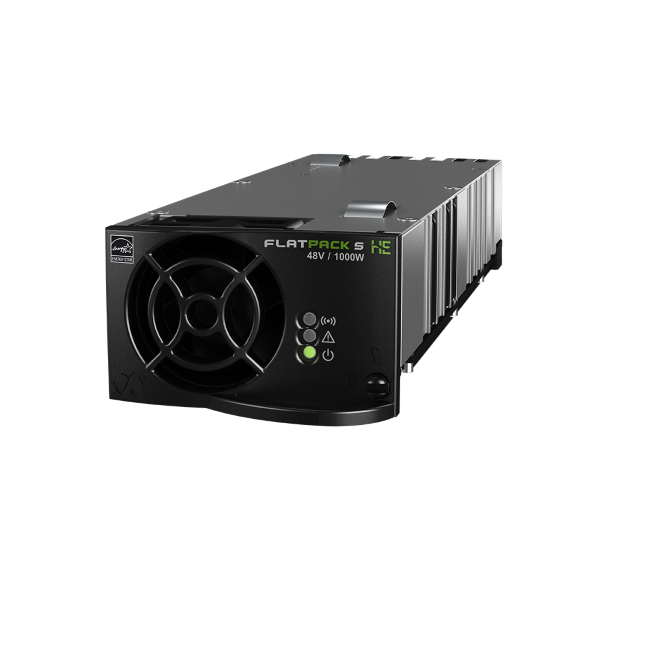

Eltek Flatpack S He Rectifier 1000W 48V, 85-300 VAC Input Range
- SKU: 241122.105
$486.60
- Manufacturer: Eltek
- Data Sheet: Download
Product Information
Eltek 241122.105
Flatpack S He Rectifier 1000W 48V, 85-300 VAC Input Range
Rectifier Module, 5.9 (Input) A, 57.6 (Output) A, 72 x 41.5 x 217 mm, 20.9 to 43.5 V dc, 43.5 V dc, 85 to 250 V dc
The flatpack S rectifiers incorporate telecom specifications, high efficiency, O-ring protection on output and high power in a small, 217 mm deep box. Used in the 1U high, 2 or 3 rectifier positions power rack with smartpack S controller and battery and load distributions, the flatpack S rectifiers cover 2 to 5.4kW applications using a minimum of space, less than 6L and low heat dissipation.
Specifications
Specifications 241122.105
| Nominal Input | 185-270Vac Or 185-250Vdc |
| Output | 1000W |
| Max Ac Input Current | 5.9A |
| Input Range | 85-300Vac Or 85-250Vdc |
| Output Power | Linearly Derates From 1000W @185Vac To 420W @ 85Vac |
| Ouptut | 48V (43.5-57.6Vdc), 1000W |
| Max. Output Current | 20.9A @ 48Vdc |
| Efficiency | 95.5%; >95% @ 40-100% Load; Fan Cooled (Front To Back) |
| Operating Temperature | -40 To +85°C |
| Output Power | Derates Linearly From 1000W @ 45°C To 600W @ 85°C. Shutdown Over 85°C. |
| Weight | 1.9 lbs |
