Grandstream 2x2 802.11ax Wi-Fi 6 Dual-Band Router
- SKU: GWN7062
- Manufacturer: Grandstream
- Data Sheet: Download
Product Information

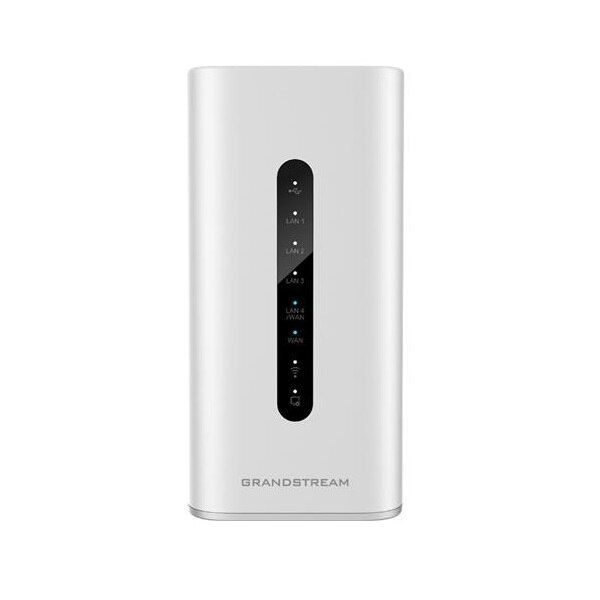

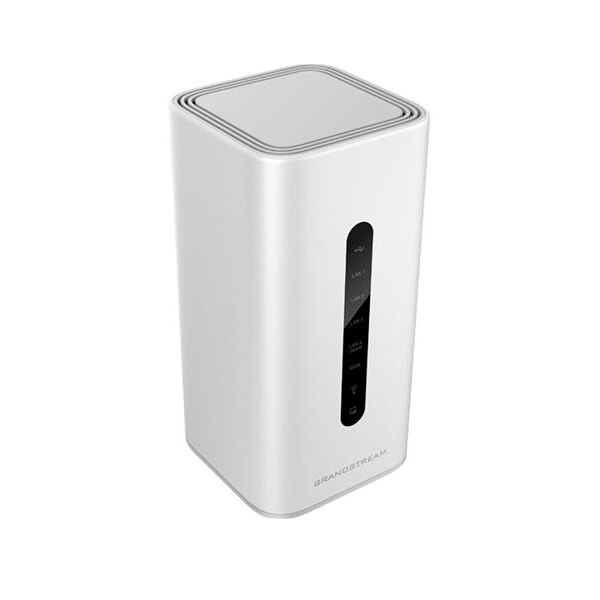

Grandstream GWN7062
2x2 802.11ax Wi-Fi 6 Dual-Band Router
The GWN7062 is a secure dual-band router powered by the latest Wi-Fi 6 (802.11ax) technology. Ideal for small offices, home offices and remote workers, the GWN7062 provides dual-band 2×2 MU-MIMO with DL/UL OFDMA technology and supports wireless Mesh networking and wired AP connections. It features a powerful 64-bit 1.2Ghz quad-core processor to provide blazing-fast Wi-Fi speeds up to 1.8 Gbps with 4-times increased data capacity to 64 devices, allowing the GWN7062 to power smart office and home automation, smooth 4K Ultra HD streaming, web meetings, video conferences, online gaming and more. It supports VPN to allow remote employees to securely connect to the corporate network from home or branch offices. The GWN7062 also provides enterprise-grade security features to ensure secure Wi-Fi and VPN access, including unique security certificates and random default passwords. By combining accelerated Wi-Fi speeds, mesh networking and wired AP connections with advanced features including VPN, beamforming technology and intelligent QoS, the GWN7062 is the ideal router for a growing home network.
Features:
- Powered by Wi-Fi 6 (802.11ax) standard with up to 1.77Gbps wireless throughput
- Dual-band 2x2:2 MU-MIMO with DL/UL OFDMA technology
- Built-in VPN support allows easy access to corporate networks for remote employees
- Supports 256 concurrent Wi-Fi client devices
- Supports Mesh networking with Grandstream access points to provide easy network expansion
- Powerful security features include guest network, network blacklist, Antihacking secure boot & critical data/control lockdown via digital signatures, and more
- Rich firewall features including Anti-DoS, traffic rules, NAT and ALG
Specifications
Specifications GWN7062
| Wi-Fi Standards | IEEE 802.11 a/b/g/n/ac/ax |
| Antennas | 4 dual-band high-performance internal antennas |
| Wi-Fi Data Rates | 5G: IEEE 802.11ax: 7.3 Mbps to 1202 Mbps 2.4G: IEEE 802.11ax: 7.3 Mbps to 573.5 Mbps Backwards compatible with 802.11a/b/g/n/ac Wi-Fi *Actual throughput may vary depending on many factors including environmental conditions, distance between devices, radio interference in the operating environment and mix of devices in the network |
| Channel Bandwidth | 2.4G: 20 and 40 MHz 5G: 20,40 and 80 MHz |
| Wi-Fi and System Security | WPA&WPA2, WPA2&WPA3, WPA3, VPN, Anti-hacking secure boot and critical data/control lockdown via digital signatures, unique security certificate and random default password per device, configurable automatic software update |
| Network Security | Guest network, network blacklist, parental control, VPN support for PC & Mac |
| MIMO | 2x2:2 2.4GHz 2x2:2 5GHz |
| Coverage Range | Up to 175 meters *coverage range can vary based on environment |
| Maximum TX Power | 2.4G: 27dBm 5G: 26dBm *Maximum power varies by country, frequency band and MCS rate |
| MESH & AP Management | Supports up to 8 Mesh nodes and APs |
| SSIDs | 2 SSIDs total, 1 per radio (2.4ghz and 5 ghz) |
| Concurrent Clients | 64 concurrent clients |

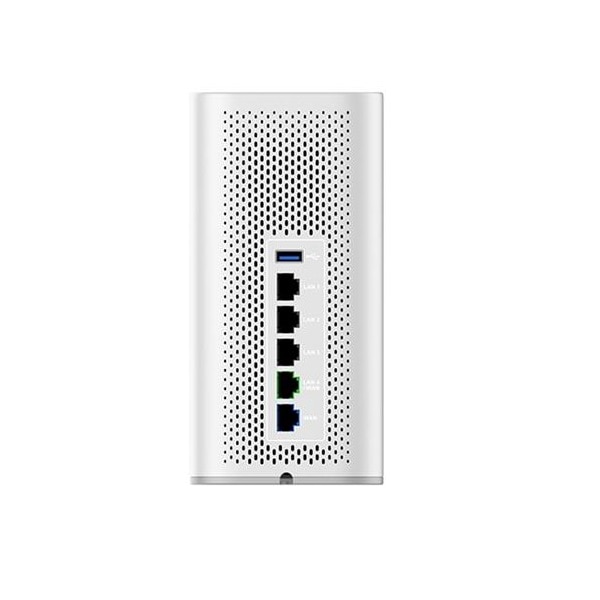

| Network Interfaces | 5x autosensing 10/100/1000Mbps Gigabit Ethernet ports, including 2x WAN + 3x LAN |
| Auxiliary Ports & Controls | 1x USB 3.0 port, 1x Reset Pinhole, 1x Sync button, On/Off LED indicator switch |
| Embedded Controller | Manage up to 8 Mesh nodes and APs |
| Mounting | Indoor wall mount or ceiling mount, kits included |
| VPN | Yes |
| Network Protocols | IPv4, IPv6, 802.1Q, 802.1p, 802.1x, 802.11e/WMM |
| Intelligent QoS | Intelligent QoS prioritizes Internet traffic by application and devices for smooth streaming |
| Smart Connect | Actively selects the fastest Wi-Fi band for every device connection |
| Network Management | Embedded controller can manage up to 8 Mesh nodes and APs (access from web user interface) GWN router app (pending) offers a local & remote management platform for unlimited GWN routers |
| Local System Requirements | Microsoft Windows 7, 8, 10, Mac OS, UNIX, Linux, Microsoft Edge 45+, Google Chrome 65+, Firefox 65+, Safari 10+ |
| GWN Router App (pending) | Free app for GWN router setup, remote and local management; available for Android and iOS - Remote Management - Easily monitor your network anytime, anywhere - Internet Speed Test – Check the broadband speeds from your service provider - Pause Internet – Pause the Internet to any device(s) - Traffic Meter – Track Internet data usage - Guest Networks – Set up separate Wi-Fi access for guests - Quick Setup – Get connected in minutes and have the app walk you through setup |
| Processor & Memory | 64-bit 1.2GHz quad-core processor ensures smooth streaming up to 4K UHD; 256 MB memory |
| OFDMA Technology | Uplink & Downlink OFDMA for Improved capacity and efficiency |
| Readyshare USB Access | Wirelessly access and share a USB hard drive connected to the GWN7062 via USB port |
| Beamforming Technology | Beamforming+ propvides improved range and performance for both 2.4Ghz and 5GHz devices |
| BSS Coloring Technology | Detects and eliminate interference from nearby Wi-Fi networks to optimize signal streght for all devices |
| Environmental | TBD |
| Physical | Unit Dimension: 95mm(L) x 95mm(W) x 193mm(H) 3.74" x 3.74" x 7.59" inch Entire Package Dimension: 286mm(L) x 126.5mm(W) x 105mm(H) 11.25" x 4.98" x 4.13" inch |
| Weight | 2.2 lbs |
| Package Content | GWN7062 Wi-Fi 6 Router, Ethernet Cable, Power adapter, Quick Installation Guide |
| Compliance | FCC, CE, RCM, IC |
