  • Grandstream IP phone, 1 SIP account, 2 line keys, 3-way conferencing

Grandstream IP phone, 1 SIP account, 2 line keys, 3-way conferencing

(0)No Reviews yet
  • SKU: GXP1610
  • Manufacturer: Grandstream
  • Data Sheet:Download

Out of Stock

312 in stock
Austin TX
312 In stock

Product Information

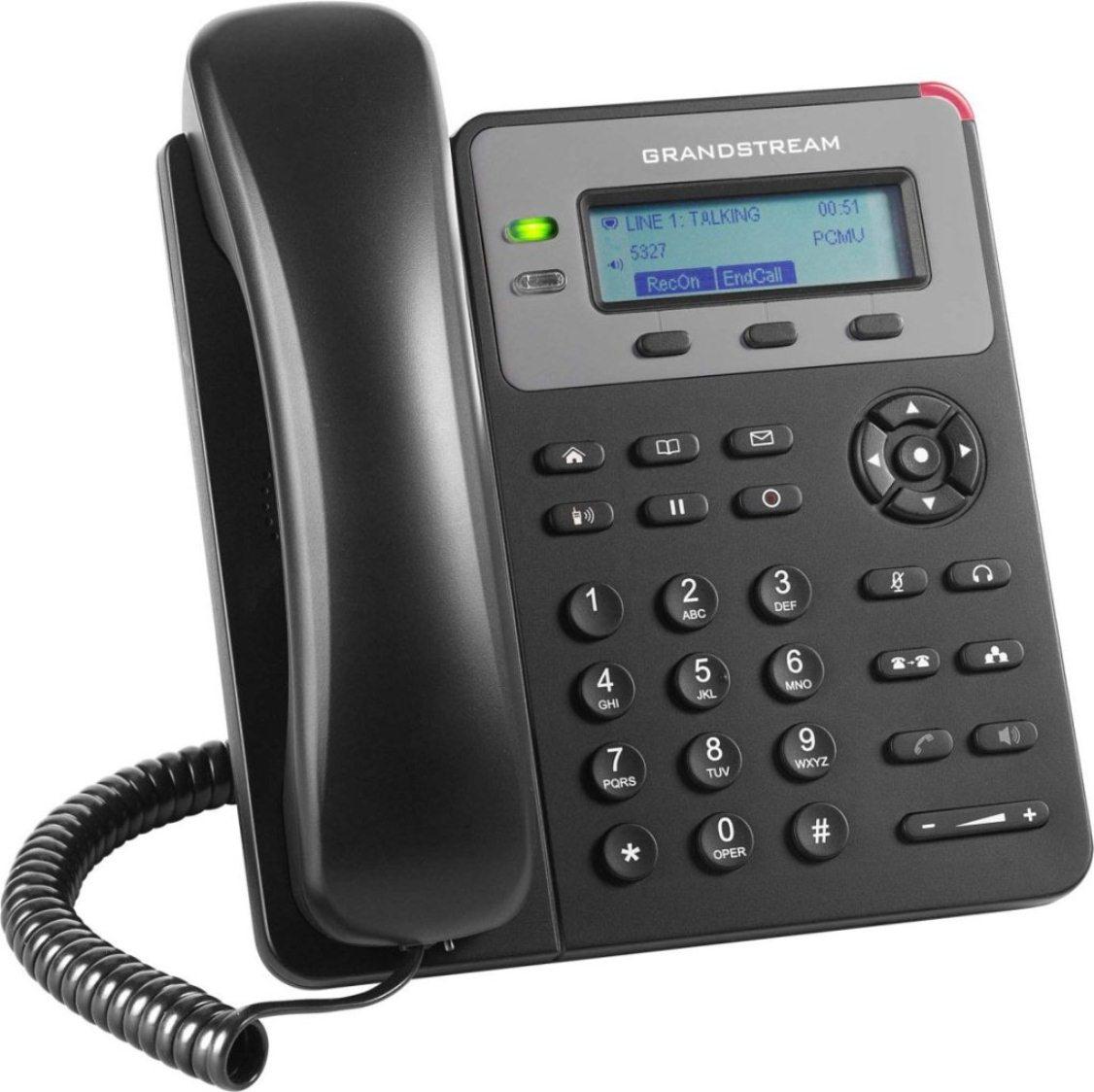

Grandstream GXP1610

A Basic IP phone, the GXP1610 delivers a user-friendly VoIP calling experience in a very easy-to-use IP phone. The GXP1610 offers support for 1 line, 2 call appearances and includes 3-way voice conferencing to maximize productivity. Additional features include integrated PoE (on GXP1615 only) a 132x48 LCD screen for easy viewing, 3 XML programmable soft keys for customization, 10/100 mbps ports and EHS support for Plantronics headsets and multi-language support. These features allow the GXP1610 to be a high-quality Basic IP phone that is simple and easy-to-use.

As all Grandstream IP phones do, the GXP1610 features state-of-the-art security encryption technology (SRTP and TLS). The GXP1610 supports a variety of automated provisioning options, including zero-configuration with Grandstream’s UCM series IP PBXs, encrypted XML files and TR-069, to make mass deployment extremely easy.

Specifications

Specifications GXP1610

Protocols/StandardsSIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP/RARP, ICMP, DNS (A record, SRV, NAPTR), DHCP, PPPoE, SSH, TFTP, NTP, STUN, SIMPLE, LLDPMED, LDAP, TR-069, 802.1x, TLS, SRTP
Network InterfacesDual switched auto-sensing 10/100 Mbps Ethernet ports, integrated PoE (GXP1615 only)
Graphic Display132 x 48 LCD display
Feature Keys2 line keys with dual-color LED and 1 SIP account, 3 XML programmable context sensitive soft keys, 5 (navigation, menu) keys. 13 dedicated function keys for PAGE/INTERCOM, PHONEBOOK, MESSAGE, HOME, HOLD, RECORD, MUTE, HEADSET, TRANSFER, CONFERENCE, SEND and REDIAL, SPEAKERPHONE, VOLUME
Voice CodecsSupport for G.711µ/a, G.722 (wide-band), G.723,G.726-32, G.729 A/B, iLBC , in-band and out-of-band DTMF (In audio, RFC2833, SIP INFO)
Telephony FeaturesHold, transfer, forward (unconditional/no-answer/busy), 3-way conferen- cing, call park/pickup, downloadable phone book (XML, LDAP, up to 500 items), call waiting, call history (up to 200 records), off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones, server redundancy & fail-over
Headset JackRJ9 headset jack (allowing EHS with Plantronics headsets)

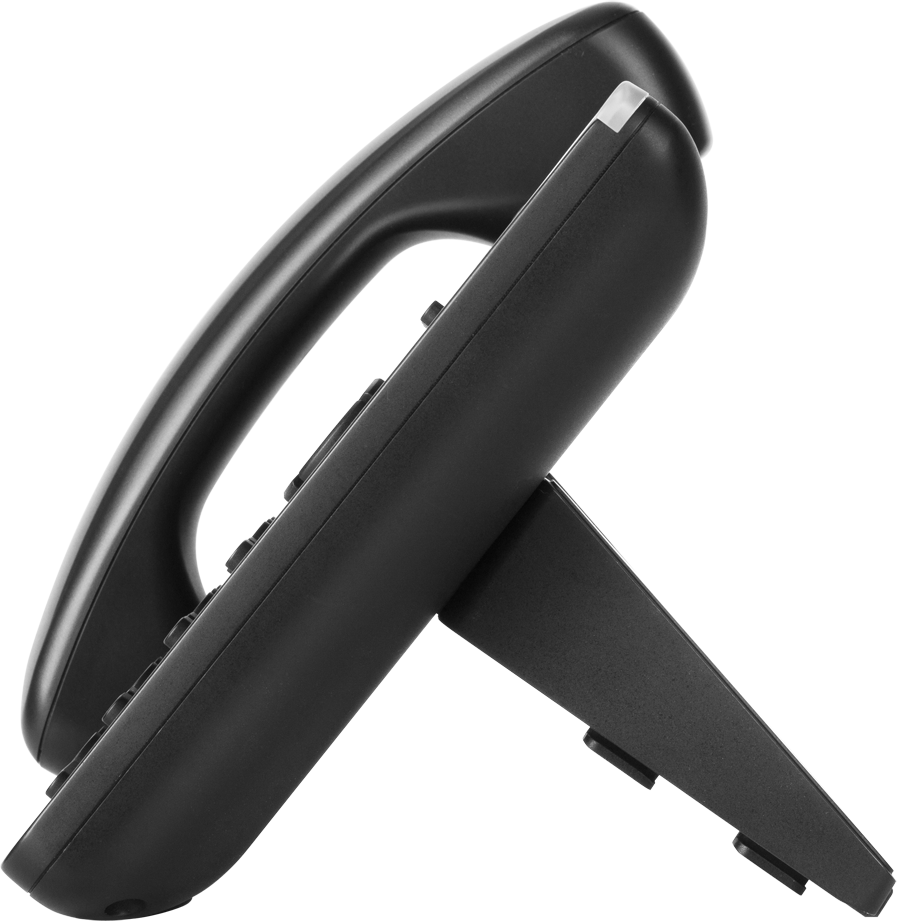

Base StandYes, 2 angled positions available, wall mountable
Wall MountableYes
QoSLayer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS
SecurityUser and administrator level access control, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, TLS, SRTP, HTTPS, 802.1x media access control
Upgrade/ProvisioningFirmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR- 069 or AES encrypted XML configuration file
Power & Green Energy EfficiencyUniversal Power Supply Input 100-240VAC 50-60Hz; Output +5VDC, 600mA
PhysicalDimension: 209mm (L) x 184.5mm (W) x 76.2mm (H) (with handset) Unit weight: 0.74kg; Package weight: 1.1kg
Multi-languageEnglish, German, Italian, French, Spanish, Portuguese, Russian, Croatian, simplified and traditional Chinese, Korean, Japanese and more
Temperature and HumidityOperation: 0°C to 40°C, Storage: -10°C to 60°C , Humidity: 10% to 90% Non-condensing
