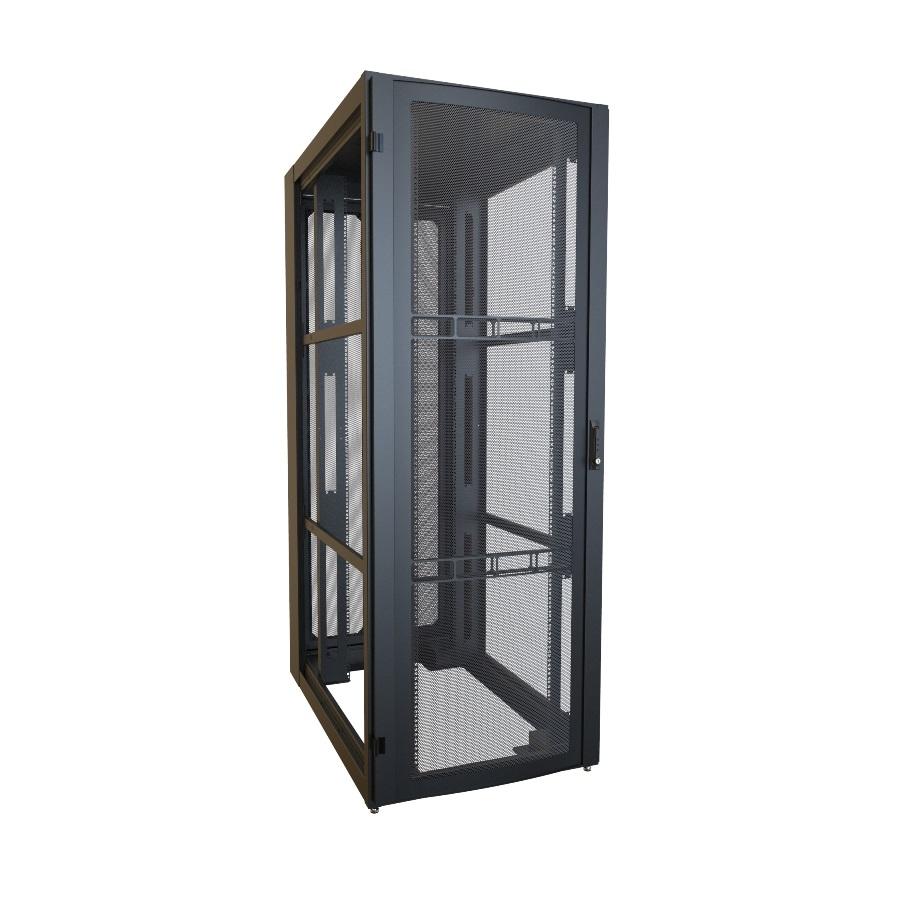

Hammond Server Cabinet H1 Series (45U Black)

Hammond H13145U48BK

Server Cabinet H1 Series (45U Black)

The H1 series is designed to be your most complete offering for Server, Network, and Data Storage applications. This series incorporates Hammond Manufacturing’s practical open-design and manufacturing principles with legendary service, support, and reliability. H1 cabinets feature an array of enhancements over traditional cabinets, with cooling performance and enhanced security features demanded by today's IT manager.

Available in 42U, 45U, 48U, and 52U mounting heights.

24” Width Frame Features:

• Generous cabling space
• The cabinet top includes four (4) 3.5” wide cable entry holes.

30” & 31.5" Width Frame Features:

• Mounting rails in 30" and 31.5" wide frames include "Bonus" 1U space for cable passthrough, rack equipment like 1U switches, patch panels or horizontal PDUs. You can pretty much use any 1U rack accessory.
• The cabinet top includes four (4) 3.5” wide cable entry holes.
• Support for vertical cable managers without obstructing mounting rails.

Available in 42" and 48" overall depths.

Two (2) large 4" x 7" knockouts (per side) for cable pass-through.

Side panels are sold separately.

• 42U and 45U are full-height panels.
• 48U and 52U are split height panels.

48" depth cabinet includes:

• Two (2) large 4" x 7" knockouts for cable entry knockouts at the front/top.

C-channel struts provide cabinet strength, ease, and flexibility to adjust mounting rails.

Surface-mounted doors allow for full mounting depth utilization and include a 4-pin combination locking swing handle.

Features:

• The Cabinet frame is constructed in 14-gauge mild steel with 12-gauge mild steel reinforced corner brackets.
• Cabinet doors and optional side panels are constructed in 16-gauge mild steel.
• Square hole 19" mounting rails are constructed of 12-gauge mild steel, include rack unit indicators, and are powder coat finished.
• UL Listed 2416 load rated for up to 3,000 lbs (1,360 kg). Rolling caster load rated for up to 2,200 lbs (998 kg).
• Grounding studs bonded to the frame, side panels, and doors. The front and rear studs on the cabinet frame conform to PET. The lower front and rear of the cabinet include dual 10-32 bonding studs in addition to 1/4-20 collard PET terminals.
• Finished in textured RAL9005 black or RAL9003 white powder coat.
• Complies with the Greenguard guidelines for indoor air quality.
• Meets PCI DSS (Payment Card Industry Data Security Standard) compliance requirements.
• TAA-compliant for GSA Schedule purchases.
• RoHS Compliant.
• Manufactured in North America within an ISO 9001:2015 certified facility.
