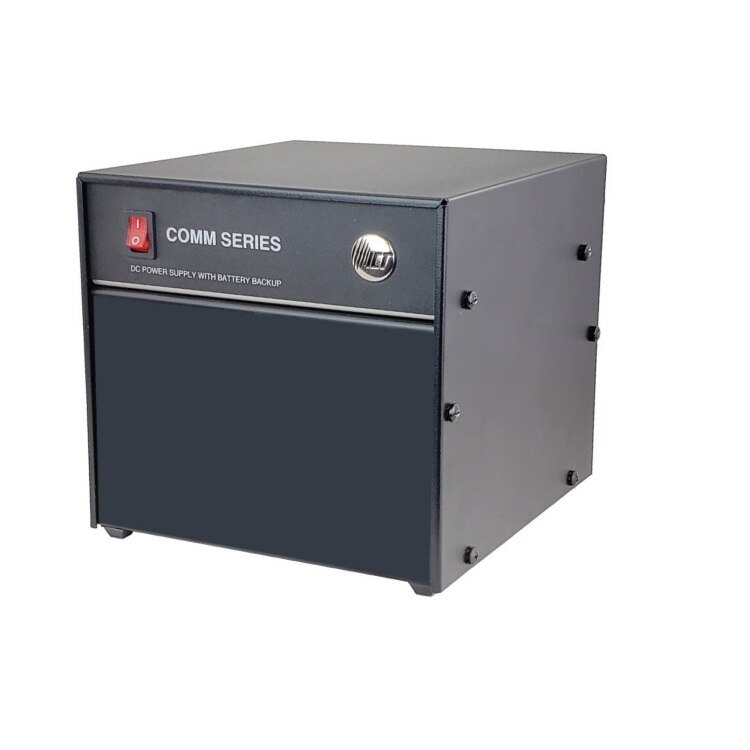

ICT 12V / 20 Amp Power Supply with 14.4Ah Battery DC UPS
- SKU: ICT12-20UPS
- Manufacturer: ICT
- Data Sheet: Download
Product Information
ICT ICT12-20UPS
12V / 20 Amp Power Supply with 14.4Ah Battery DC UPS
The new ICT Backup Series combines the highly reliable ICT12-20B DC power supply with integrated battery charging and a 14.4 Amp hour backup battery in a single integrated enclosure. This easy to install solution provides a cost effective desktop DC UPS for providing uninterrupted run-time for your mission critical land mobile radios when AC power fails.
The ICT Backup Series combines backup batteries, power supply, and enclosure, all pre-assembled into an integrated compact solution. The power supply provides DC power to the radio while charging the internal battery, then if AC fails it will automatically and seamlessly transfer the load to the battery for up to 8 hours (depending on radio model and current draw).
Features:
- Easy to install. Just connect your radio inputs and plug it in to the wall
- Zero transfer time when AC fails
- Provides several hours of backup run-time depending on your radio model and usage
- Comes with protective 20A user-accessible battery fuse
- Power supply is CSA and FCC Class B approved
Specifications
Specifications
Input Voltage Range | 115VAC |
Input Frequency | 60Hz |
Output Voltage | 13.6VDC |
Output Current (cont) | 17Amps |
Output Current (peak) | 20 Amps |
Battery Capacity | 14.4 Ah |
Battery Type | Sealed Lead Acid |
Transfer Time | Zero seconds |
Warranty (b) | 2 Years |
Power Supply Standards | CSA22.2 No. 60950-1, FCC Class B, CE, ROHS |
Weight | 15 lbs / 6.8 kg |
Dimensions | 6.7" x 7.1" x 7.9" 170 x 180 x 203 mm |
