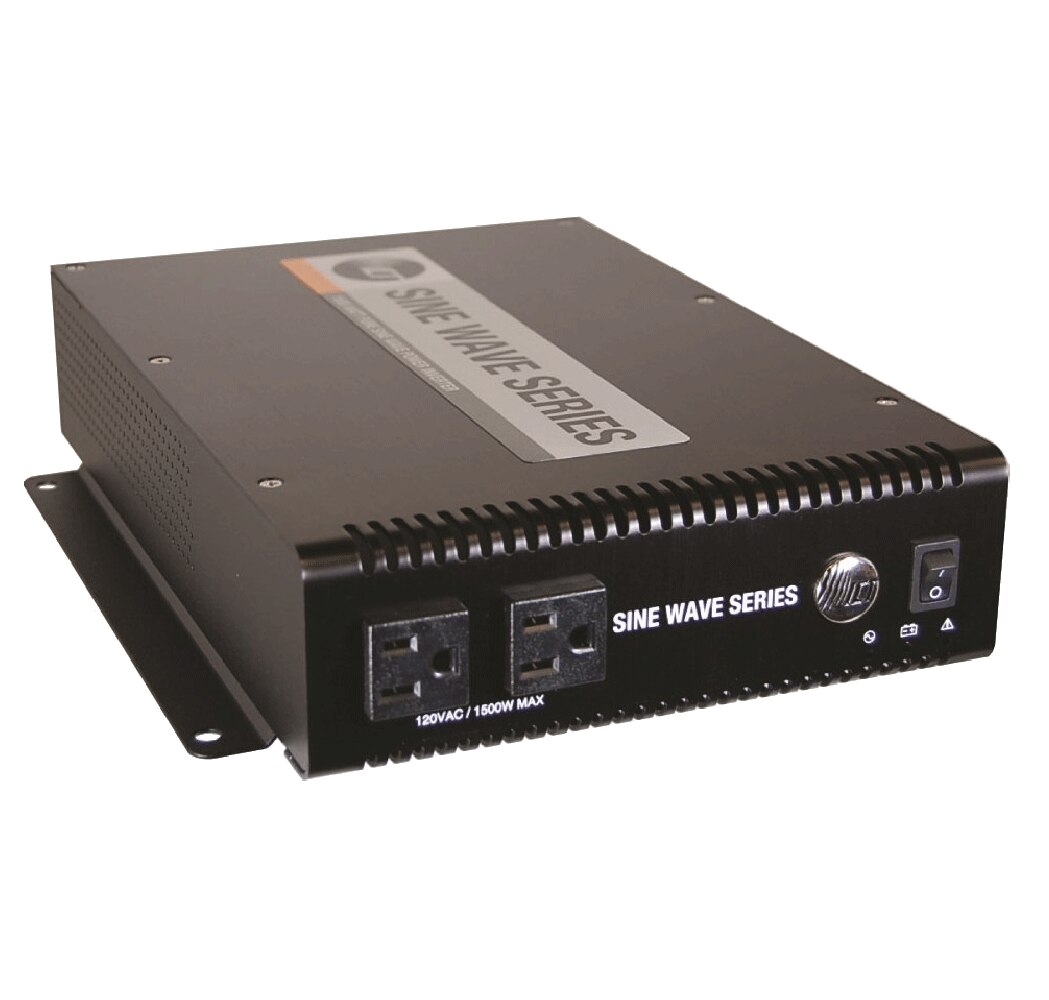

ICT 1500 Watt Inverter, 48VDC Input, 115VAC Output, Ethernet Communications & Transfer Switch
- SKU: ICT1500-48SWTC
Product Information
ICT ICT1500-48SWTC
1500 Watt Inverter, 48VDC Input, 115VAC Output, Ethernet Communications & Transfer Switch
The ICT Sine Wave Series is a pure sine wave 1500 watt inverter that converts 48, 24 or 12 volts DC to ultra-clean 115 or 230 volts AC output at 93% peak efficiency. Every Sine Wave Series model includes TCP/IP Ethernet for remote monitoring and control and a fast statis transfer switch to allow switching between the inverter and AC grid or generator power. 115 volt AC models have two NEMA 5-15 outlets on the front as well as AC output connectors on the back. 230 volt AC models have the AC output connector on the back only.
With its TCP/IP Ethernet connectivity, a user can monitor the inverter, AC and battery conditions, receive alarm notifications by email, or power-cycle the outputs to reboot connected AC loads. Access from a thin client is through a secure web connection. SNMP is also supported for integration into a network management system.
The Sine Wave Series is designed and built in North America by ICT to ensure the highest quality control and reliability.
Features:
- Automatic Overload Protection
- Resettable 15A Circuit Breaker
- Over Temperature Shutdown
- Remote Alarm Form C Contacts
Specifications
Specifications ICT1500-48SWTC
| Weight | 8.0 Lbs | 3.6 Kg |
| Frequency Range | 60Hz ±0.2Hz |
| Power | |
| Surge Power (2 seconds) | 3000 Watts |
| Continuous Output Power | 1500 Watts |
| Peak Efficiency | 93% |
| Input Voltage Range | 42.0 - 64.0VDC |
| Battery Low Shutdown | 42.0VDC |
| Switched Off Power Draw | <15 mW |
| Output Voltage Range | 115VAC ± 5VAC rms |
| Harmonic Distortion (typical) | <3% |
| Mechanical | |
| Dimensions | 12.90"L x 8.08"W x 2.56"H |
| DC Input Connectors - Rear | Bus bars, 5/16" holes |
| AC Outlets - Front | 2 x NEMA 5-15P |
| AC Outlets - Rear | Touch Safe Terminal Block |
| Remote Alarm Connectors | Terminal Block (#16 to #24 AWG) |
| Environment | |
| Operating Temperature Range | -30°C to +60°C Derate 1%/°C > 40°C. |
| Humidity | 10% - 90% RH (non-cond.) |
